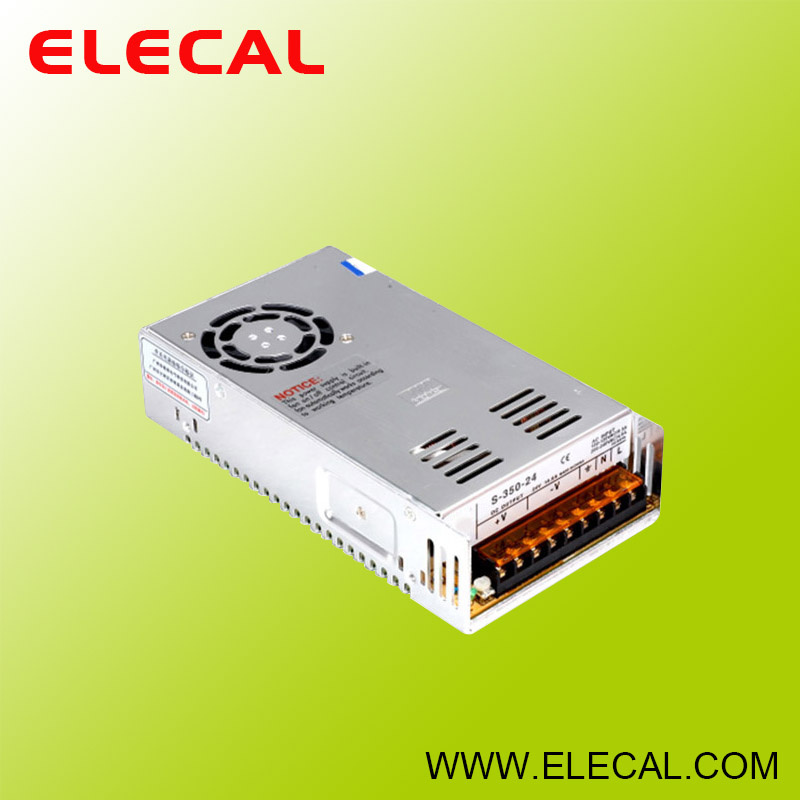

S-350 Single Output Switching Power Supply

Name: S-350 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828954655
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-350
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	250W/350W
Input Voltage:	90-132VAC 180-264VAC
Brand:	Elecal

Product Description

MODEL		S-3S0-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	13.5V	15V	24V	27V	48V
	RATED CURRENT	50A	40A	29A	2S.8A	23.2A	14.6A	13A	7.3A
	CURRENT RANGE	0-50A	0-40A	0_29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
	RATED POWER	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
	RIPPLE & NOISE (max.) Noto.2	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.6V	6-9V	10 _ 13.2V	12-15V	13.5-18V	20-26.4V	26 ~ 32V	41-56V
	VOLTAGE TOLERANCE NotoJ	±2.0%	i2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	+0.5%	+0.5%	±0,5%	+0.5%	+0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	200ms, 50ms, 20ms at full load
INPUT	VOLTAGE RANGE	90 -132VAC /180 - 264VAC by switch 254-370VDC
	FREQUENCY RANGE	47-63HZ
	EFFICIENCY (iyp.)	73%	76%	74%	79%	78%	81%	82%	83%
	AC CURRENT	6.5A/115VAC 4A/230VAC
	INRUSH CURRENT (max.)	50A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECnON	OVER LOAD	105-135% rated output power
	OVER LOAD	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	OVERVOLTAGE	5.75-6.75V l9.4-10.9V \|13.8-16.2V \|15.5~18.2V \| 18-21V \| 27.6-32,4V \| 33.7-39.2V \| 57.6-67.2V
	OVERVOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION	FAN ON/OFF CONTROL	RTH3^55*C FAN ON, ^45"C FAN OFF, ^80"C output shutdown (5-7.5V)
		RTH3-65°C FAN ON, '551 FAN OFF, -80°C oulputshutdown (12 ~ 15V)
		RTH3-7(m FAN ON, g60"C FAN OFF, output Shutdown (24-48V)
EMVIRONMEKT	WORKING TEMP.	-10 - +50°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C,10-95%RH
	TEMP. COEFFICIENT	+0.03%/^: (0-50*0
	VIBRATION	10 ~ 500Hzr 2G 10min./1 cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE	l/P-O/PM .5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
SAFETY & EMC	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC
OTHERS	MTBF	234.3Khrsmin. MILHDBK-217F (25TC)
	DIMENSION	21511550mm(LWH)
	PACKING	1.07Kg; 12pcs/13.5Kg/0.92CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC Input, rated load and 25t^ of ambient temperature. 2. Ripple & noise are measured at20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
