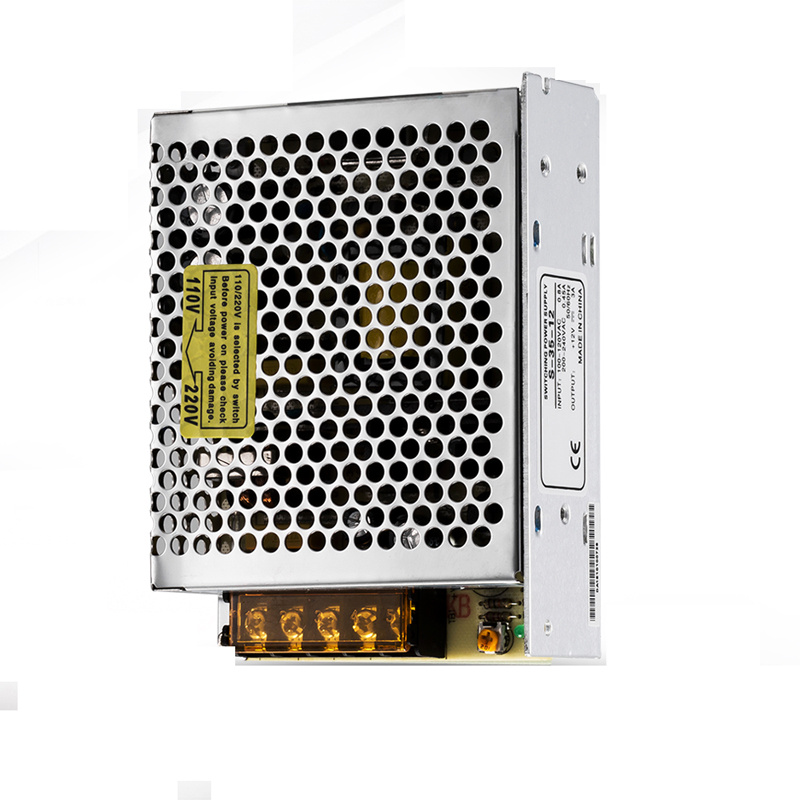

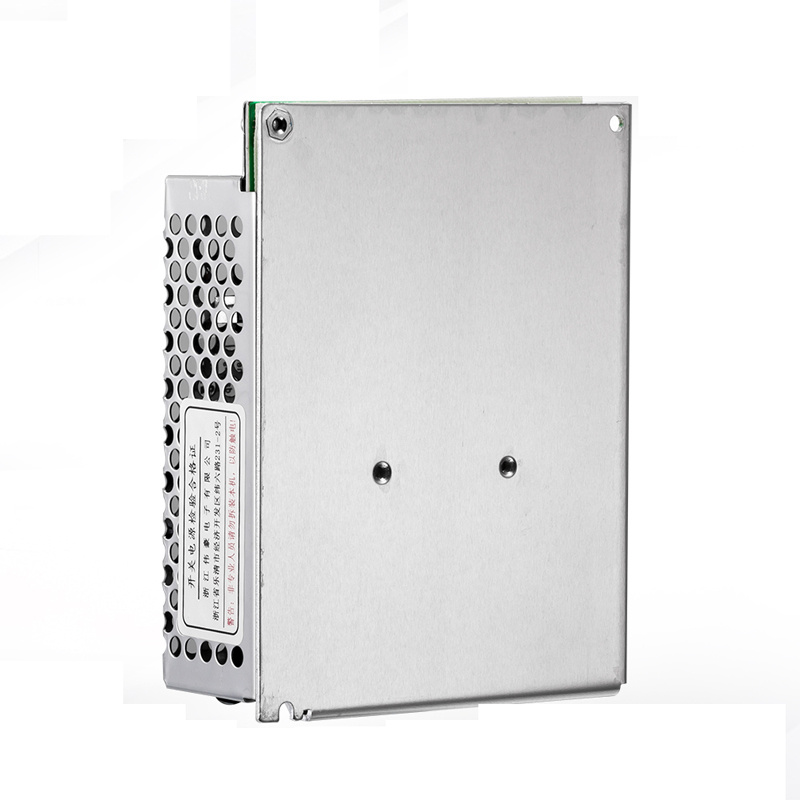

S-35W AC to DC 35W 7A 5V Switching DC Power Supply

Name: S-35W AC to DC 35W 7A 5V Switching DC Power Supply
Brand: all-electronics-online.com
SKU: 820958095
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-35W
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

S-35W ac to dc 35w 7a 5v switching dc power supply

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

MODEL		S-35-5	S-35-9	S-35-12	S-35-15	S-35-24
OUTPUT	DC VOLTAGE	5V	9V	12V	15V	24V
	VOLTAGE TOLERANCE	2%	1%	1%	1%	1%
	RATED CURRENT	7A	3.6A	3A	2.4A	1.5A
	CURRENTRANGE	0-7A	0-3.6A	0-3A	0-2.4A	0-1.5A
	RATED POWER	35W	32.4W	36W	36W	36W
	RIPPLE &NOISE(MAX)	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	DC VOLTAGEFRE QUENCY RANGE	+10,-5%	10%	10%	10%	10%
	SETUP,RISE,HOLD TIME	200ms,100ms,300ms
INPUT	VOLTAGERANGE	85~132 VAC/170~264VACselected47~63 Hz 240~370VDC
	AC CURRENT	0.8 A/115 V 0.45A/ 230 V
	EFFICIENCY	70%	72%	76%	78%	78%
	INRUSH CURRENT	Cold start 18A/115V 36A/230V
	LEAKAGE CURRENT	<2mA/240VAC
PROTECTION	OVERLOAD PROTECTION	110%~160% cutoff output. Fold back current limiting, recovers automatically
	OVER-VOLTAGE PROTECTION	..
	HIGH TEMPERATURE PROTECTON	..
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10~+60 20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20~+85 10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1 cycle,period for 60min,each alongX,Y,Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M
STANDARDS	SAFETY STANDARDS	Design refer to UL1012
STANDARDS	EMC STANDARDS	Design refer to FCC part15 J Conduction Class B
OTHERS	WEIGHT	0.41Kg
OTHERS	PACKING	30pcs/13.5Kg/0.86CUFT
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1f & 47f parallel capacitor.

WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
