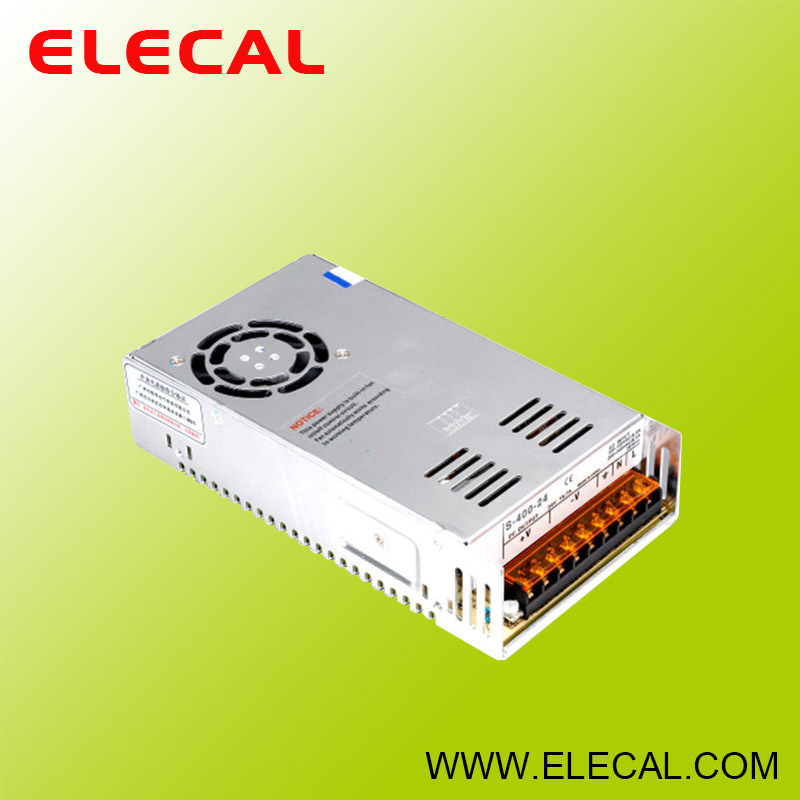

S-400 Single Output Switching Power Supply

Name: S-400 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828954925
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-400
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	300W/405W
Input Voltage:	90~132VAC 180~264VAC
Brand:	Elecal

Product Description

MODEL		S-400-5	S-400-12	S-400-15	S-400-24	S-400-36	S-400-48
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	VOLTAGE TOLERANCE	±2%	±1%	±1%	±1%	±1%±1%	±1%
	RATED CURRENT	60A	33A	27A	16.5A	11A	8.3A
	CURRENT RANGE	0~60A	0~33A	0~27A	0~16.5A	0~11A	0~8.3A
	RATED POWER	300W	396W	405W	396W	396W	398.4W
	RIPPLE & NOISE	100mvp-p	150mvp-p	150mvp-p	150mvp-p	180mvp-p	200mvp-p
	DC VOLTAGE ADJ.RANGE	-9%~+10%	±10%	±10%	±10%	±10%	±10%
INPUT	VOLTAGE RANGE	90~132VAC/180~264VAC(selected by switch), 255~373VDC
	FREQUENCY RANGE	47~63Hz
	AC CURRENT	7.5A/115VAC, 4.5A/230VAC
	EFFICIENC	78%	80%	80%	82%	82%	83%
	INRUSH CURRENT	cold start current 30A/115VAC, 60A/230VAC
	LEAKAGE CURRENT	< 3.5mA/240VAC
PROTECTION	OVERLOAD	above 105%~135% rated power
	OVERLOAD	protection type: rated current limit, auto-recovery after fault condition is removed
	OVER VOLTAGE	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
	OVER VOLTAGE	protection type: hiccup mode, auto-recovery after fault condition is removed
	OVER TEMPERATURE	≥55°Cfan on, ≤50°Cfan off, ≥85°C shutdoff O/P
	OVER TEMPERATURE	protection mode: cutoff output, auto-recovery after temperature goed down
ENVIRONMENT	WORKING TEMP,HUMIDITY	-10°C~+60°C, 20%~90%RH
	STORAGETEMP,HUMIDITY	-20°C~+85°C, 10%~95%RH non-condensing
	WITHSTAND VIBRATION	10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes
SAFETY&EMC	WITHSTAND VOLTAGE	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	ISOLATED RESISTANCE	I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
	EMC standard	meet EN55022, CLASS A
OTHERS	MTBF	234.3K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	21511550mm (LWH)
	PACKING	1.0kg/24pcs/25kg/0.049 m³/1.72CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. 3. Tolerance: includes set up tolerance, line regulation and load regulation.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
