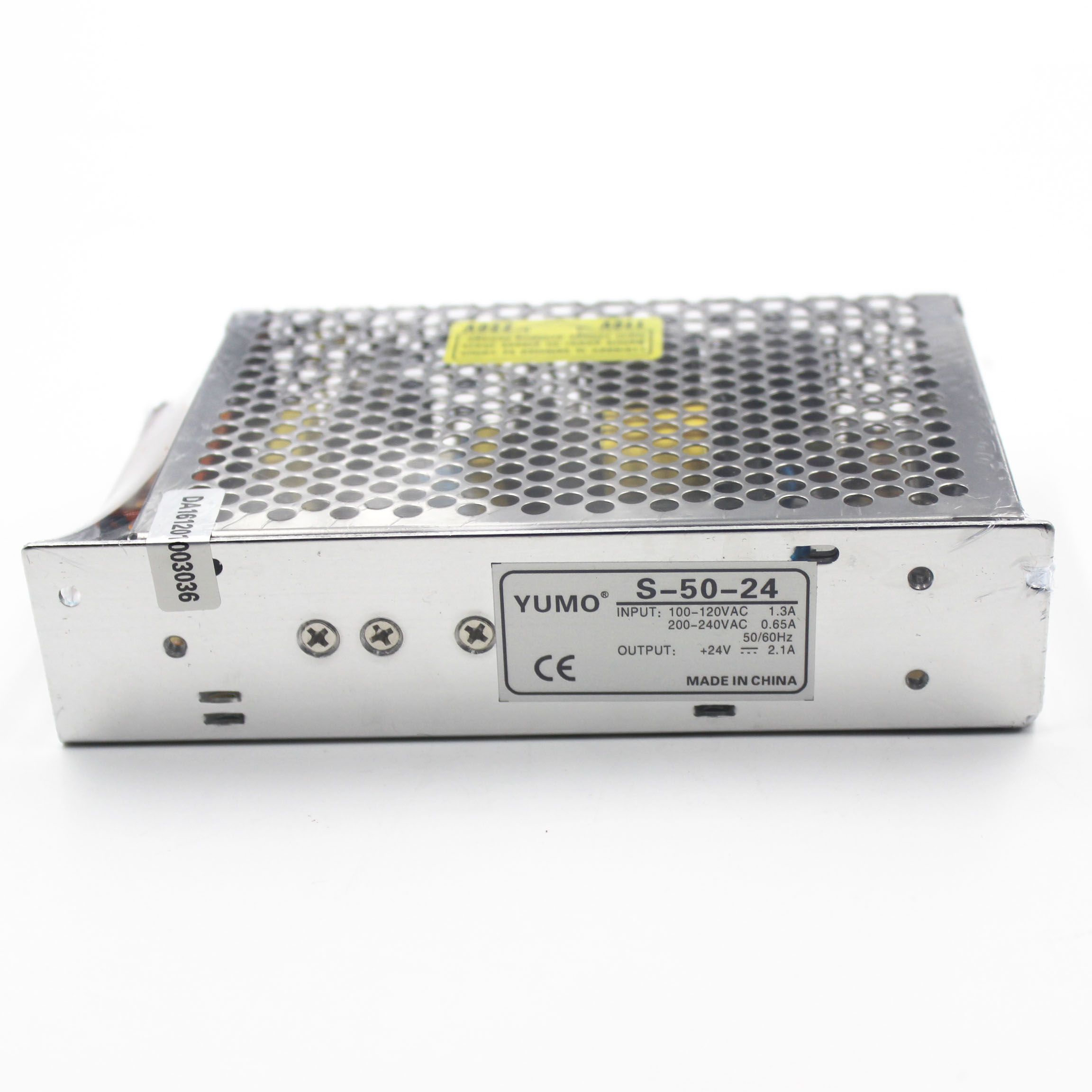

S-50-24 50W 24V Output Single Output Switching Power Supply
| Price: |
US $ 5-13/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
S-50-24 |
| DC Output Voltage,Current: |
24V, 0-8.5A |
| Adjustable Range For DC Voltage: |
±10% |
| Impact Current: |
Cold Start Current 15A/115VAC 30A/230VAC |
| Setup,Rise,Hold Up Time: |
200ms, 50ms, 20ms/230VAC at Full Load |
| Weight: |
0.5kg |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
90~132VAC / 176~264VAC |
| Modulation System: |
Switching Power Supply |
| Brand: |
Yumo |
Product Description
S-50-24 50W 24V output Single Output Switching Power Supply
• AC input range selectable by switch
• Protections: Short circuit/ Overload
• Cooling by free air convection
• 100% full load burn-in test
• Low cost, hogh reliability
• 1 year warrantyModel
Specification | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 10A | 4.2A | 3.4A | 2.1A |
| Output current rage | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A |
| Wave and noise(Note3) | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 50W | 50.4W | 50.4W | 50.4W |
| Efficiency | 71% | 78% | 78% | 82% |
| Adjustable range for DC voltage | ±10,-5% | ±10% | ±10% | ±10% |
| AC input voltage range | 85∼132VAC/170∼264VACselected by switch |
| Input current | 1.3A/115V 0.65A/230V |
| AC impulse current | Cold-start current 18A/115V 36A/230V |
| Leakage current | <0.5mA/240VAC |
| Overload protection | 105%∼150%TypeTOLDBACK Reset: auto recovery |
| Over-voltage protection | |
| High-temperature protection | |
| Temperature coefficient | ±0.03%(0∼50) |
| Setup rise hold up time | 200ms,100ms,30ms |
| Vibration | 10∼500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Withstand voltage | Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC |
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms |
| Working temperature and humidity | -10∼+60,20%∼90%RH |
| Store temperature and humidity | -20∼+85,10%∼95RH |
| Overall dimension | 159*97*38mm |
| Weight | 0.5Kgs |
| Safety standards | Meet UL1012 |
| EMC standards | |
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2311must be knocked down. |
