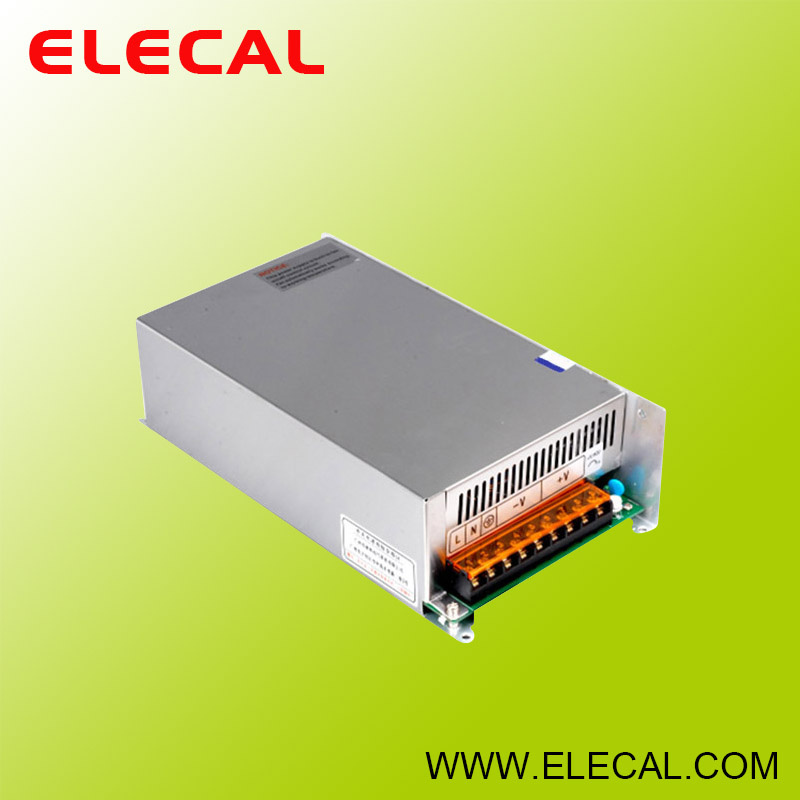

S-500 Single Output Switching Power Supply

Name: S-500 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828956285
Availability: InStock
Rating: 5 (141 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-500
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	480W
Input Voltage:	180~264VAC 254~370VDC
Brand:	Elecal

Product Description

MODEL		S-500-12	S-500-24	S-500-36	S-500-48
OUTPUT	DC VOLTAGE	12V	36 V	36 V	48V
	RATED CURRENT	40A	20A	13.4A	10A
	CURRENT RANGE	0~40A	0~20A	0~13.4A	0~10A
	RATED POWER	480W	480W	482.4W	480W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p	240mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	10-13.5V	20 ~ 26.4V	32-40V	41 ~ 56V
	VOLTAGE TOLERANCE Note.3	±1.5%	±1.0	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	+0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	1000ms,50ms/230VACatf
	HOLD UP TIME (Typ.)	20ms/230VACatf
INPUT	VOLTAGE RANGE	180~264VAC 254~370VDC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY(Typ.)	82%	86%	87%	87%
	AC CURRENT	5A/230VAC
	INRUSH CURRENT(max.)	60A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVERLOAD	105 ~ 135% rated output power
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVERVOLTAGE	13.8-16.2V \| 27.6 ~ 32.4V \|41.4~46.8V \|57.6~ 67.2V
		Protection type :Shut down O/P voltage, re-power on to recover
	OVER TEMPERATUR	RTH1 85'C Detect on case
		Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION	FAN ON/OFF CONTROL(Typ.)	RTH2^55C FAN ON,<50C FAN OFF
ENVIRONMENT	WORKING TEMP.	-20 ~ +60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20-+85°C,10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 w 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	UL60950-1 approved
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG;0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC / 25°C/ 70% RH
OTHERS	MTBF	234.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	23812465mm (LWH)
	PACKING	1.45kg/9Pcs/14kg
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Please connect positive pole of input voltage with mark uLa of terminal block, connect negative pole of input voltage with mark "NH of terminal block, using DC voltage for input voltage.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
