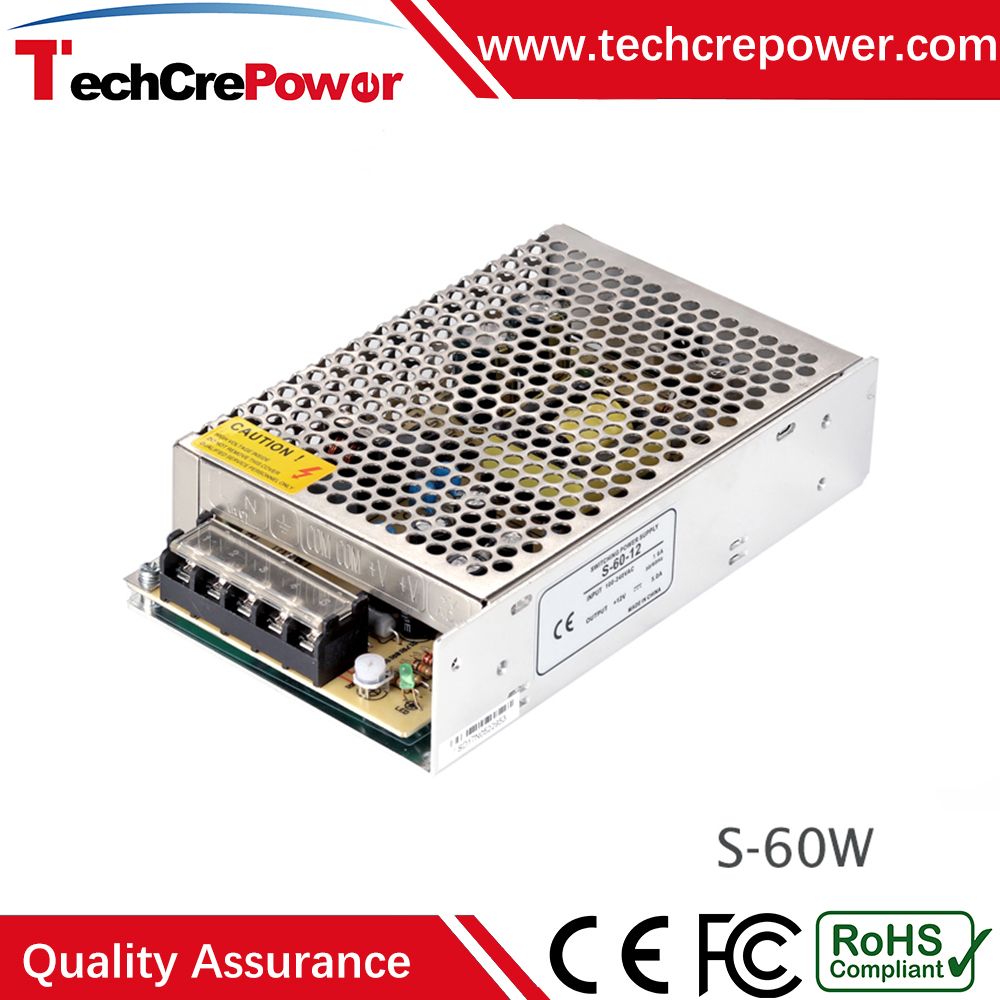

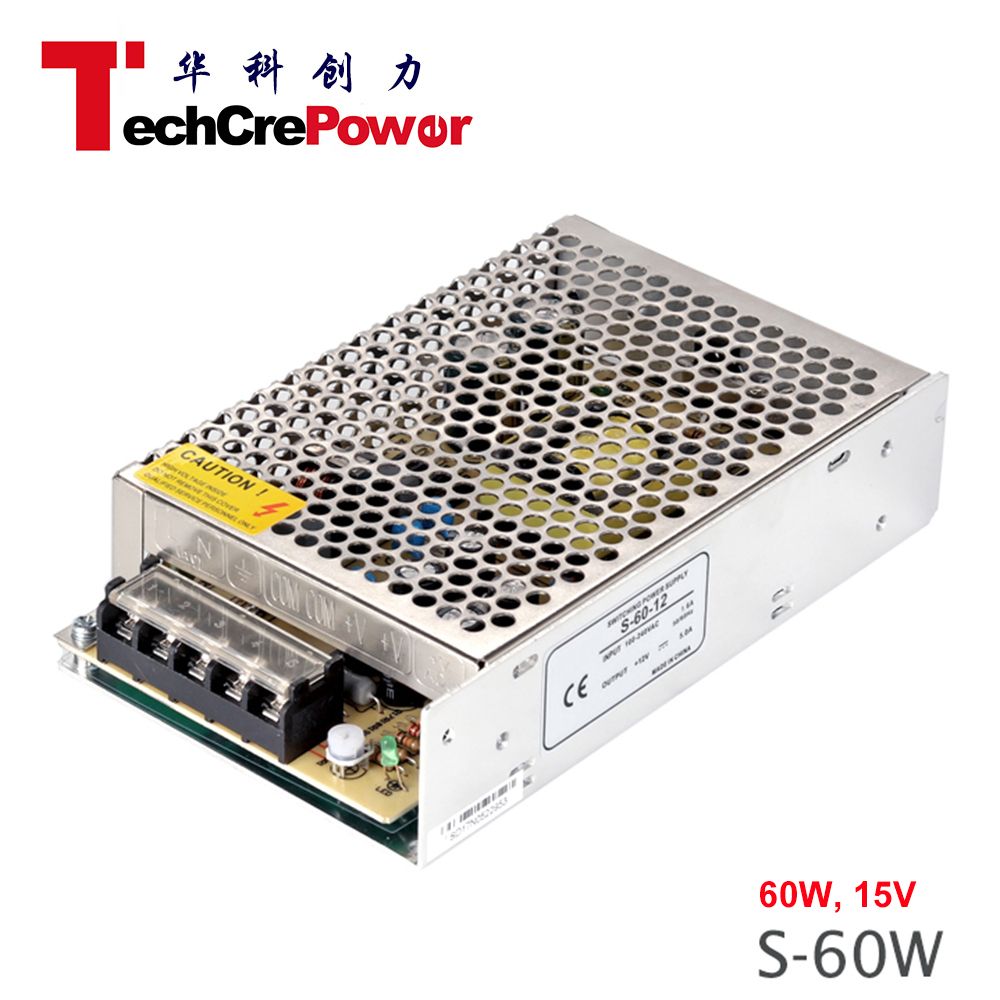

S-60-15 Ce Certification Good Quality, 220V AC to 15V DC Transformer 60W Switch Power Supply

Name: S-60-15 Ce Certification Good Quality, 220V AC to 15V DC Transformer 60W Switch Power Supply
Brand: all-electronics-online.com
SKU: 832120435
Availability: InStock
Rating: 4.4 (77 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-60-15
Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	CCC
Brand:	OEM

Product Description

Features:

• AC input range selectable by switch

• Protections:Short circuit/Over load/Over voltage

• Cooling by free air convection

• 100% full load burn-in test

• Fixed switching frequency at 83KHz

• 2 years warranty

Specification:

Model		MS-60-5	MS-60-12	MS-60-15	MS-60-24
Output	DC Voltage	5V	12V	15V	24V
	Rated Current	12A	5A	4A	2.5A
	Current Range	0~12A	0~5A	0~4A	0~2.5A
	Rated Power	60W	60W	60W	60W
	Ripple & Noise (max.)	120mVp-p	120mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	4.75~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage Tolerance	±2.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%
	Setup,Rise time	200ms 100ms
	Hold time (Typ.)	30ms
Input	Voltage Range	85 ~ 264VAC 120 ~ 370VDC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	79%	84.5%	86%	88.5%
	AC Current(Typ.)	2A/115VAC 1A/230VAC
	Inrush Current (Typ.)	COLD START 20A/115VAC 40A/230VAC
	Leakage Current	<0.5mA / 240VAC
Protection	Over Load	105 ~ 150% rated output power
Protection	Over Load	Protection type : Hiccup mode, recovers automatically after fault condition is removed
Environment	Working Temperature	-10 ~ +60°c (Refer to "Derating Curve" )
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Others	MTBF	522.1K hrs min. MIL-HDBK-217F (25 °c)
	Dimension	1107836mm (LWH)
	Packing	0.26Kg; 60pcs/15.6Kg/0.9CUFT
