Prod Model: |
S(B)H15-M |
Rated Capacity: |
30kVA-1600kVA |
Rated Voltage: |
6kv-10kv |
Vector Group: |
Dyn11 / Yyn0 |
Material: |
Copper /Aluminum Winding |
Application: |
Rectifier |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Oil-immersed Type Transformer |
Winding Type: |
Two-winding Transformer |
Brand: |
Zhongyi Electirc |
Product Description

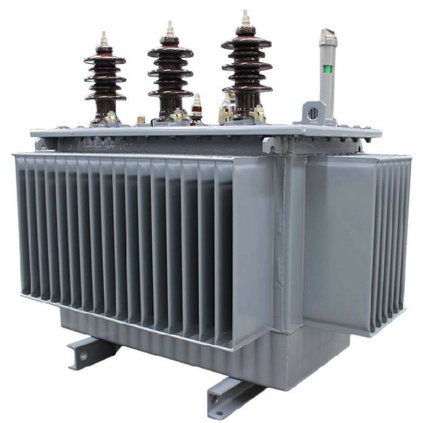

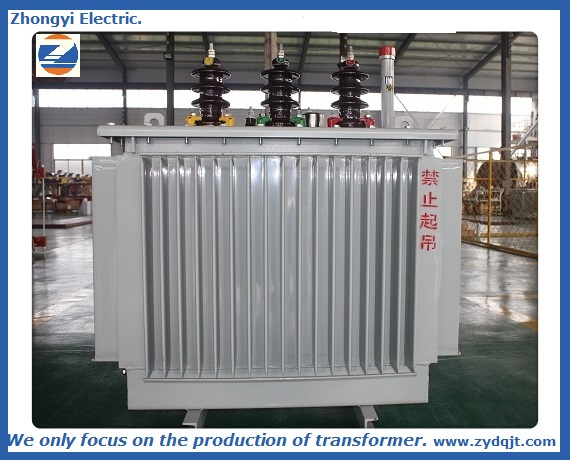

S(B)H15-M Series Sealed Amorphous Alloy Power Transformer :
The specification as follows :1.Production: The transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it. 2.Applications: a.Mentallurgy and Petrifaction;
b.Electric power system.
3.Technical Parameters: Technical Parameter of S(B)H15-M Series Hermetical Amorphous Alloy Power Transformer |
Rated capacity(kVA) | Voltage and tapping range | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load current (%) | Short-circuit impedance(%) |
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage (KV) | | | | | |
30 | 6 6.3 10 10.5 11 | ±5% ±2×2.5% | 0.4 | Dyn11 ( or ) Yyn0 | 130 | 630/600 | 2.3 | 4.0 |
50 | | | | | 170 | 910/870 | 2.0 | |
63 | | | | | 200 | 1090/1040 | 1.9 | |
80 | | | | | 250 | 1310/1250 | 1.9 | |
100 | | | | | 290 | 1580/1500 | 1.8 | |
125 | | | | | 340 | 1890/1800 | 1.7 | |
160 | | | | | 400 | 2310/2200 | 1.6 | |
200 | | | | | 480 | 2730/2600 | 1.5 | |
250 | | | | | 560 | 3200/3050 | 1.4 | |
315 | | | | | 670 | 3830/3560 | 1.4 | |
400 | | | | | 800 | 4520/4300 | 1.3 | |
500 | | | | | 960 | 5410/5150 | 1.2 | |
630 | | | | | 1200 | 6200 | 1.1 | 4.5 |
800 | | | | | 1400 | 7500 | 1.0 | |
1000 | | | | | 1700 | 10300 | 1.0 | |
1250 | | | | | 1950 | 12000 | 0.9 | |
1600 | | | | | 2400 | 14500 | 0.8 | |
2000 | | | | | 750 | 17400 | 0.20 | 5 |
2500 | | | | | 900 | 20200 | 0.20 | |
Detailed Images:
Packing & Delivery : SAFE, TIMELY, EFFICIENT |
For the product: | Most value S9 type oil immersed three phase 10kv-20 kv power transformer, we normally use wooden case or steel frame to pack , the packing size is up to the different models. As for very big transformers, we will order special containers to ship them. OR AS YOUR ORDER. |
packing Details: | Inner Plastic smocks or asphalt felt bag with desiccating agent,then wooden carton or frame steel . |
Delivery Details: | If you buy standard type product : 5-12 work days .If you buy Customized products: As your purchasing quantity to decide . |
Our Company :
Baoding Zhongyi Electrical material Manufacturing Co., Ltd.mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.Our Workshop :

Certifications :
FAQ :Are you manufacturer or trading company?Hebei ZHONGYI Group is a specialized manufacturer with over 20years production experience, and have our own trade mark "ZHONGYI GROUP".
How do you control the quality ? Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards,At the same time ,we will take photos or shoot video for you.
What about lead or shipping time?The lead time depends on the quantity you ordered, generally within 20-30 days upon receipt of advance payment.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
