S Beam Force Sensor for Hppper Scale (QH-31B)

Name: S Beam Force Sensor for Hppper Scale (QH-31B)
Brand: all-electronics-online.com
SKU: 774249905
Availability: InStock
Rating: 4.7 (60 reviews)

Price:	US $ 35-40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-31B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	500 Kg to 10000 Kg
Safe Overload:	%Fs 150
Excitation Voltage:	9 ~ 12 VDC
Cable Length:	3 M
Material:	Alloy Steel

Product Description

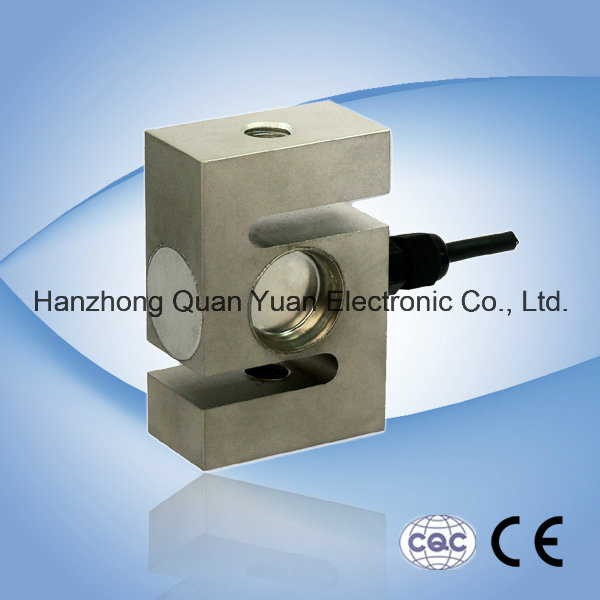

S Beam Force Sensor for Hppper Scale (QH-31B)

Product Discription:

QH-31Bload cells are available in the capacities from 500 kg to 10000 kg

S beam style. Tension and/or compression loading.

Alloy steel or stainless steel,sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.

Integral structure and easy installation.
Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.

Features:

Capacity :500 kg of 10000 kg

Defend grade: IP67 & 68

High accuracy.
Alloy steel or stainless steel.

Integral installation, Low profile.

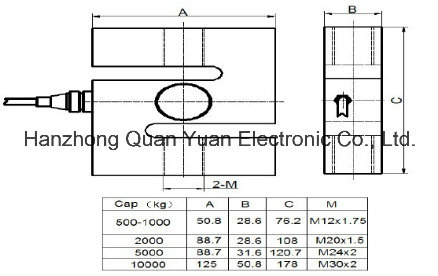

Electrical connection and Dimensions:

Technical Specifications

Specifications:
capacity	Kg	500~10000
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.003
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	±2.0
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	400 ± 20
output resistance	Ω	350 ± 5
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-35 ~ +65
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.03
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:3 ±0.2 m

Cable diameter :5 ±0.2 mm

The cable length could be chose by customer's application.
