S Beam Load Cells From 1 Kg to 500 Kg

Name: S Beam Load Cells From 1 Kg to 500 Kg
Brand: all-electronics-online.com
SKU: 815871945
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 35-40/Piece
Min Order:	2/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-31A
Capacity:	1 Kg to 500 Kg
Safe Overload:	%Fs 150
Excitation Voltage:	9 ~ 12 VDC
Cable Length:	3 M
Material:	Alloy Steel

Product Description

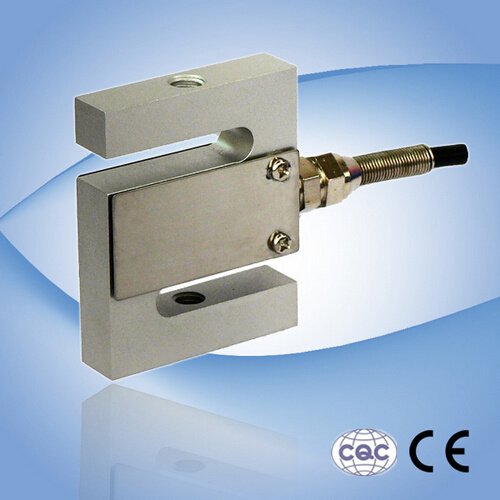

S Beam Load Cells from 1 KG to 500 KG (QH-31A)

Product Discription:

QL-31A load cells are available in the capacities from 1 kg to 500 kg
S beam style. Tension and/or compression loading.
Alloy steel or stainless steel,Silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.

Features:

Capacity :1 kg to 500 kg
Defend grade: IP66
High accuracy. Alloy steel or stainless steel.
Integral installation, Low profile. reliable performance
Electrical connection and Dimensions:

Specifications:
capacity	Kg	1~500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.04
excitation voltage	Vdc	5 ~ 15
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.0
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.024
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-20~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.017	±0.011
temperature coefficient of ZERO	%FS/10ºC	± 0.020	±0.015

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:5 ±0.2 m
Cable diameter :5 ±0.2 mm
The cable length could be chose by customer's application.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
