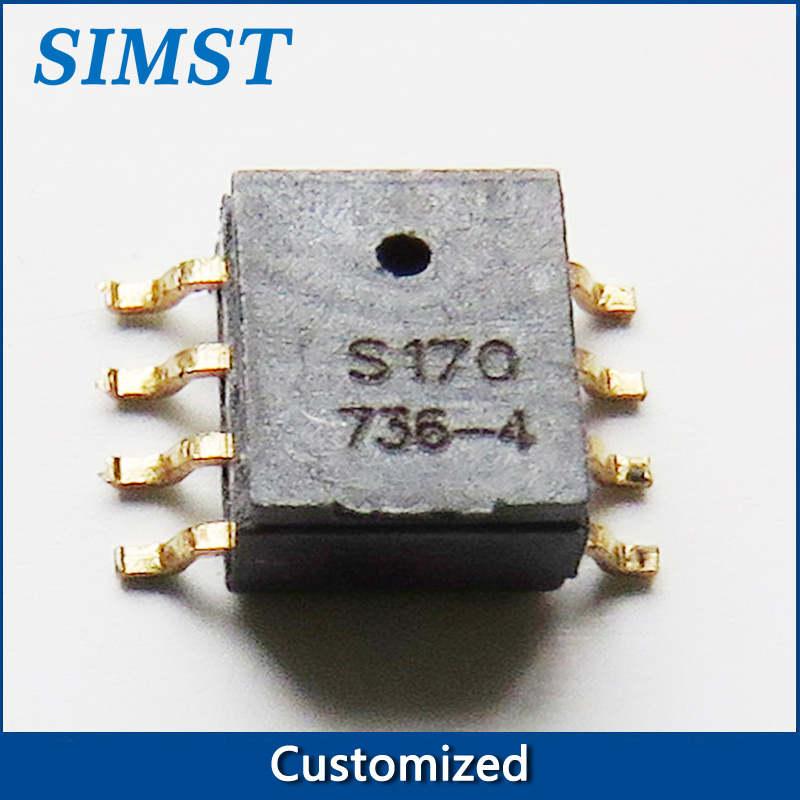

Absolute pressure sensor chip S series
Description
The Low-cost surface mount package SO-8 pressure sensor series is designed for pressure sensor systems with highest demands on resolution and accuracy. The series of pressure sensor is a small size piezo-resistive pressure sensor. The Die size is 1x1mm2. When the input voltage is 5VDC the sensor produces mV DC output voltage which is direct proportion of the input pressure. Pressure sensor is the absolute pressure sensor, and we can also offer the differential pressure mode.

Features
l Solid, MEMS technique, high reliability
l Low-cost surface mount package SO-8
l Wide Temperature range (-40 to +125 ºC)
l Standard pressure range: 0-150KPa;0-300KPa;0-700KPa;0-1700KPa;0-4000KPa
l Gel protection against humidity and water
l Small size
l High reliability, low drift

Application
l For high resolution absolute sensor systems
l Engine control
l Barometers, Altimeters, Variometers, Sphygmomanometer
l Automotive Tire Pressure Monitoring
l Pneumatic Gages
l Hand-held Meters
l Home Appliances
CHARACTERISTICS - SPECIFICATIONS
All parameters are measured at 5.0V supply at room temperature, unless otherwise specified.

		Min	Typ	Max	Unit	Remarks
Excitation Voltage			5.0		V
Excitation Current			1		mA
Span (FS Rang)	150KPa	50	70	90	mV	1
	300KPa	70	100	150	mV
	700KPa	70	100	150	mV
	1700KPa	100	150	200	mV
	4000KPa	100	150	200	mV
Offset		-35		35	mV	2
TC Span		-24	-19	-15.5	%FS/100ºC	3
TC Offset		-7		+7	%FS/100ºC	3
TCR		+18	+22	+33	% /100ºC	3
Linearity		-0.45	-0.15	+0.45	%FS	4
Bridge impedance			5		KΩ
Proof Pressure		2X			Fixed FS
Burst Pressure		4X			Fixed FS
Operating Temperature		-40		+125	ºC
Storage Temperature		-55		+150	ºC

Notes:
1. Measured at 5V constant voltage excitation.
2. The offset is ±50mV for 100KPa,150KPa
3. Measured from 0 to 60 C
4. Defined as best straight line.

Pressure Ranges

KPa
150	PSA015
300	PSA030
700	PSA070
1700	PSA170
4000	PSA400

PIN	Description
1	NC
2	Out+
3	NC
4	In-
5	In -
6	Out -
7	NC
8	In +
