S Shape Load Cell 2000kg Capacity 3t, 5t, 10t Capacity Weighing Sensor Force Sensor

Name: S Shape Load Cell 2000kg Capacity 3t, 5t, 10t Capacity Weighing Sensor Force Sensor
Brand: all-electronics-online.com
SKU: 773895955
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-31B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:	2.0±0.003mv/V
Excitation Voltage:	9~12V
Combine Error:	0.03%Fs
Working Temperature:	-35~65 Centigrade
Product Name:	S Shape Load Cell 2000kg Capacity 3t, 5t, 10t

Product Description

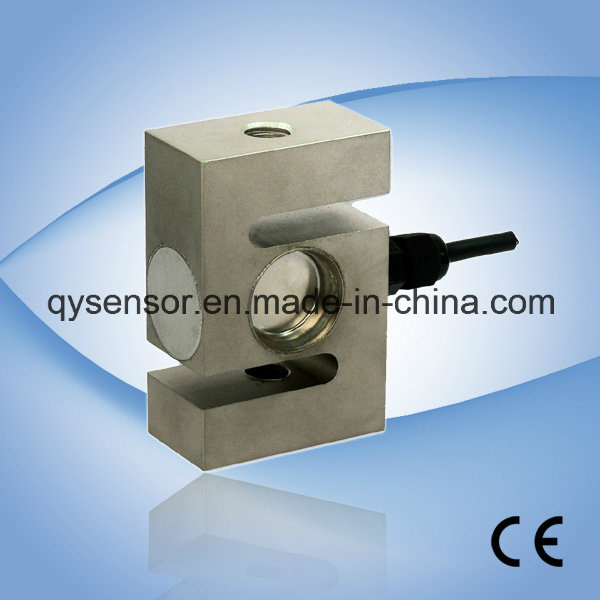

QH-31B S Shape Load Cell 2000kg Capacity 3t, 5t, 10t Capacity Weighing Sensor Force Sensor load cells are available in the capacities from 500 kg to 10000 kg
S beam style. Tension and/or compression loading.
Alloy steel or stainless steel,sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.

Features:
Capacity :500 kg to 10000 kg
Defend grade: IP67 & 68
High accuracy.
Alloy steel or stainless steel.
Integral installation, Low profile.
The cable length could be chose by customer's application

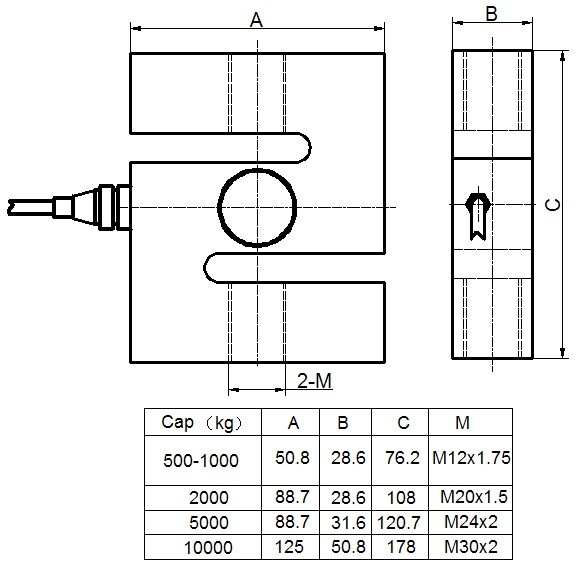

Electrical connection and Dimensions:
Technical Specifications

Specifications:
capacity	Kg	500~10000
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.003
excitation voltage	Vdc	9~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	±1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	400 ± 20
output resistance	Ω	350 ± 5
insulation resistance	M Ω	≥ 5000 @ 100 Vdc
operating temperature range	ºC	-35 ~ +65
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.03
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter ::¢5 mm
The cable length could be chose by customer's application.
