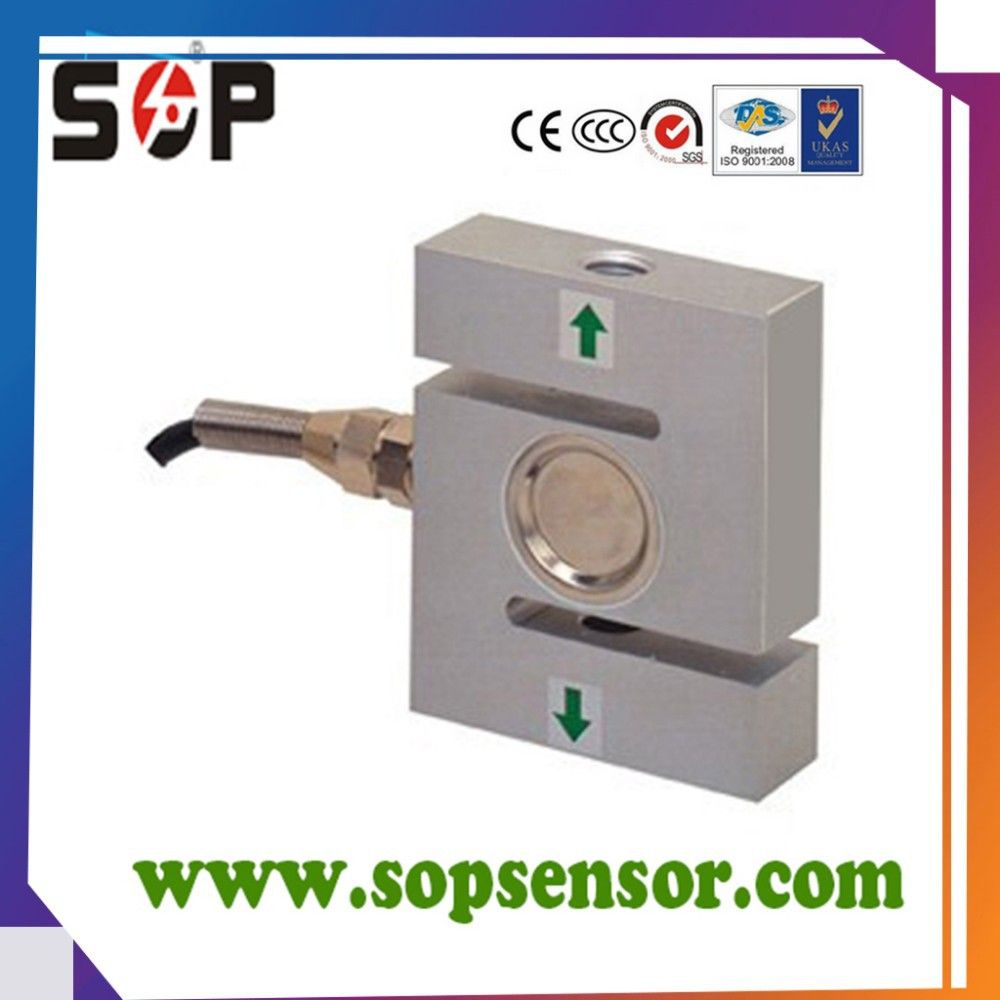

S Type (100kg-5000kg) Load Cell From China

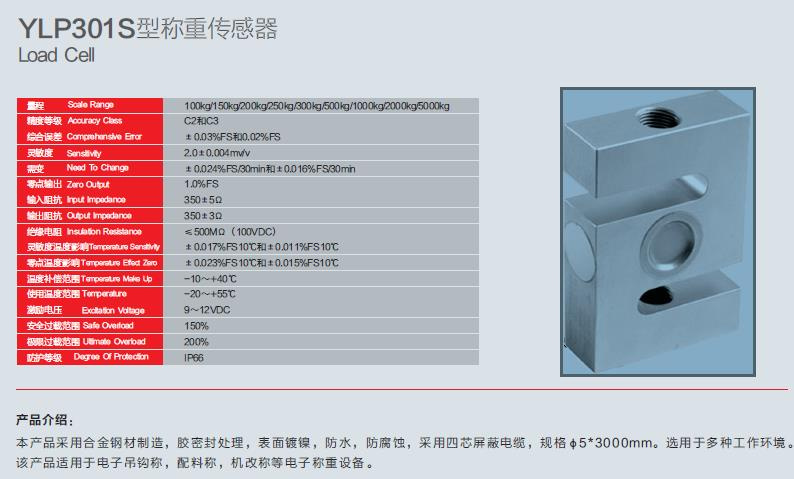

Prod Model:	YLP301S-5000kg
Zero Output:	1.0%Fs
Safe Overload:	150%
Excitation Voltage:	9~12VDC
Accuracy Class:	C2& C3
Material:	Aluminum Alloy

Product Description

S Type (100kg-5000kg) Load Cell from China

Load Cell Parameter:

Excitation voltage	3Vnms(1~3Vnms)
Excitation power	5Hz(1-10KHz)
Displacement range(mm)	2, 5, 10
Output signal	Ac signal or Transmitter output  0-5V( 9-28V  DC supply voltage )
	Ac signal or Transmitter output 0-10V(15-28V  DC supply voltage )
	Ac signal or transmitter output 4-20mA(two wires , 15-28V  DC supply voltage)
	Digital output (9-28V  DC supply voltage)
Linearity error	Analog output:±0.25%,±0.5% or others, digital output:0.25%,0.1% or others
Repeat error	≤1um
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Zero point ≤0.01%/°C
	sensibility≤0.025%/°C

Features:
Aluminum  alloy shell construction
Strain gauge technology,analog output,high accuracy
Tension compression force measurement
Widely used for hopper scales,testing machine.

Application:
Miniature Compression and Tension Load Cells with High Dynamic Frequency are mainly applied intension and pressure testing instruments and automatic equipments fields, such as insertion force test instruments, lifting hook scales, riveting machine, welding machine, hot&cold lamination mac

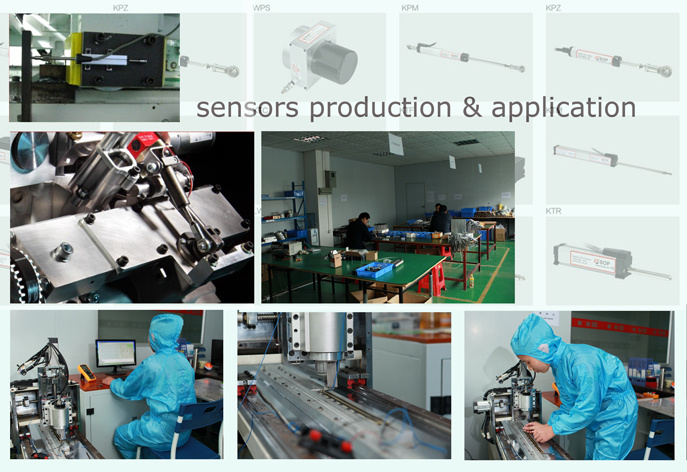

13 years sensing technology crystallization  focus on precise measurements of  machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.
Package:

What is Loadcell
A load cell is a sensor or a transducer that converts a load or force acting on it into an electronic signal. This electronic signal can be a voltage change, current change or frequency change depending on the type of load cell and circuitry used. There are many different kinds of load cells. We offer resistive load cells and capacitive load cells.
Resistive load cells work on the principle of piezo-resistivity. When a load/force/stress is applied to the sensor, it changes its resistance. This change in resistance leads to a change in output voltage when a input voltage is applied.
Capacitive load cells work on the principle of change of capacitance which is the ability of a system to hold a certain amount of charge when a voltage is applied to it. For common parallel plate capacitors, the capacitance is directly proportional to the amount of overlap of the plates and the dielectric between the plates and inversely proportional to the gap between the plates.
