Hanzhong Quan Yuan Electronic Co., Ltd. >> S Type Crane Scale or Hopper Scale Load Cell Sensor

S Type Crane Scale or Hopper Scale Load Cell Sensor

S Type Crane Scale or Hopper Scale Load Cell Sensor
Price: US $ 22-92/Piece
Min Order: 4/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QH-31 load cell
Capacity: 20kg to 5000kg
Accuracy: 0.02%Fs
Signal Output: 2.0mv/V
Power Supply: 9 ~ 12VDC
Application: Crane Scale, Hopper Scale,Weighing Scale
Material: Alloy Steel or Stainless Steel
Customized: Normal Product,But Can Be Customized

Product Description

Product Introduction:

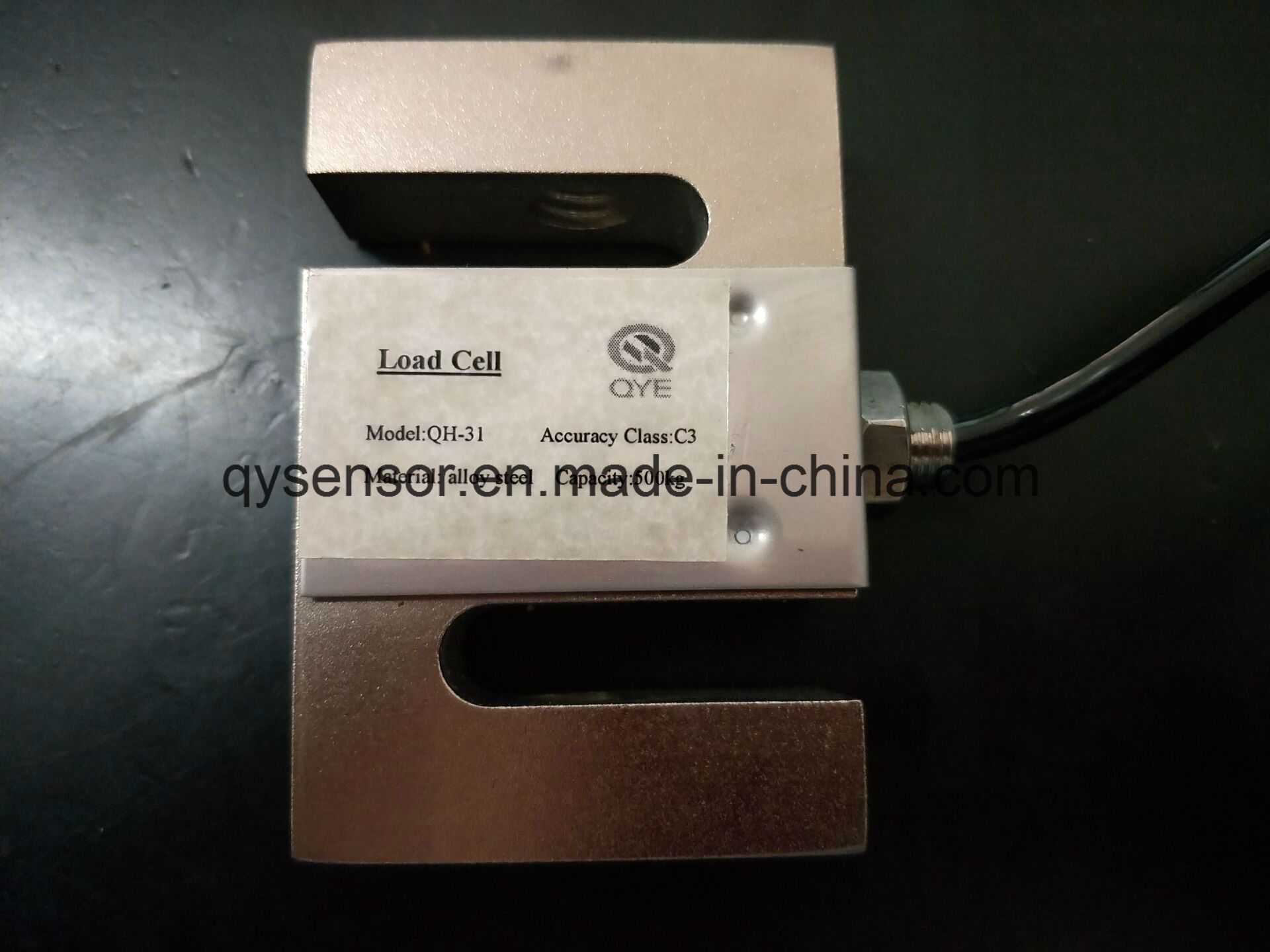

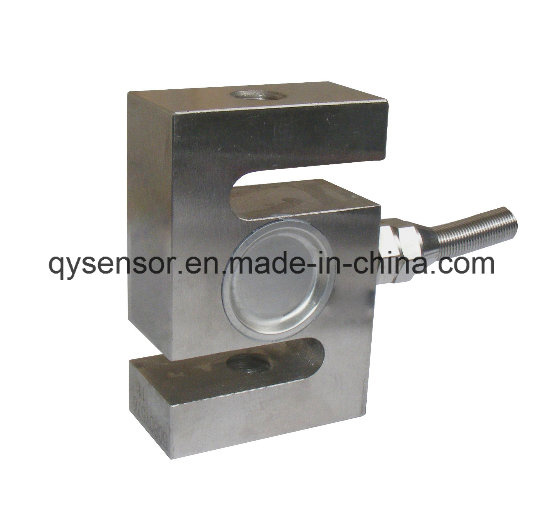

QH-31 load cells are available in the capacities from 20kg to 5000kg.
Alloy steel material with S beam style.
Silicon adhesive sealed inside. It is waterproof and anti-corrosion. So be suitable for all kinds of environment.
Tension and/or compression load.
Be suitable for electronic crane scale, hopper scale, mechanical conversion scale and other electronic
weighing devices.


Features:

Capacity :20 kg to 5000 kg
Defend grade:  IP66 & IP68
High accuracy. Reliable performance.
Alloy steel or stainless steel.
Integral installation. Low profile.

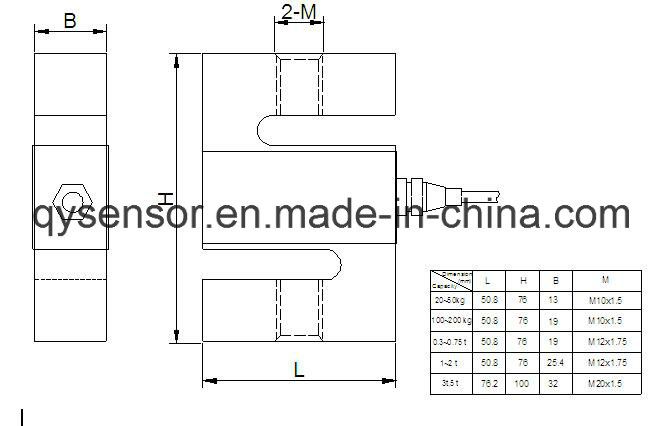

Electrical connection and Dimensions(mm):


Technical Parameters:

Specifications:
capacityKg20,50,100,200,500,750,1000,2000,5000
safe overload%FS150
ultimate overload%FS200
rated outputmV/V2.0 ± 0.004
excitation voltageVdc9 ~ 12
combined error%FS± 0.03± 0.02
zero unbalance%FS± 1.0
non-linearity%FS± 0.03± 0.02
hysteresis%FS± 0.03± 0.02
repeatability%FS± 0.02± 0.02
creep%FS/30min± 0.03± 0.02
input resistanceΩ390± 20580± 20
output resistanceΩ351± 4501± 4
insulation resistanceM Ω≥ 5000 @ 100 Vdc
operating temperature rangeºC-20 ~ +55
compensated temperature rangeºC-10 ~ +40
temperature coefficient of SPAN%FS/10ºC± 0.02±0.02
temperature coefficient of ZERO%FS/10ºC± 0.03±0.02

Electrical connection:

Excitation+ green     Excitation- yellow   Signal+ white   Signal- red
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter :5 mm
The cable length could be chose by customer's application.


Packaging & Shipping

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.


Our Services:

1. OEM/ODM Services:
Our company provides OEM/ODM services and Customized products services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
What's your requirement?
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.

Company Information:

  Marketing under Our Brand "QYE"
Hanzhong Quan Yuan Electronic Co. Ltd is a professional high-tech enterprise that is committed to the research, development, design, manufacture and sale of load cells, high precision resistance strain gauges and pressure transmitters under the QuanYuan brand. They can be applied in the traditional force measurement field and are also widely used in the industrial automation production lines and metallurgical industry.

Meeting CE, RoHS and EX Requirements
As an ISO 9001:2008-certified company,all our electronic products have good performance and high quality because all products must be tested several times and they must undergo strict inspections before being dispatched from the factory. As a result, our load cells have passed CE and RoHS requirements and pressure transmitters have passed CE and EX standards.

Service Concept: Customer Satisfaction is Our Everlasting Pursuit
With several years' experience in manufacturing and selling load cells, strain gauges and pressure transmitters, we always adhere to our service concept of "customer satisfaction is our everlasting pursuit" and have built a professional team in sensor field to provide customers with first-class products, first-class services, first-class reputation and first-class principles.

Exporting to over 30 Countries Worldwide
With high quality and good service, our products have been exported to over 30 countries, which include the US as well as those in Europe, Southeast Asia, the Middle East and South America.

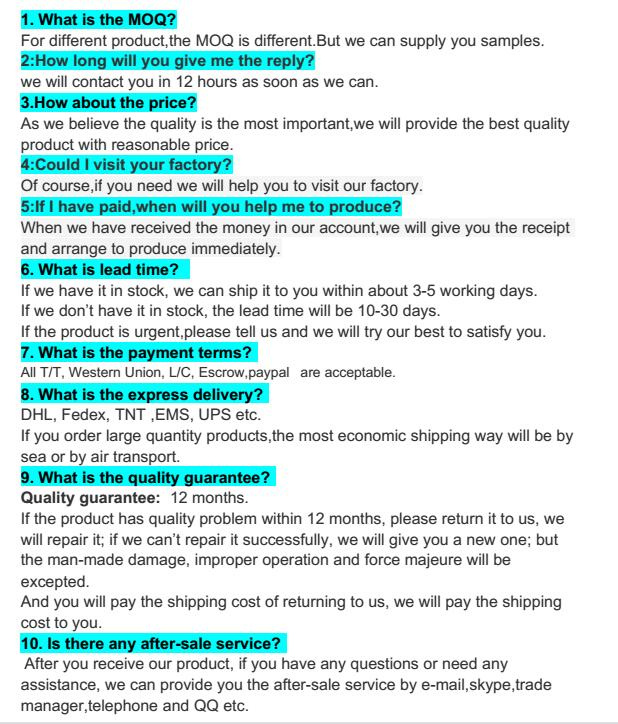

FAQ:


Certificates:



Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
