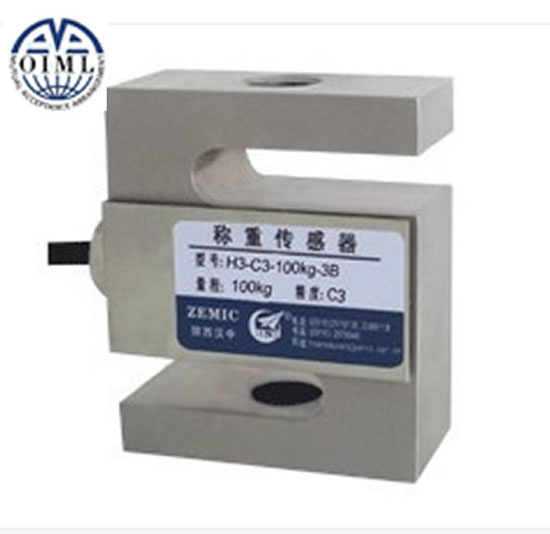

S Type Load Cell (H3)

Name: S Type Load Cell (H3)
Brand: all-electronics-online.com
SKU: 707805145
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 30-70/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	H3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mdoel No:	Hgk
Max Load Weight:	2-1200
Color:	Optional
Welding Diameter:	60-860

Product Description

Name: Load cell
Modl: H3
Capacity: 35kg-30t,
100lb-20klb.

H3 load cells are available in the capacities 25kg to 30t
And 100lb to 20klb.
Alloy steel, sealed by adhesive inside, oil-proof, waterproof and
Anti-corrosion, suitable for all kinds of environments.
S beam design, tension and/or compression loading possible,
Easy installation, suitable for crane scale, mechanical
Conversion scale, hopper scale and other electronic
Weighing devices.
Safe and anti-explosive product, can be used in
Atrocious environment and hazardous areas.

Capacity	t	0.025/0.05/0.1/0.15/0.2/0.25/0.3/0.5/0.6/0.75/1/1.5/2/2.5/3/5/7.5/10/15/20/30
Capacity	lb	100/200/250/300/500/750/1K/1.5K/2K/2.5K/3K/5K/10K/15K/20K
Accuracy		C2	C3	C4	A5S	A5M	B10S	B10M
Approval			OIML R60 C3	OIML R60 C4
Maximum number of verification intervals	n max	2000	3000	4000	5000	5000	10000	10000
Minimum load cell verification interval	v min	Emax /5000	Emax /10000	Emax /14000	Emax /15000	Emax /15000	Emax /10000	Emax /10000
Combined error	%FS	≤±0.030	≤±0.020	≤±0.018	≤±0.018	≤±0.026	≤±0.035	≤±0.050
Creep	%FS /30min	≤±0.024	≤±0.016	≤±0.012	≤±0.012	≤±0.017	≤±0.030	≤±0.040
Temperature effect on sensitivity	%FS/10ºC	≤±0.017	≤±0.011	≤±0.009	≤±0.009	≤±0.013	≤±0.030	≤±0.040
Temperature effect on zero	%FS/10ºC	≤±0.023	≤±0.015	≤±0.010	≤±0.010	≤±0.014	≤±0.030	≤±0.020
Output sensitivity	mv/v	2.0±0.004(Metric) 3.0±0.008(Imperial)
Input resistance	Ω	350±3.5
Output resistance	Ω	351±2.0
Insulation resistance	MΩ	≥ 5000(50VDC)
Zero balance	%FS	1.5(Metric) 1.0(Imperial)
Temperature, compensated	ºC	-10~+40
Temperature, operating	ºC	-35~+65
Excitation, Recommended	V	5~12(DC)
Excitation, Max	V	18(DC)
Safe overload	%FS	150
Ultimate overload	%FS	300

Hangzhou Gongheng Weighing Equipment Co., Ltd is a Hi-tech enterprise specialized in producing, researching, developing, and selling the electronic scales, crane scale, floor scale, platform scale, pallet truck scale, truck scale and weighing accessories and so on. We have a number of experienced and capable technical personnel and advanced technology, innovated designs, superior production equipment and self-contained QC system, and provides high quality products, best price and service.
We produces the products that are characterized by variety, complete specification, quick delivery, high quality, best price and have been widely praised by many users and distributors. In addition to the standard scales for common use, the company can design and produce products required by different users and meet their special demand. We have set up a well-managed network of in-sale and after-sale service as well as a complete mechanism for service supervision and hope to co-operate with the distributors by supplying the high quality crane scale, floor scale, platform scales at competitive price and on the principle of mutual benefit. Sincerely look forward to cooperating with you, welcome you into our HZGH.
