S Type Load Cell Ppm225-Ls1-2

Name: S Type Load Cell Ppm225-Ls1-2
Brand: all-electronics-online.com
SKU: 832986065
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM225-LS1-2
Certification:	CMC

Product Description

Description

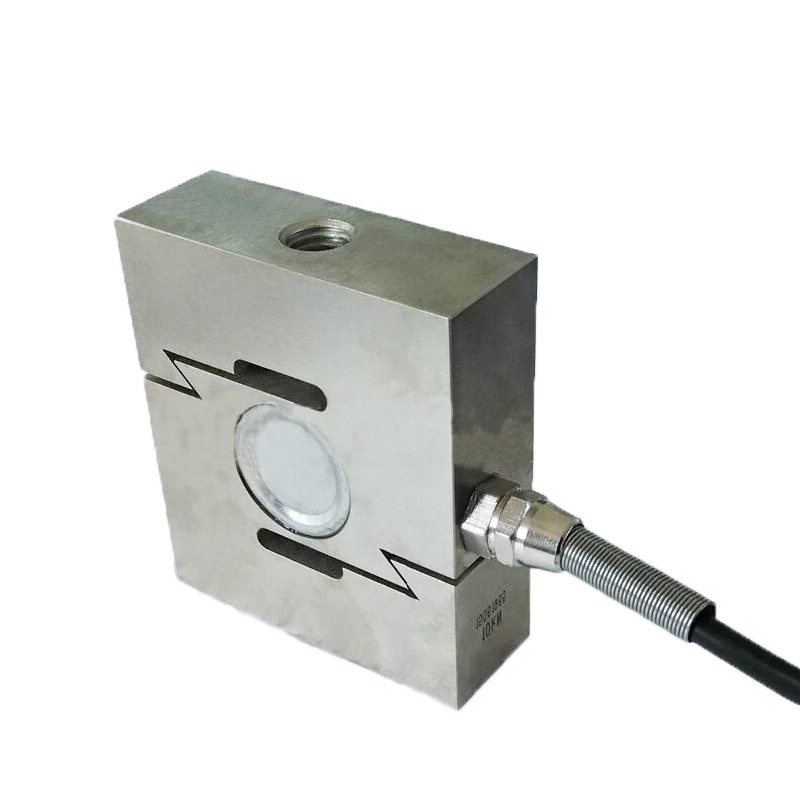

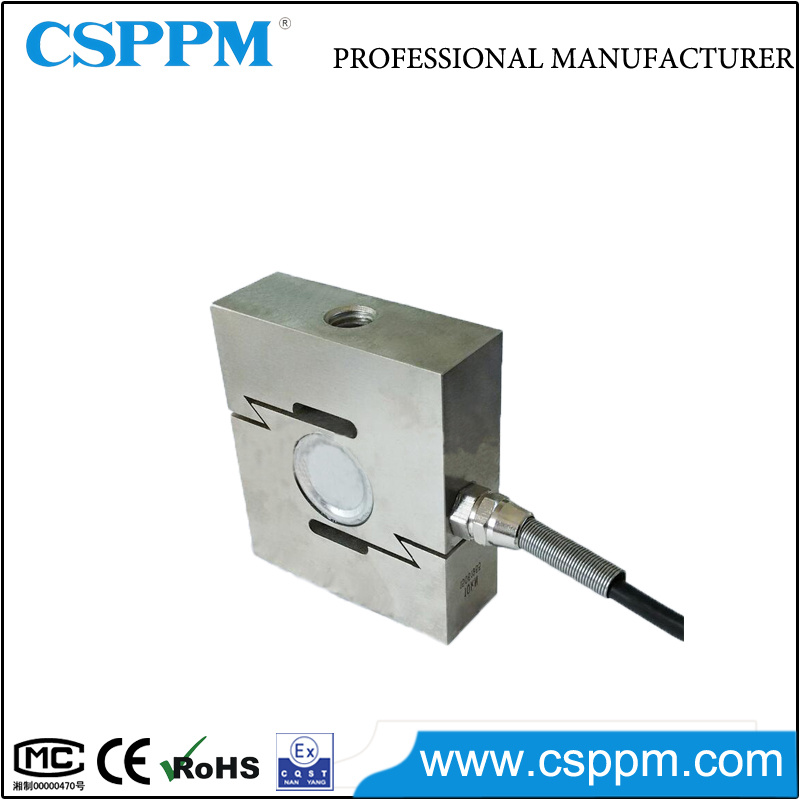

PPM225-LS1-2 load cells are available in the capacities from 0.1t to 20t. They features Alloy aluminum construction with S type, integral structure and easy installation. They are suitable for platform scales and other electronic weighing devices.

Specification

Capability	0.1~20 t
Comprehensive precision	0.02%FS
Sensitivity	2 mV/V
Creep	±0.02%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.02%FS/10ºC
Temperature effect on output	±0.02%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy
Protection class	IP 65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

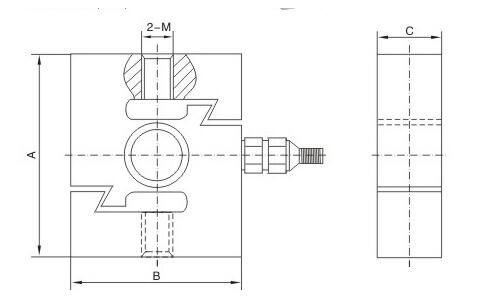

Dimensions: mm

Capacity	Dimensions
t	A	B	C	M
0.1~0.5	80	70	19.1	M12
1~1.5	80	70	25.4	M12
2~5	108	92	25.4	M18*5
10	178	130	51	M30*2
20	190	160	60	M39*2

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
