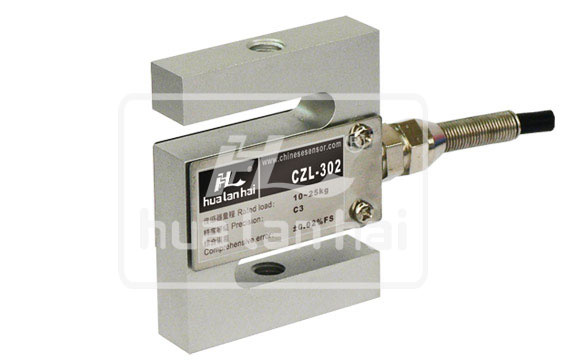

S-Type Load Cell

Name: S-Type Load Cell
Brand: all-electronics-online.com
SKU: 773559335
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Rated load:1kg~500kg
Main features:Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters
Precison : C2 & C3		Temp. effect on span(%F.S/10°C): ±0.017& ±0.011
Comprehensive error(%F.S) : ±0.03 & ±0.02		Temp. effect on zero(%F.S/10°C): ±0.023 & ±0.015
Rated output(mv/v) : 2.0±0.004		Compensated temp. range(°C ) : -10~+40
Creep(%F.S/30min) : ±0.024 & ±0.016		Use temp. range(°C ) : -20~+55
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 350±5		Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP66

Installation size (mm) :

Rated load ( kg )	A	B	C	M
1--5	58	8	56	M4
10--50	50.8	12.7	65.3	M8
100	50.8	19.1	76.2	M12
150--500	64	23	82	M12

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
