S Type Weighing Load Cell -Czl301

Name: S Type Weighing Load Cell -Czl301
Brand: all-electronics-online.com
SKU: 760825625
Availability: InStock
Rating: 4.8 (21 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Weighing Sensor
Certificates:	OIML, Ce, RoHS, ISO9001, SGS
Material:	Alloy Steel

Product Description

Rated load:100kg~5000kg

Main features:Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters:
Precison : C2 & C3		Temp. effect on span(%F.S/10ºC): ±0.017& ±0.011
Comprehensive error(%F.S) : ±0.03 & ±0.02		Temp. effect on zero(%F.S/10ºC): ±0.023 & ±0.015
Rated output(mv/v) : 2.0±0.004		Compensated temp. range(ºC ) : -10~+40
Creep(%F.S/30min) : ±0.024 & ±0.016		Use temp. range(ºC ) : -20~+55
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 350±3		Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP66

Packaging

Carton Size: 38x30x30cm

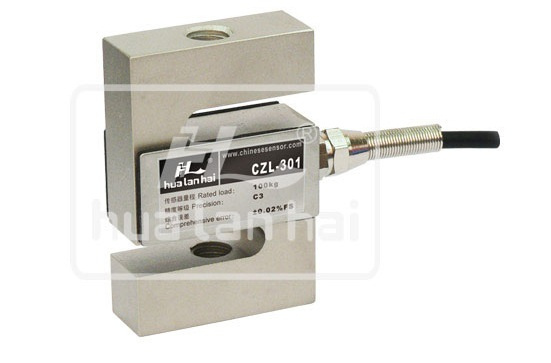

S Type Weighing Load Cell (CZL301)

Company Information

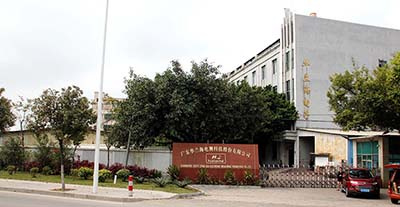

Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.

The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".

Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!

S Type Weighing Load Cell (CZL301)

FAQ

About samples:
Yes, we have stock for samples.
About guarantee:
Three months for free replacement and one year for free repair.

About factory:

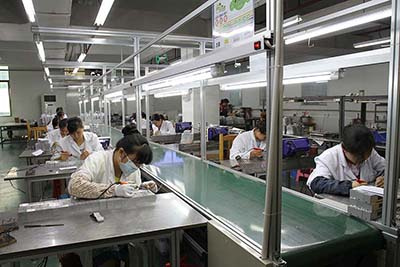

We are original manufacturer with 700 employees in Dongguan.
About certificates:
OIML, CE, ROHS, ISO9001, SGS

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
