S11-Mr-L 30-2500 kVA Three-Phase Oil-Immersed Fully-Sealed Power/Distribution Transformer
| Price: |
US $ 795-873/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S11-MR-L |
| Power Lose: |
No-Load Loss Is 30% Lower Than That of IEC Standar |
| Radiator Design: |
Can Be Customized |
| Material: |
Oil, CRGO, Copper |
| Install Method: |
Pole-Mounted Type |
| Color: |
White, Green or Customized |
| Apply Standard: |
IEC60076/ANSI/GB |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Gse |
Product Description
FEATURES

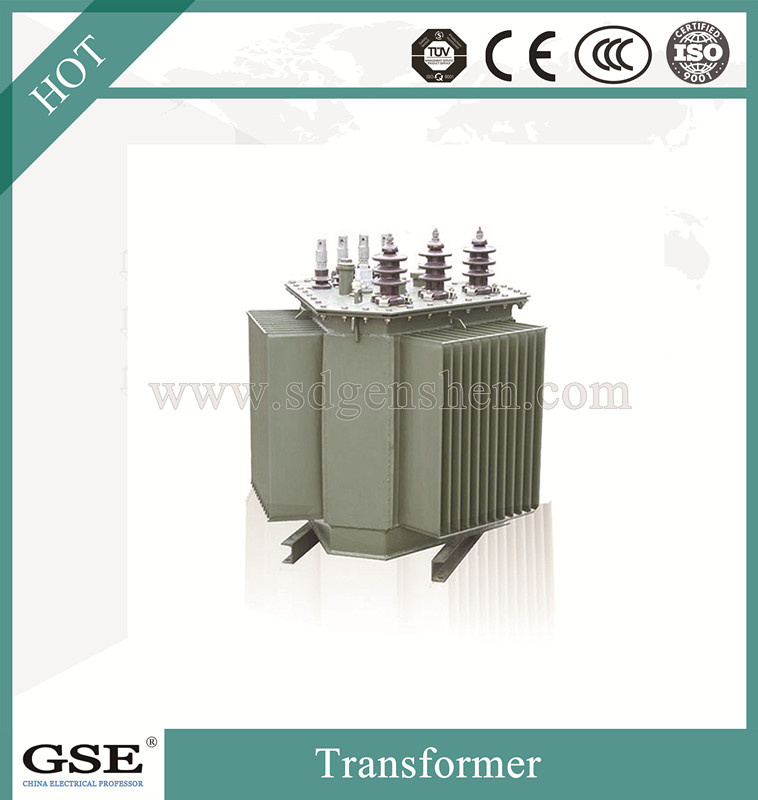

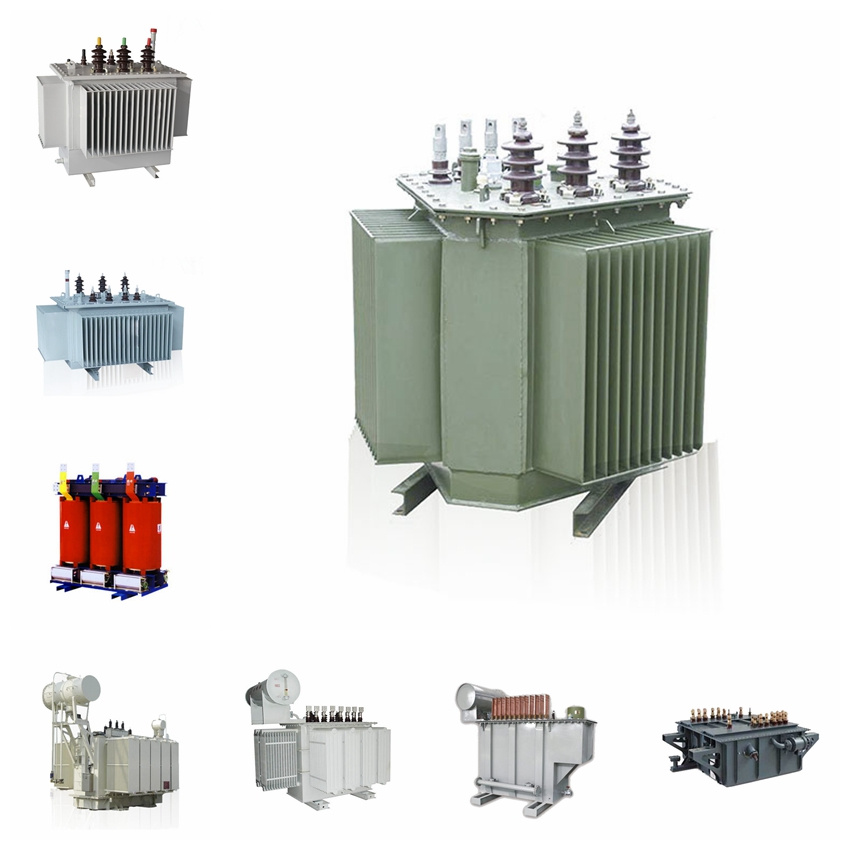

S11-MR-L 30-2500 KVA Three-Phase Oil-Immersed Fully-Sealed Power/Distribution Transformer
Voltage grade 10KV/0.4~0.63~1.14KV ;
capacity 30-2500KVA
S11-M.RL three-dimensional roll-core transformer series, the whole body is a three-dimensional triangular shape. And there are taut rods all around and in the central. With top and bottom frames, insulation, laminated wood, it is constituted as a whole body. The high and low voltage coils are circular and concentric winding, which can effectively resist the axial mechanical stress of sudden short circuit.
It has good anti-short circuit ability.
Compared the S11 - M.RL three-dimensional roll-core transformer series with ordinary transformers, no-load current is reduced by 75% and no-load loss is reduced by 30% in average. And the comprehensive energy saving is up to 15% - 30%Technical DataRated Capacity
(KVA) | Rated Voltage | Connection Symbol | No-load Loss
(KW) | No-load Current
(%) | 75ºC
(W)
Load-Loss | Short Circuit Impedance
(%) | Weight
(KG) | Boundary Dimension (mm) |
|
H.V.
(KV) | M.V.
(KV) | L.V.
(KV) | Equipment | L*W*H |
|
| 30 | 6
6.3
10
10.5
11 | ±5%
or
±2×2.5% | 0.4 | Dyn11
Yyn0
Yzn11 | 100 | 0.3 | 630/600 | 4 | 300 | 800*500*800 |
| 50 | 130 | 0.24 | 910/870 | 350 | 820*500*800 |
| 63 | 150 | 0.23 | 1090/1040 | 380 | 835*580*800 |
| 80 | 180 | 0.22 | 1310/1250 | 400 | 840*600*830 |
| 100 | 200 | 0.21 | 1580/1500 | 440 | 860*600*860 |
| 125 | 240 | 0.2 | 1890/1800 | 560 | 1020*660*860 |
| 160 | 280 | 0.19 | 2310/2200 | 620 | 1035*660*900 |
| 200 | 340 | 0.18 | 2730/2600 | 680 | 1040*680*930 |
| 250 | 400 | 0.17 | 3200/3050 | 800 | 1140*740*960 |
| 315 | 480 | 0.16 | 3830/3650 | 920 | 1160*760*1100 |
| 400 | 570 | 0.16 | 4520/4300 | 1080 | 1230*800*1150 |
| 500 | 680 | 0.16 | 5410/5150 | 1282 | 1320*900*1150 |
| 630 | Dyn11
Yyn0 | 810 | 0.15 | 6200 | 4.5 | 1580 | 1420*920*1160 |
| 800 | 980 | 0.15 | 7500 | 1900 | 1480*1000*1235 |
| 1000 | 1150 | 0.14 | 10300 | 2155 | 1600*1100*1280 |
| 1250 | 1360 | 0.13 | 12000 | 2515 | 1655*1135*1325 |
| 1600 | 1640 | 0.12 | 14500 | 3050 | 1815*1260*1400 |
| 2000 | 2240 | 0.11 | 17800 | 5 | 3735 | 1920*1305*1460 |
| 2500 | 2640 | 0.1 | 20700 | 4520 | 2120*1430*1525 |
Company IntroductionShandong Yangxin Genshen Electric Co., Ltd (GSE) was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao. registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrated R&D, production, sales.
GSE is one of the strongest influence and expertise enterprises in North China, with ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification.
GSE main products: electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, Glass fiber reinforced plastics material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales.

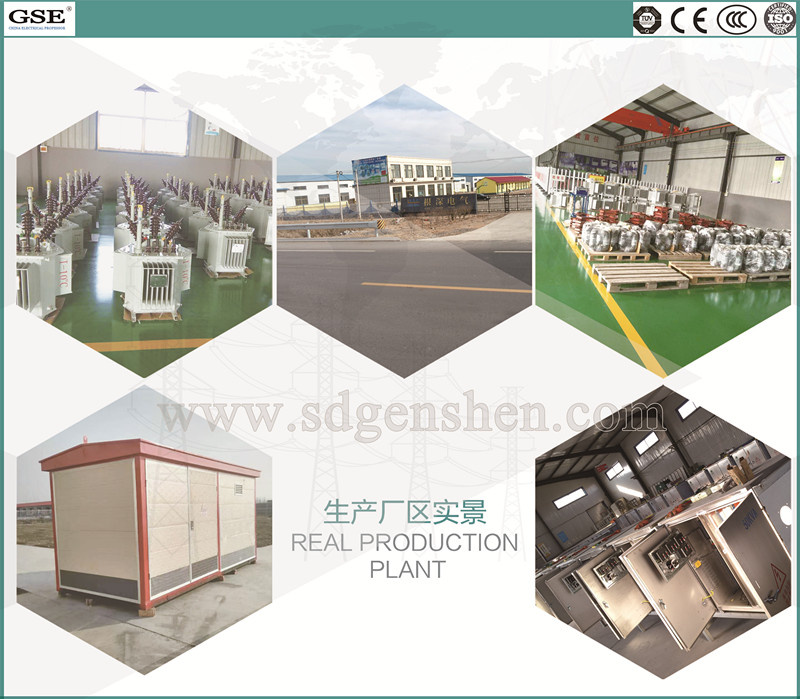

GSE have advanced production lines, testing equipments, ensuring the products with excellent quality. " Survive on high quality and seek development with prestige " is GSE principle, "customer first, quality first" is GSE purpose; "service above all, responsibility above all". We are committed to the prosperity and development of electric power and security. We sincerely welcome both domestic and overseas customers to come and visit us.
FAQQ: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our unit has ISO,TUV,CCC,CE certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
Q: How can I pay you?
A: T/T, L/C is very well used.
Q: What about the EXW delivery time?
A: 4~6weeks.
Q: Could you offer some spare parts for free?
A: Yes, no problem.
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
5. Why choose our Products?1.ServiceAfter customer's advance payment, GSE will update per week. Keep customers very clear the progress of their orders.After delivery the goods to the port, we will send B/L,C/O Insurance orign document to customer by Express within 5days.2.PriceGSE will provide competitive price to help Agency and Customers to win the tenders and handsome profit. If you have target price, just tell us!3.QualityGSE, As a stable supplier for STATE GIRD for years, Our unit have already mounted in all over the china. All the parts are famous brand with high quality, to ensure our unit with excellent quality and long term service life.4.After sale We will provide new electrical accessories or parts in warranty during time for free.(one year warranty period) If you are interested in our product, please don't hesitate to contact with us.
Contact Info:
Tony XU
Sales & Marketing Manager
Tel:+86 135 615 19737
Shandong Yangxin Genshen Electric Co.,Ltd
www.sdgenshen.com
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.

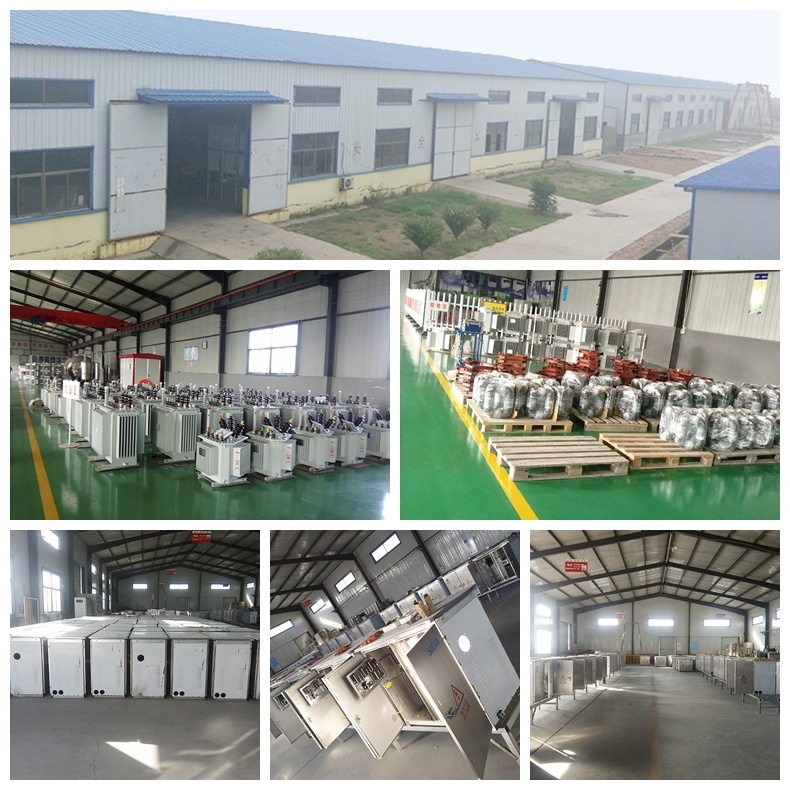

The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
