| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
SGS |
| Shape Of Coil: |
Roll-Core |
| Brand: |
Shenhong |

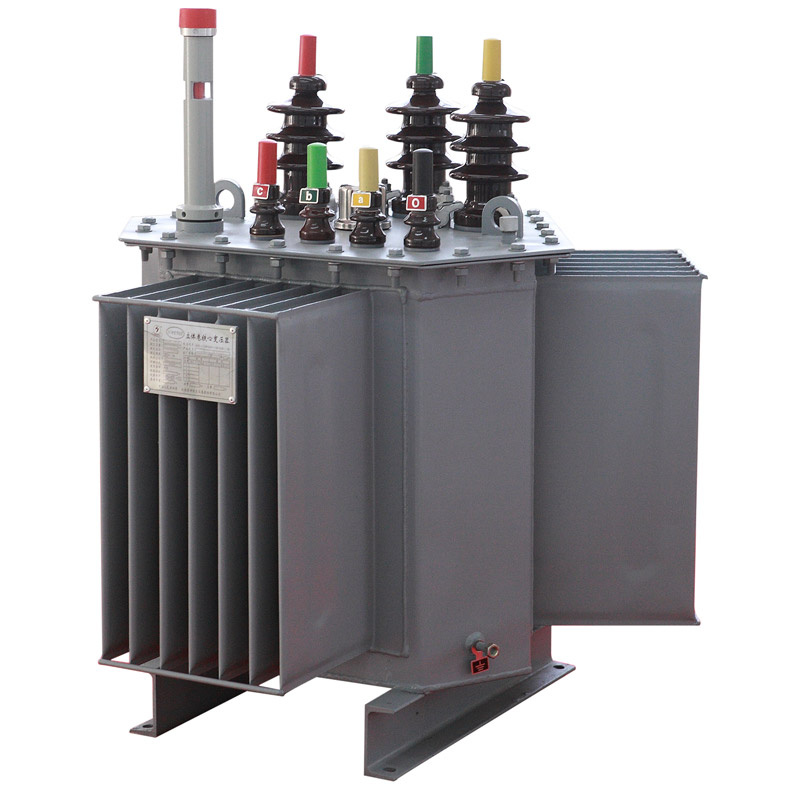

Product Description
Breaking the normal structure of traditional products, the three column is an equilateral triangle three-dimensional arrangement, the shortest path length and the same phase, the product has a great competitive advantage.
The direction of the magnetic flux is exactly the same as the crystal orientation of the silicon steel sheet, which greatly reduces the no-load loss and no-load current, and the running noise is less than 45 dB.
Solid triangular frame structure with high strength, which was uniform, strong anti short circuit ability.
| Parameter(S11-M.RL-30~1600/10 Triangular winding iron core transformer) |
Rating
(kVA) | HV
(kV) | LV
(kV) | Connection
symbol | No-load
Current(%) | No-load
Losses(W) | On-load
Losses(120ºC) | short-circuit
impedance(%) | Track
Distance | Body weight
(kg) | Oil
(kg) |
|
| 30 | 6
6.3
10
10.5
11
±5%
or
±2×2.5% | 0.4 | Dyn11
Yyn0
Yzn11 | 0.33 | 100 | 630/600 | 4 | 380*550 | 158 | 61 |
| 50 | 0.30 | 130 | 910/870 | 208 | 74 |
| 63 | 0.29 | 150 | 1090/1040 | 222 | 79 |
| 80 | 0.27 | 180 | 1310/1250 | 259 | 85 |
| 100 | 0.26 | 200 | 1580/1500 | 282 | 98 |
| 125 | 0.25 | 240 | 1890/1800 | 332 | 111 |
| 160 | 0.24 | 280 | 2310/2200 | 400*660 | 389 | 134 |
| 200 | 0.23 | 340 | 2730/2600 | 458 | 156 |
| 250 | 0.22 | 400 | 3200/3050 | 540 | 180 |
| 315 | 0.21 | 480 | 3830/3650 | 550*820 | 617 | 204 |
| 400 | 0.21 | 570 | 4520/4300 | 709 | 223 |
| 500 | 0.20 | 680 | 5410/5150 | 857 | 273 |
| 630 | Dyn11
Yyn0 | 0.20 | 810 | 6200 | 4.5 | 1069 | 343 |
| 800 | 0.19 | 980 | 7500 | 1291 | 382 |
| 1000 | 0.18 | 1150 | 10300 | 550*1070 | 1444 | 501 |
| 1250 | 0.17 | 1360 | 12000 | 1751 | 654 |
| 1600 | 0.16 | 1640 | 14500 | 2154 | 724 |
Our Facilities
Honors & Certificates
About Shenhong
Founded in 1992, Anhui Shenhong Transformer Co., Ltd. has been the strategic partner of SGCC (State Grid Corporation of China ) for 15 years.
We are also a qualified supplier of China Southern Power Grid Corporation. There is a long-term partnership between Shenhong and many provincial power companies of Anhui, Henan, Hebei, northern Hebei, Shandong, Jiangxi, Jiangsu, Hubei etc.
We have passed through ISO9001: 2008 quality management system, ISO14001: 2004 environmental Management System.
Company registered capital is 80 million RMB.
Factory area covers 60 acres, possessing 200 sets of advanced production equipment.
We have 200 staff and workers, having the capacity of designing, development, and production.
Annual production capacity is 3 million kVA,
Main products:
10KV oil immersed transformers: S11, S13-30 ~ 1600/10 series stacked core, three-dimensional triangular wound core distribution transformers;
10KV dry type transformers: SG10, SG11, SCB10, SCB11-30 ~ 2500/10 dry-type transformers; KS11 mining transformers and various special variants;
10KV amorphous alloy core transformer: SH15-30 ~ 2500/10 of amorphous alloy transformer;
SH17-30-2500 / 10 shell-type amorphous alloy transformer;
Box-type transformer substation: ZGS11-Z (H) -50 ~ 1600/10 series (American type);YB (W) -12 / 0.4-50 ~ 1600/10 seires (European type);
35kV off-circuit tap changing distribution transformer:S11,S9 -50-2500KVA/35 series;
35kV on-load tap changing power transformers: SZ11, SZ9-/00 ~ 20000kVA/35 series;
Other transformers: Traction transformers and other special transformers.
