| Prod Model: |
S1100E inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
0.10~400Hz |
| Control Method: |
V/F Control |
| Pid Control: |
Built-in Pid Control |
| Protective Structure: |
IP20 |
| Cooling Mode: |
Forced Air Cooling |
| Speed Range: |
1:100(SVC) |
| Application: |
High-performance Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Sanch |
Product Description

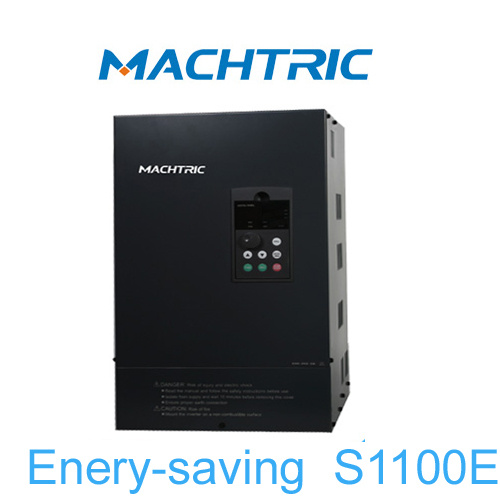

S1100E universal purpose speed motor inverter0.4kw-600kw
| |
I tems |
S 1100E |
Power
Supply |
Rated vo l tage , Frequency |
Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
Voltage Range |
220V:170V~240V ; 220V:170V~240V |
Output |
Voltage Range |
220V:0~220V ; 220V:0~240V |
Frequency Rang e |
0.10`400.00Hz |
Control method |
V/F control, Space vector control. |
I ndication |
Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
F re quency Setting Resolution |
Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output F re quency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading cond i tion; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional I nput
Terminal |
Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed s w itch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration time Setting |
0~- 6000 s acceleration/deceleration time can be set individually |
Other Functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input:0 to 10V,,0 to 20mA can be selected;
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Eight multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built -in 2group of counters |
Protection/
Warning Function |
Overload |
150%,60 second(Constant torque) ;120%.60 second (variable torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
Environment |
Ambient Temperature |
-10 °C to 40 °C (non-freezing) |
Ambient Humidity |
Max.95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Below 90KW:Wall Mounted; 110~200KW:Wall Mounted or in Cabinet; Above 220KW:in Cabinet |
Company Information
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business .
With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers.
At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers.
We try to provide wisdom, individual product solution.
Our Services
More than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the world.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service
Welcome to you any time visit our factory
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.

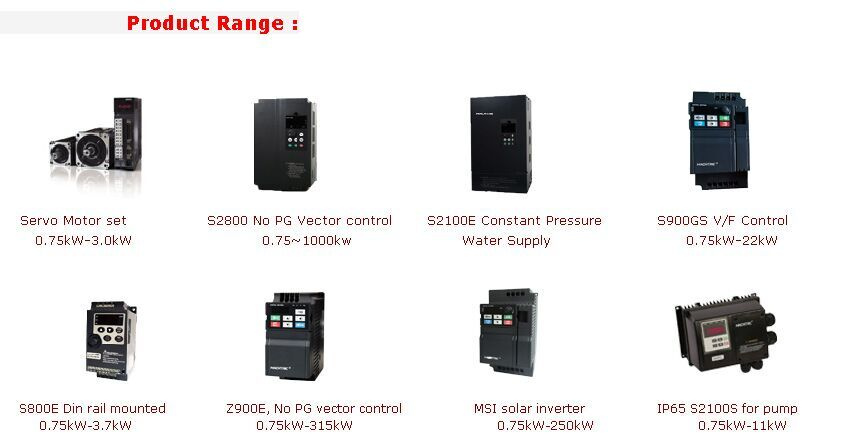

This includes products such as:
