S13-M Low Loss Energy Saving Oil-Immersed Power Distribution Transformer

Name: S13-M Low Loss Energy Saving Oil-Immersed Power Distribution Transformer
Brand: all-electronics-online.com
SKU: 723742872
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 5000-8000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S13
Application:	Rectifier
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zenele

Product Description

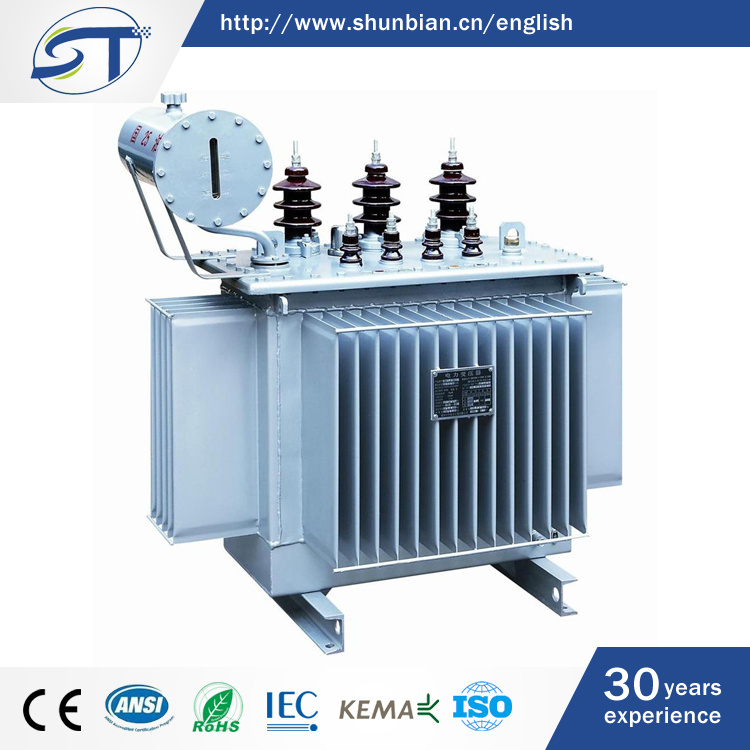

3-Phase Hermetically Seal Oil Immersed Distribution Transformer

Rated capacity: 10-4000kVA
High voltage: 11kv, 10.5kv, 10kv,6.3kv, 6kv
Low voltage: 0.4kV
Low loss and noisy
Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts
Oil tank is made by fine cold-rolled steel on an exclusive production-line
Corrugations can expand or contract according to the change of oil volume
Thus the inner space of transformer can be isolated from the air
which can reduce the aging speed of oil and prevent the insulation materials from damping
Oil-immersed transformer possesses a reliable operation and is free from maintenance

General Description:

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076

Parameters: Rated Voltage: 6kV~35kV.
Rated Capacity: 30-20000kVA.

Technical specification:

Rated Capacity (KVA)	Rated Voltage			Connection Symbol	No-load Loss (KW)	No-load Current (%)	75ºC (W) Load-Loss	Short Circuit Impedance (%)	Weight (Kg)	Boundary Dimension (mm)	Sound power Level (db)
	Rated Voltage								Weight (Kg)	Boundary Dimension (mm)
	H.V.	M.V.	L.V.						Equipment	LWH
	(KV)	(KV)	(KV)						Equipment	LWH
30	6 6.3 10 10.5 11	±5% or ±2×2.5%	0.4	Dyn11 Yyn0 Yzn11	80	0.3	630/600	4	330	800500850	35
50					100	0.24	910/870		380	820550850	35
63					110	0.23	1090/1040		410	835580850	35
80					130	0.22	1310/1250		430	840600880	36
100					150	0.21	1580/1500		460	860600890	36
125					170	0.2	1890/1800		590	1020660880	37
160					200	0.19	2310/2200		650	1035660950	38
200					240	0.18	2730/2600		710	1040680980	39
250					290	0.17	3200/3050		850	11407401010	40
315					340	0.16	3830/3650		970	11607601150	42
400					410	0.16	4520/4300		1130	12308001200	44
500					480	0.16	5410/5150		1335	13209001200	45
630				Dyn11 Yyn0	570	0.15	6200	4.5	1630	14209201230	46
800					700	0.15	7500		1950	148010001330	47
1000					830	0.14	10300		2205	160011001280	48
1250					970	0.13	12000		2565	165511351375	49
1600					1170	0.12	14500		3100	181512601450	49
2000					1550	0.11	18300	5	3785	192013051510	50
2500					1830	0.1	21200	5	4570	212014301575	50

Packing & Shipping:

Packaging Details: One unit per wooden case

Delivery Detail: 15-20 work days after the whole payment

After-sale & Warranty:
1.Warranty: 2 years. 1 year free replacement caused by quality problem.

Our Service:

1.OEM is available.

2.Customized solution & perfect after-sale service

3. For large order, Professional engineer go for on-site mainternace instructions.

Contact:

Since its founding in 1985, ST has been among leading manufacturers of high and low voltage electric products in Liushi, which is known as China Electric Capital. The company covers more than 500, 000 square meters of area.

ST is specialized in manufacturing of power transmission and distribution appliances, including power transformer, switchgear, breaker, reactor, cable and electric power tool, etc. As an ISO9001: 2000 quality system approved company, ST is known for its high quality products. The products also complies with IEC standard and other international standards.

Through years of its development, ST has expanded its business into more than 40 countries, The company attaches great importance to quality guarantee and customer satisfaction. Attributed to our reliable quality and perfect service, the company has won outstanding reputation from our clients all over the world. ST will continue to play an active role in the electric industry and to explore new opportunities of business with people all over the world on the principle of equality and mutual benefit.
