| Prod Model: |
S13 |
| Rated Capacity: |
500kVA |
| Rated Voltage: |
10kv-20kv |
| Vector Group: |
Dyn11 / Yyn0 |
| Material: |
Copper /Aluminum Winding |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi Electirc |
Product Description

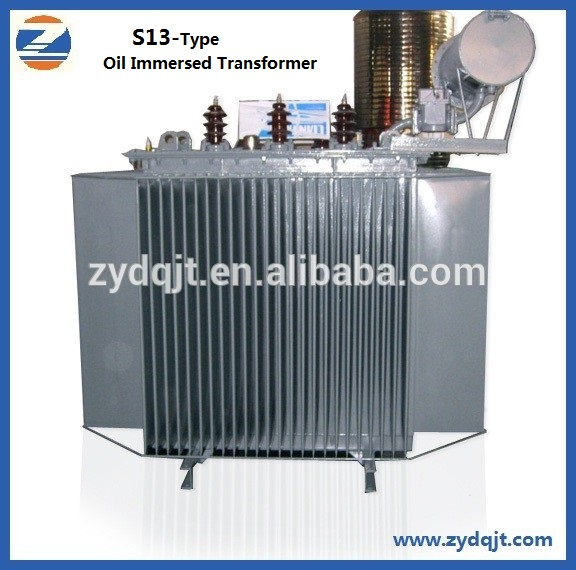

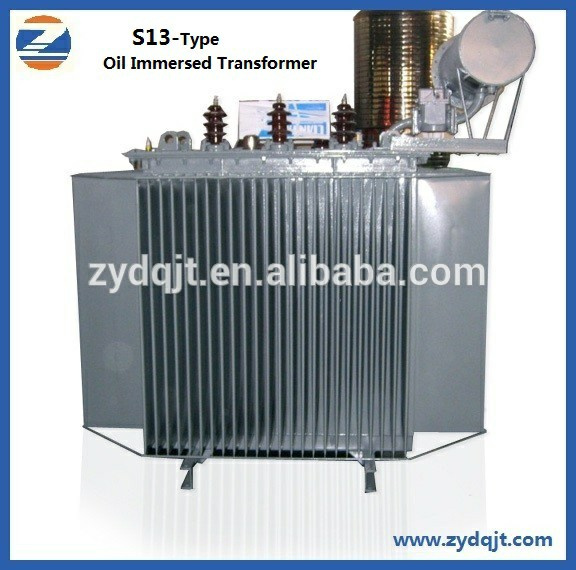

S13 Three-phase Oil immersed Pole Mounted Electrical Power Distribution Transformers :
The specification as follows :1.Advantages: a.The cancellation of oil conservator makes the transformer more convinient to use;
b.The replacement of oil tube into corrugated tank makes the transformer easier to cool;
c.The physical property of corrugated tank increases the reliability of the transformer;
d.The adoption of sanforizing makes sure the robustness of long distant transportation.
2.Applications: a.Mentallurgy and Petrifaction;
b.Electric power system.
3.Technical Parameters: Technical Parameters of S13 series of Three-phase oil Immersed Transformers
|
Model No. |
Rated Capacity
KVA
| Rated Voltage KV | Connection Group Symbol | Loss W |
No-load Current (%)
|
Impedance Voltage(%)
|
| | |
High Voltage KV |
Tapping Range of High Voltage |
Low Voltage KV | | No-load |
On Load | | |
| S13-M*R-30/10 | 30 |
10 |
±5%
±2x2.5% |
0.4 |
Dyn11
Yyn0 | 80 | 630/600 | 0.30 | 4.0 |
| S13-M*R-50/10 | 50 | | | | | 100 | 910/870 | 0.24 | |
| S13-M*R-80/10 | 80 | | | | | 130 | 1310/1250 | 0.22 | |
| S13-M*R-100/10 | 100 | | | | | 150 | 1580/1500 | 0.21 | |
| S13-M*R-160/10 | 160 | | | | | 200 | 2310/2200 | 0.19 | |
| S13-M*R-200/10 | 200 | | | | | 240 | 2730/2600 | 0.18 | |
| S13-M*R-250/10 | 250 | | | | | 290 | 3200/3050 | 0.17 | |
| S13-M*R-315/10 | 315 | | | | | 340 | 3830/3650 | 0.16 | |
| S13-M*R-400/10 | 400 | | | | | 410 | 4520/4300 | 0.16 | |
| S13-M*R-500/10 | 500 | | | | | 480 | 5410/5100 | 0.16 | |
| S13-M*R-630/10 | 630 | | | | | 570 | 6200 | 0.15 |
4.5 |
| S13-M*R-800/10 | 800 | | | | | 700 | 7500 | 0.15 | |
| S13-M*R-1000/10 | 1000 | | | | | 830 | 10300 | 0.14 | |
| S13-M*R-1250/10 | 1250 | | | | | 970 | 12000 | 0.13 | |
| S13-M*R-1600/10 | 1600 | | | | | 1170 | 14500 | 0.13 | |
Detailed Images:
Packing & Delivery : | SAFE, TIMELY, EFFICIENT |
| For the product: | Most value S9 type oil immersed three phase 10kv-20 kv power transformer, we normally use wooden case or steel frame to pack , the packing size is up to the different models. As for very big transformers, we will order special containers to ship them. OR AS YOUR ORDER. |
| packing Details: | Inner Plastic smocks or asphalt felt bag with desiccating agent,then wooden carton or frame steel . |
| Delivery Details: | If you buy standard type product : 5-12 work days .If you buy Customized products: As your purchasing quantity to decide . |
