| Prod Model: |
S2100E |
| Apply: |
Constant Water Supply |
| Special: |
Built in Pid Function |
| Work: |
with 5 Pumps |
| Voltage: |
380V |
| Power: |
7.5kw-110kw |
| Phase: |
3 Phase |
| Color: |
Black |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

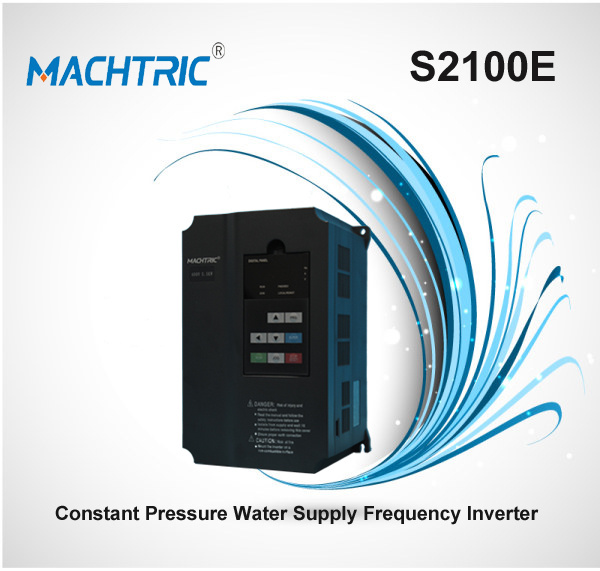

V/F control work with 5 pumps for constant water supply ac drives
Built in PID contorl
V/F control
0.1~400Hz
Control up to 4 pumps for constant pressure water supply
Variable Frequency Drive Variable Speed Drive Frequency Converter AC converter
Frequency Inverter AC Driver AC Drive AC Motor Drive VFD VSD Transistorized Drive
Power range: 5.5 kw -- 280 kw
Key features: Without any extra accessories can achieve to the target of constant Pressure water system with 4 water-pumps, have functions as: High And low limits of pressure, alarm when pressure is higher or lower Then limits, sleep wake, supply water regularly etc.
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Items |
S2100 E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
| Voltage Range | 380V:330V~440V; 220V:170V~240V |
| Output | Voltage Range | 380V:0~380V; 220V:0~220V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional Input
Terminal | Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration time Setting | 0~-6000s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;z
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Eight multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection
Warning Function | Overload | 150%,60 second(Constant torque);120%.60 second (variable torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Below 90KW:Wall Mounted;
110~200KW:Wall Mounted or in Cabinet;
Above 220KW:in Cabinet |
