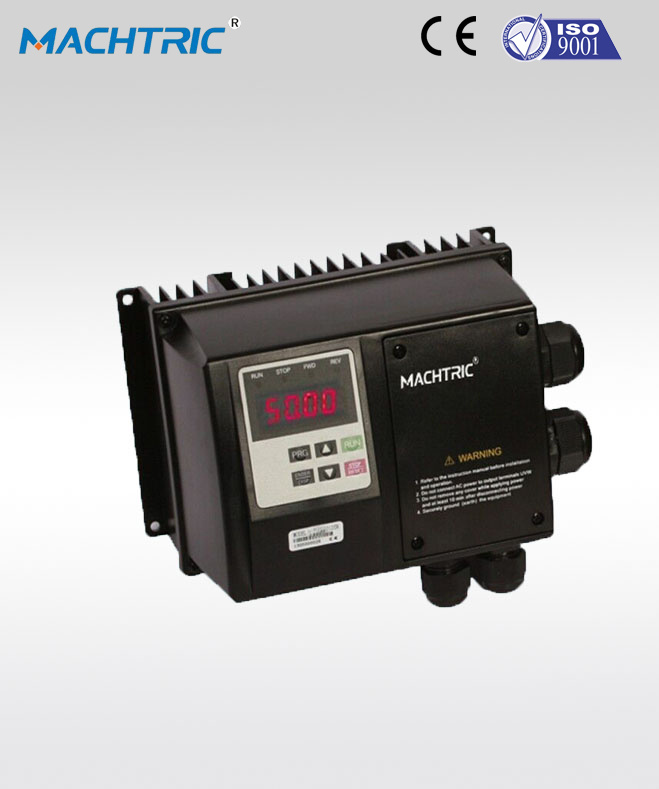

S2100s Frequency Inverter for Used in Water Pump
| Price: |
US $ 85/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.75kw~11kw |
| Protection Degree: |
IP65 |
| Phase: |
1/3 Phase |
| Control Mode: |
V/F Control |
| Export Markets: |
Global |
| Color: |
Black |
| Output Range Of Frequency: |
0.01~400.0Hz |
| Over Load Capacity: |
150% of Rated Output Current and Run for 65 Second |
| Voltage: |
220V/380V |
| Altitude: |
Lower Than 1000m |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
Protection: IP65
Power range: 0.4-11kw
Phase: 1/3 Phase
Input Voltage: 220V: 170~240V, 380V: 330~440V
Output Voltage: 220V: 170~240V, 380V: 330~440V
product specification:| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definition /interactive guidance;eg,frequency setting,the output frequency/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto raise torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing function including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zero speed,counter,external abnormality,program operation and other information and warnings |
| | |
8 multifunitinal output terminals, 1 inverter can control 4 circular variable frequency pumps |
| | Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
Other
functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function (MODBUS) |
| Frequency Setting | Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| Multi-sVPed | Eight multifunction input terminals,15 section sVPed can be set |
| Automatic Voltage regulation | Automatic Voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Overload | 120%,60second (variable torque) |
| Over Voltage | Over Voltage protection can be set |
| Under Voltage | Under Voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000. |
| Vibration | Max. 0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
| Protective Structure | IP 65 |
| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |
| Model | W | H | D | A | B | d | N.W (kg) |
| S2100-2S0.75GS | 188 | 122 | 134 | 105 | 178 | M4 | 1.6 |
| S2100-2S1.5GS |
| S2100-2S2.2GS |
| S2100-4T0.75GS | 188 | 122 | 134 | 105 | 178 | M4 | 1.6 |
| S2100-4T1.5GS |
| S2100-4T2.2GS |
| S2100-4T3.7GS | 235 | 154 | 179 | 125 | 221 | M4 | 2.9 |
| S2100-4T5.5GS | 3.0 |
| S2100-4T7.5GS | 3.0 |
| S2100-4T11GS | 3.1 |
| S2100-4T15GS | 285 | 180 | 200 | 150 | 275 | M5 | 4.5 |
| S2100-4T18.5GS |
certification
We are professional manufacturer supplying with industrial automation products. with the support of our R&D, system engineering and the advantage of the abundant international resources, we have solved many problems by our engineer for different application. We would like to be one of the most popular industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products have been broadly applied in Textile, Packing, plastic, ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We keep on promoting efficiently the competition ability of the technique, quality, service and positive take part in the project of energy program and productivity promotion in industry field. We work hard in environment protection in return for society.
FAQ
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, CASH
2. What's the delivery time ?
Usually it will take about two - three weeks for production .It depends on your quanlity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. what kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your autherization.
6.Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc. Any interested in our items, don't hesitate to contact me.
