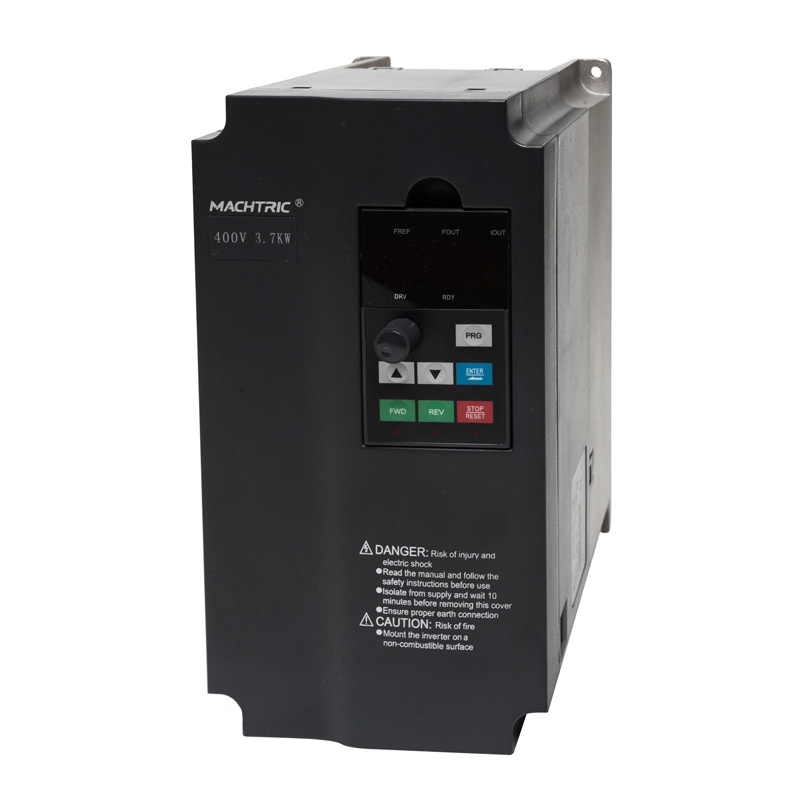

| Prod Model: |
S2800E ac drive |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
Vector Control |
| Power Rate: |
0.75-160kw |
| AC Drive: |
AC Motor Drives |
| VSD: |
Variable Speed Drive |
| VFD: |
Variable Frequency Drive |
| Voltage: |
380V |
| Phase: |
1 / 3 Phases |
| Size: |
Different Size |
| Weight: |
Different Weight |
| Certifications: |
CE, ISO9001 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
| Brand: |
Machtric |
Product Description
Machtric"
Focused on Customer Automation Soultion & Represents
Machtric --------------------"We care for your business"
Specifications:
Model |
S2800 E |
Input |
Rated Voltage& Frequency |
Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
Voltage Allowable Range |
220/380±15% |
Output |
Output Voltage Range |
1~rated input voltage |
Output Frequency Range |
0~600Hz |
|
Control Mode |
Sensorless Vector Control, V/F control |
Technic |
Overload Capacity |
150% rated current in 60s; 180% rated current in 10s |
Start Torque |
0.5Hz/150% with vector senserless control |
Adjustment Ratio |
1:100 with vector senserless control |
Speed Control Accuracy |
Maximum speed±0.5% with vector senserless control |
Carrier Frequency |
0.5~15Hz |
Terminal |
Programmable Digital Input |
4 terminals |
Programmable Analog Input |
FIV:0~10V, FIC:0~10V or 0~20mA |
Coupling Output |
1 set |
Relay Output |
1 set |
Analog Output |
1 set-option of 4~20mA/ 0~10V |
Function |
Frequency Setting |
Digital, Analog, Series communication, Multi-Speed, PID, etc |
PID Function |
Built in |
Multi-speed Function |
8 speeds |
Adjustable frequency |
Stable frequency |
Off Power |
Keep running in power off instantly |
Jog Key Function |
Multi-function setting by Users |
Voltage Adjustment |
Auto maintain output voltage stable in changing of power |
Failure Protection |
25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc, |
Company informations:
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series
Dedicated series: S100 series, S200 series(circular knitting machine),
3. Soft starter: CSX series, CSXi series, IMS2 series, MVS series;
4. Power controller: SPC3 series;
5. Intelligent control meter: Counter CU, Counter CA, length signal generator, rotate speed meter;
6. Peripheral: three-color light, signal amplifier
7. Control system of integrative machine: SGP series
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
