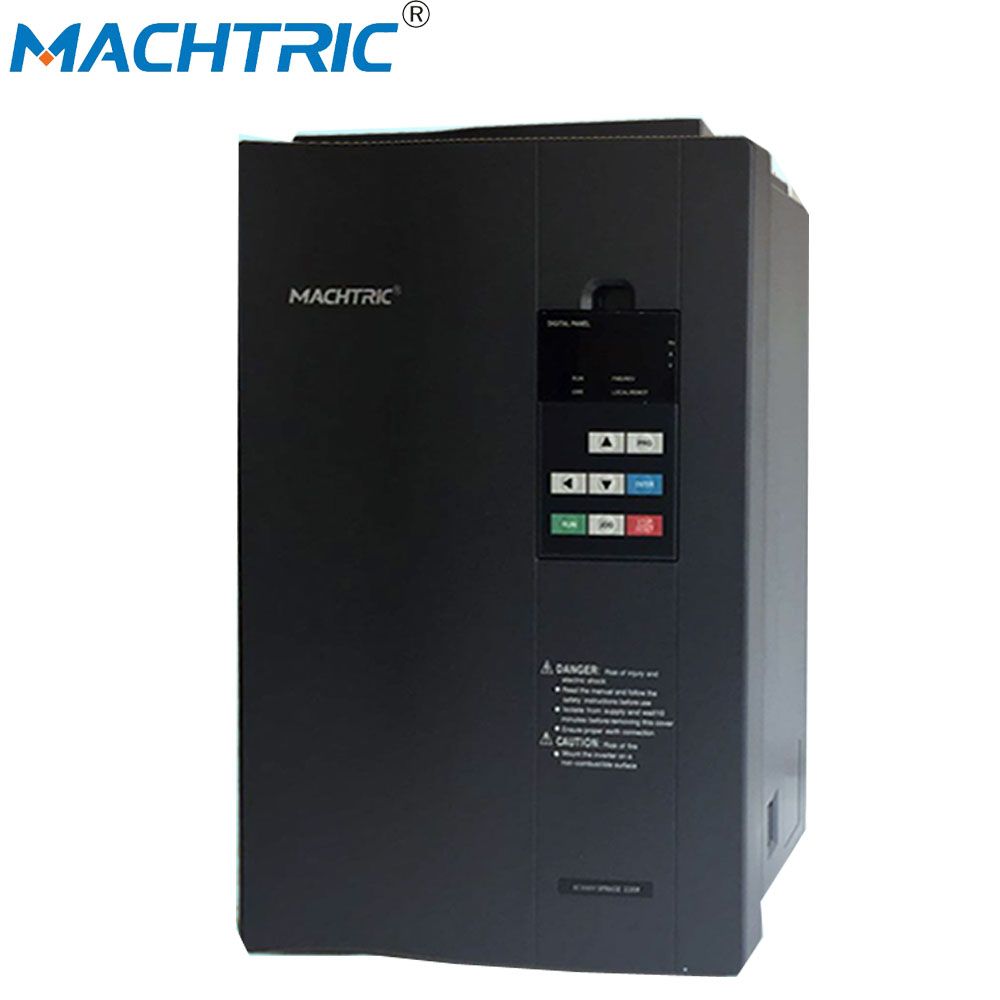

S2800e Series AC Drive Frequency Inverter for Wide Use
| Price: |
US $ 119/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
s2800E |
| AC Drive: |
AC Motor Drives |
| Control Mode: |
Vector Control |
| VSD: |
Variable Speed Drive |
| VFD: |
Variable Frequency Drive |
| Voltage: |
220V, 380V |
| Phase: |
1 / 3 Phases |
| Size: |
Different Size |
| Power Rate: |
0.75-160kw |
| Weight: |
Different Weight |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Brand: |
Machtric |
| Main Circuit Type: |
AC-DC-AC |
Product Description
S2800E series AC drive frequency inverter for wide use
Specification:| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Wiring diagram
