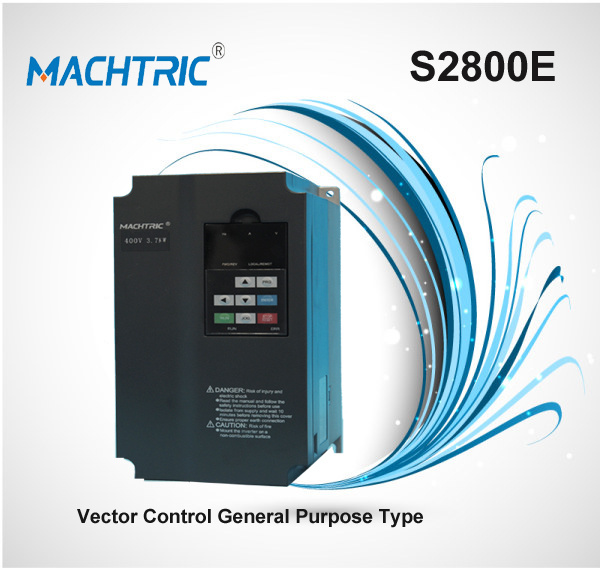

| Prod Model: |
S2800E |
| Markets: |
North America,South America,Southeast Asia |
| Control Mode: |
Vector Control |
| AC Drive: |
AC Motor Drives |
| Phase: |
1 / 3 Phases |
| Power Rate: |
0.75-160kw |
| VFD: |
Variable Frequency Drive |
| Voltage: |
380V |
| VSD: |
Variable Speed Drive |
| Size: |
Different Size |
| Weight: |
Different Weight |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
| Brand: |
Machtric |
Product Description
ADVANTAGE OF PRODUCTS:
- Monthly production capacity more than 10000 units.
- Customized specification is accepted.
- implement strict quality testing and control procedure to make superior quality.
- Delivery: 3-7 days after payment
- Certification: ISO 9001, ISO14001, OHSAS18001 & CE
Additional information
Delivery time: Less than 7 working days after got the payment
Payment: 100% TT or western union
Warranty: Without warranty for end user, 12 months for agency
Delivery: By courier or by air or by sea
Certification of products: CE
OEM & ODM are support ( we ODM for Japan FUJI& India Jeltron )
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Specification
| Model | Input voltage | Power(kw) | Current(A) |
| S2800-2T0.4GE | Single-phase 220V | 0.4 | 5.4 |
| S2800-2T3.7GE | Single-phase 220V | 3.7 | 35 |
| S2800-4T11GE | Three-phase 380V | 11 | 26 |
| S2800-4T18.5GE | Three-phase 380V | 18.5 | 38 |
| S2800-4T55GE | Three-phase 380V | 55 | 105 |
| S2800-4T160GE | Three-phase 380V | 160 | 290 |
