| Prod Model: |
S2800 E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Brand Name: |
Machtric |
| Model Number: |
Mc2800e |
| Output Power: |
0.75kw-1000kw |
| Output Frequency: |
0~600Hz |
| Multi-Speed Function: |
8 Speeds |
| Output Current: |
90A, 90 a |
| Programmable Analog Input: |
4 Terminals |
| Keyword: |
Vector Control Variable Torque Inverter |
| AC Varibale Frequency Drive: |
AC Varibale Frequency Drive |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description

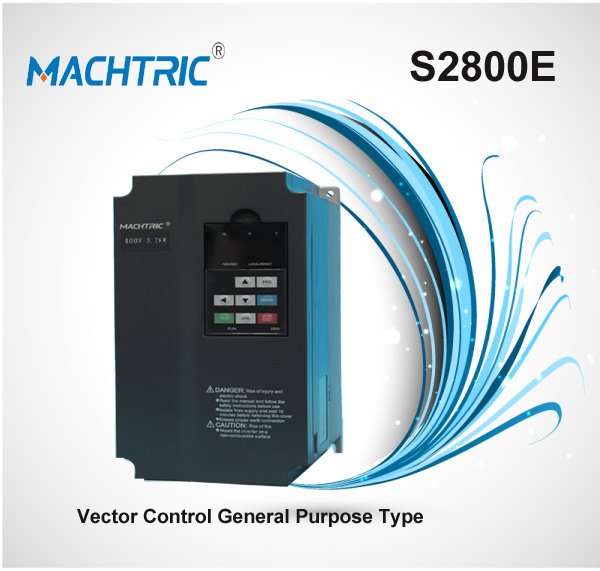

S2800 E Series Vector
Control Inverter
Excellent Quality, Perfect Performance
Product specification
Target market of S2800 E series Inverter
Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation. etc
Textile equipment
Technology Features
I/O features
Programmable Digital Input:
Provide 4 terminals which can accept ON-OFF inputs
Programmable Analog Input:
FIV: Can accept input of 0 ~10V; FIC: Can accept input of 0~10V or 0~20mA.
Programmable Open Collector Output:
Provide 1 output terminal (open collector output or high-speed pulse output)
Relay Output: Provide 1 output terminal.
Analog Output: Provide 1 analog output terminal, whose output scope can be 0/4~20 mA or 0~10 V, as chosen...
Main Control Function
Control Mode: Sensorless Vector Control (SVC), V/F Control.
Overload Capacity:
60s with 150% of rated current, 10s with 180% of rated current.
Starting Torque: 150% of rated torque at 0.5Hz (SVC).
Speed Adjusting Range: 1: 100 (SVC)
Speed Accuracy: ± 0.5% of maximum speed (SVC)
Carrier Frequency: 0.5kHz ~15.0kHz.
Reference Frequency Source: Keypad, analog input, serial communication, multi-step speed, PID and so on. The combination of multi- modes and switching between different modes can be realized.
Torque Control Function: Provide multiple torque setting source.
PID Control Function
Multi-Step Speed Control Function: 8 steps speed can be set.
Traverse Control Function
None-Stop when instantaneous power off.
Speed trace Function: Start the running motor smoothly.
JOG Key: User defined shortcut key can be realized.
Automatic Voltage Regulation Function:
Automatically keep the output voltage stable when input voltage fluctuating.
Up to 25 fault protections:
Protect from over current, over voltage, under voltage, over heat, phase failure, over load etc
Excellent Quality
Perfect performance
Multi-speed
Built in PID
0.5-15K Hz
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380 ±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Control Mode | Sensorless Vector Control, V/F control |
| Techinc | Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ± 0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID, etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc, |
