S3-Asd-1, S3-VSD-1: AC Current, Voltage Transducer (SELF POWERED)

Name: S3-Asd-1, S3-VSD-1: AC Current, Voltage Transducer (SELF POWERED)
Brand: all-electronics-online.com
SKU: 754982415
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 230/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S3-ASD-1, S3-VSD-1, N3-ASD-1, N3-VSD-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material:	Black Plastic-Shell
G.W:	1.5g
Input:	0-5A
Output:	4-20mA
Manufacturers:	Haiyan Jinhan Electronic Technology Co.,Ltd

Product Description

FEATURES:
Accuracy: ± 0.25% RO.
Aux. power source is not required
High impulse & surge protection (5KV)
The case can be mounted on a 35mm rail which complies with DIN 46277

DESCRIPTION:
Model: S3-ASD-1, N3-ASD-1 1φCURRENT input
S3-VSD-1, N3-VSD-1   3φVOLTAGE input
Models that can be exchanged:
N3-ASD-1, N3-ASD-1 1φCURRENT input
N3-VSD-1, N3-VSD-1   3φVOLTAGE input
S(T)3-ASD-1, N3-ASD-1 1φCURRENT input
S(T)3-VSD-1, N3-VSD-1   3φVOLTAGE input

These Transducer converting a sinusoidal alternating current or voltage into a dc output, proportional to the RMS value of input. These units are average sensing, but RMS calibrated for a sine wave with less than 1% distortion. The input signal is converted to a dc voltage which then feeds to a single stage amplifier and a dc output produced.

SPECIFICATION

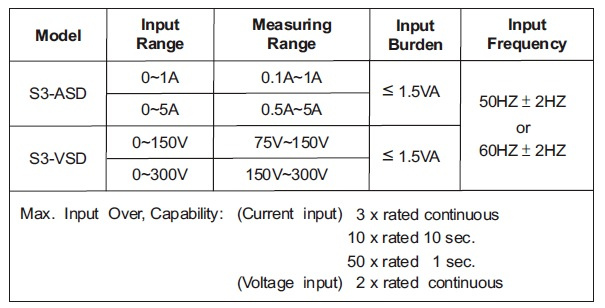

INPUT

The models of this series are as follows:

Product	Model No.
AC current transducer	N3-AD-1
AC current transducer	S3(T)-AD-1
AC current transducer	S3-AD-1
single phase voltage transducer	N3-VD-1
single phase voltage transducer	S3(T)-VD-1
single phase voltage transducer	S3-VD-1
AC current transducer	N3-AD-1S
AC current transducer	S3(T)-AD-1S
AC current transducer	S3-AD-1S
Ac voltage transducer	N3-VD-1S
Ac voltage transducer	S3(T)-VD-1S
Ac voltage transducer	S3-VD-1S
Power controller	N3(T)-∑WR(S)
Power controller	S3-∑WR(S)
Power controller	S3(T)-∑WR(S)
Frequency transmitter	NS-FD
Frequency transmitter	S3-FD
Frequency transmitter	S3(T)-FD
3 phase 3 wire reactive & current transducer	N3-RAD
3 phase 3 wire reactive & current transducer	S3(T)-RAD
3 phase 3 wire reactive & current transducer	S3-RAD
three phase AC current transducer	N3-AD-3
three phase AC current transducer	S3(T)-AD-3
three phase AC current transducer	S3-AD-3
three phase Ac voltage transducer	N3-VD-3
three phase Ac voltage transducer	S3(T)-VD-3
three phase Ac voltage transducer	S3-VD-3
3 phase 3 wire Power factor transducers	N3-PD-3
3 phase 3 wire Power factor transducers	S3(T)-PD-3
3 phase 3 wire Power factor transducers	S3-PD-3
Negative sequence current transducer	N3-AND-3
3 phase 3 wire var-hour transducer	S3-RHD-3
3 phase 3 wire var-hour transducer	N3-RHD-3
3 phase 3 wire var-hour transducer	S3(T)-RHD-3
Reactive power transducer	S3-RD-3S
Reactive power transducer	N3-RD-3S
3 phase 3 wire var & var-hour transducer	S3-RHR-3
3 phase 3 wire var & var-hour transducer	N3-RHR-3
3 phase 3 wire var & var-hour transducer	S3(T)-RHR-3
3 phase 3 wire var transducer	S3-RD-3
3 phase 3 wire var transducer	N3-RD-3
3 phase 3 wire Phase Angle transducer	S3-UD-3
3 phase 3 wire Phase Angle transducer	N3-UD-3
3 phase 3 wire Phase Angle transducer	S3(T)-UD-3
3 phase 3 wire watt-hour transducer	S3(T)-WHD-3
3 phase 3 wire watt-hour transducer	N3-WHD-3
3 phase 3 wire watt-hour transducer	S3-WHD-3
3 phase 3 wire var transducer(2 output)	S3(T)-WD-3S
3 phase 3 wire var transducer(2 output)	N3-WD-3S
3 phase 3 wire var transducer(2 output)	S3-WD-3S
3 phase 3 wire active & current transducer	N3-WAD
3 phase 3 wire active & current transducer	S3(T)-WAD
3 phase 3 wire active & current transducer	S3-WAD
3 phase 3 wire unbalanced load watt & var transducer	S3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducer	N3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducer	S3(T)-RD-3(3T)
3 phase 3 wire watt & watt-hour transduce	S3(T)-WHW-3
3 phase 3 wire watt & watt-hour transduce	N3-WHW-3
3 phase 3 wire watt & watt-hour transduce	S3-WHW-3
3 phase 3 wire unbalanced load watt transducer	N3-WD-3
3 phase 3 wire unbalanced load watt transducer	S3(T)-WD-3
3 phase 3 wire unbalanced load watt transducer	S3-WD-3
3 phase 4 wire Power factor transducers	N3-PD-3A
3 phase 4 wire Power factor transducers	S3(T)-PD-3A
3 phase 4 wire Power factor transducers	S3-PD-3A
Negative sequence current transducer	N3-AND-3A
3 phase 4 wire var-hour transducer	S3-RHD-3A
3 phase 4 wire var-hour transducer	N3-RHD-3A
3 phase 4 wire var-hour transducer	S3(T)-RHD-3A
3 phase 4 wire var transducer(2 output)	S3-RD-3AS
3 phase 4 wire var transducer(2 output)	N3-RD-3AS
3 phase 4 wire var transducer(2 output)	S3(T)-RD-3AS
3 phase 4 wire var & var-hour transducer	S3-RHR-3A
3 phase 4 wire var & var-hour transducer	N3-RHR-3A
3 phase 4 wire var & var-hour transducer	S3(T)-RHR-3A
3 phase 4 wire var transducer	S3-RD-3A
3 phase 4 wire var transducer	N3-RD-3A
3 phase 4 wire var transducer	S3(T)-RD-3A
3 phase 4 wire Phase Angle transducer	S3-UD-3A
3 phase 4 wire Phase Angle transducer	N3-UD-3A
3 phase 4 wire Phase Angle transducer	S3(T)-UD-3A
3 phase 4 wire watt-hour transducer	S3(T)-WHD-3A
3 phase 4 wire watt-hour transducer	N3-WHD-3A
3 phase 4 wire watt-hour transducer	S3-WHD-3A
3 phase 4 wire watt transducer(2 output)	S3(T)-WD-3AS
3 phase 4 wire watt transducer(2 output)	S3-WD-3AS
3 phase 4 wire watt transducer(2 output)	N3-WD-3AS
3 phase 4 wire unbalanced load watt & var transducer	S3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducer	N3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducer	S3(T)-RD-3AT
3 phase 4 wire watt & watt-hour transducer	S3(T)-WHW-3A
3 phase 4 wire watt & watt-hour transducer	N3-WHW-3A
3 phase 4 wire unbalanced load watt transduce	S3(T)-WD-3A
3 phase 4 wire unbalanced load watt transduce	N3-WD-3A
3 phase 4 wire unbalanced load watt transduce	S3-WD-3A
3 phase AC current transducer	N3-AD-3T
3 phase AC current transducer	S3(T)-AD-3T
3 phase AC current transducer	S3-AD-3T
3 phase Ac voltage transducer	N3-VD-3T
3 phase Ac voltage transducer	S3(T)-VD-3T
3 phase Ac voltage transducer	S3-VD-3T
Temperature transmitter	S4X-DT
Temperature transmitter	S3(T)-TT-R
Temperature transmitter	S3-TT-R
Temperature transmitter	N3-TT-R
Reactive power transducer	S3(T)-RD-3S
Reactive power transducer	S3(T)-RD-3
Phase Angle transducer	N3-UD-1
Phase Angle transducer	S3(T)-UD-1
Phase Angle transducer	S3-UD-1
3 phase 4 wire watt & watt-hour transducer	S3-WHW-3A
Dc isolation transducer	NS-DT
Dc isolation transducer	S3(T)-DT
Dc isolation transducer	S3-DT
Dc isolation transducer	S4X-DT
