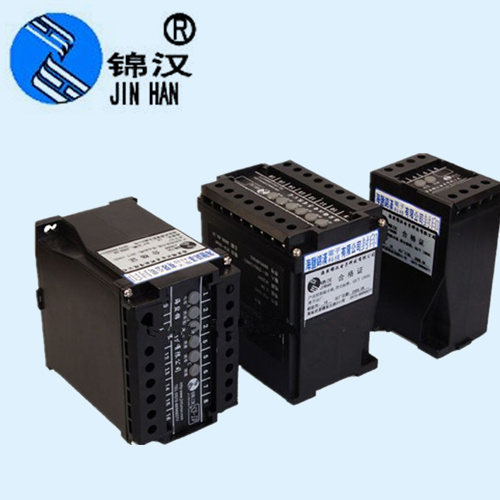

S3 Single Phase Active Power Transmitter

S3 Single Phase Active Power Transmitter
Price: US $ 230/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: S3(T)-WD-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturers: Haiyan Jinhan Electronic Technology Co.,Ltd
Shell Material: Black Plastic-Shel
MOQ: 1 Piece
Export Markets: Global
Installation: 35mm DIN Sliding-Way
Input: Current/Voltage
Power: AC/DC
Delivery: One Week
Freight: by Aur
After Service: Six Years

Product Description


S4 high reliability DC Transmitter
Product Details
Basic Info.
Model NO.:S3(T)-WD-1

Output Signal Type:Analog Output
Type:Electromagnetic

Production Process:Integration
Application:Switching Power Supply

Material:Black plastic shell
Accuracy Grade:0.2G

Product Description
Three phase AC current voltage Transducer

Function & Feature
Transforms the measured AC current/voltage to the DC current/voltage output according to the linear scale
Excellent temperature characteristic and good working stability
Configuration compactness and briefness

Technical Index

StandardGB/T 13850-1998, IEC688:1992
Accuracy0.2%, 0.5%
Consumption≤5VA
Accutacy driftAnnual Variation < 0.2%
Insulation VoltageAC 2kV/min.1mA (Between Input ~ Output / Power)
Insulation Resistance≥20MΩ (DC500V)
Surge voltage5KV (Peak Value), 1.2/50μs
Response Time≤350ms
Input RangeAC 0~10A ,AC 0~500V(Optional), 50/60Hz
Absorbed Power<0.5VA/450V, <0.2VA/100V, <0.1VA/5A
OverloadCurrent: 2 times continuous,30 times /1s .Voltage: 2 times continuous
Load ResistanceCurrent output: RL≤550Ω
Voltage output: RL≥2kΩ
Working environmentTemperature: -10~50
RH: 20~90%, Without condensation
Storage conditionsTemperature: -40~70
RH: 20~95%, Without condensation
Installation35mm DIN Sliding-way or M4 screws
Dimension110mm×75mm×120mm


The models of this series are as follows:
ProductModel No.
AC current transducerN3-AD-1
AC current transducerS3(T)-AD-1
AC current transducerS3-AD-1
single phase voltage transducerN3-VD-1
single phase voltage transducerS3(T)-VD-1
single phase voltage transducerS3-VD-1
AC current transducerN3-AD-1S
AC current transducerS3(T)-AD-1S
AC current transducerS3-AD-1S
Ac voltage transducerN3-VD-1S
Ac voltage transducerS3(T)-VD-1S
Ac voltage transducerS3-VD-1S
Power controllerN3(T)-∑WR(S)
Power controllerS3-∑WR(S)
Power controllerS3(T)-∑WR(S)
Frequency transmitterNS-FD
Frequency transmitterS3-FD
Frequency transmitterS3(T)-FD
3 phase 3 wire reactive & current transducerN3-RAD
3 phase 3 wire reactive & current transducerS3(T)-RAD
3 phase 3 wire reactive & current transducerS3-RAD
three phase AC current transducerN3-AD-3
three phase AC current transducerS3(T)-AD-3
three phase AC current transducerS3-AD-3
three phase Ac voltage transducerN3-VD-3
three phase Ac voltage transducerS3(T)-VD-3
three phase Ac voltage transducerS3-VD-3
3 phase 3 wire Power factor transducersN3-PD-3
3 phase 3 wire Power factor transducersS3(T)-PD-3
3 phase 3 wire Power factor transducersS3-PD-3
Negative sequence current transducerN3-AND-3
3 phase 3 wire var-hour transducerS3-RHD-3
3 phase 3 wire var-hour transducerN3-RHD-3
3 phase 3 wire var-hour transducerS3(T)-RHD-3
Reactive power transducerS3-RD-3S
Reactive power transducerN3-RD-3S
3 phase 3 wire  var & var-hour transducerS3-RHR-3
3 phase 3 wire  var & var-hour transducerN3-RHR-3
3 phase 3 wire  var & var-hour transducerS3(T)-RHR-3
3 phase 3 wire var transducerS3-RD-3
3 phase 3 wire var transducerN3-RD-3
3 phase 3 wire Phase Angle transducerS3-UD-3
3 phase 3 wire Phase Angle transducerN3-UD-3
3 phase 3 wire Phase Angle transducerS3(T)-UD-3
3 phase 3 wire watt-hour transducerS3(T)-WHD-3
3 phase 3 wire watt-hour transducerN3-WHD-3
3 phase 3 wire watt-hour transducerS3-WHD-3
3 phase 3 wire var transducer(2 output)S3(T)-WD-3S
3 phase 3 wire var transducer(2 output)N3-WD-3S
3 phase 3 wire var transducer(2 output)S3-WD-3S
3 phase 3 wire active & current transducerN3-WAD
3 phase 3 wire active & current transducerS3(T)-WAD
3 phase 3 wire active & current transducerS3-WAD
3 phase 3 wire unbalanced load watt & var transducerS3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducerN3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducerS3(T)-RD-3(3T)
3 phase 3 wire  watt & watt-hour transduceS3(T)-WHW-3
3 phase 3 wire  watt & watt-hour transduceN3-WHW-3
3 phase 3 wire  watt & watt-hour transduceS3-WHW-3
3 phase 3 wire unbalanced load watt transducerN3-WD-3
3 phase 3 wire unbalanced load watt transducerS3(T)-WD-3
3 phase 3 wire unbalanced load watt transducerS3-WD-3
3 phase 4 wire Power factor transducersN3-PD-3A
3 phase 4 wire Power factor transducersS3(T)-PD-3A
3 phase 4 wire Power factor transducersS3-PD-3A
Negative sequence current transducerN3-AND-3A
3 phase 4 wire var-hour transducerS3-RHD-3A
3 phase 4 wire var-hour transducerN3-RHD-3A
3 phase 4 wire var-hour transducerS3(T)-RHD-3A
3 phase 4 wire var transducer(2 output)S3-RD-3AS
3 phase 4 wire var transducer(2 output)N3-RD-3AS
3 phase 4 wire var transducer(2 output)S3(T)-RD-3AS
3 phase 4 wire  var & var-hour transducerS3-RHR-3A
3 phase 4 wire  var & var-hour transducerN3-RHR-3A
3 phase 4 wire  var & var-hour transducerS3(T)-RHR-3A
3 phase 4 wire  var transducerS3-RD-3A
3 phase 4 wire  var transducerN3-RD-3A
3 phase 4 wire  var transducerS3(T)-RD-3A
3 phase 4 wire Phase Angle transducerS3-UD-3A
3 phase 4 wire Phase Angle transducerN3-UD-3A
3 phase 4 wire Phase Angle transducerS3(T)-UD-3A
3 phase 4 wire watt-hour transducerS3(T)-WHD-3A
3 phase 4 wire watt-hour transducerN3-WHD-3A
3 phase 4 wire watt-hour transducerS3-WHD-3A
3 phase 4 wire watt transducer(2 output)S3(T)-WD-3AS
3 phase 4 wire watt transducer(2 output)S3-WD-3AS
3 phase 4 wire watt transducer(2 output)N3-WD-3AS
3 phase 4 wire unbalanced load watt & var transducerS3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducerN3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducerS3(T)-RD-3AT
3 phase 4 wire watt & watt-hour transducerS3(T)-WHW-3A
3 phase 4 wire watt & watt-hour transducerN3-WHW-3A
3 phase 4 wire unbalanced load watt transduceS3(T)-WD-3A
3 phase 4 wire unbalanced load watt transduceN3-WD-3A
3 phase 4 wire unbalanced load watt transduceS3-WD-3A
3 phase AC current transducerN3-AD-3T
3 phase AC current transducerS3(T)-AD-3T
3 phase AC current transducerS3-AD-3T
3 phase Ac voltage transducerN3-VD-3T
3 phase Ac voltage transducerS3(T)-VD-3T
3 phase Ac voltage transducerS3-VD-3T
Temperature transmitterS4X-DT
Temperature transmitterS3(T)-TT-R
Temperature transmitterS3-TT-R
Temperature transmitterN3-TT-R
Reactive power transducerS3(T)-RD-3S
Reactive power transducerS3(T)-RD-3
Phase Angle transducerN3-UD-1
Phase Angle transducerS3(T)-UD-1
Phase Angle transducerS3-UD-1
3 phase 4 wire watt & watt-hour transducerS3-WHW-3A
Dc isolation transducerNS-DT
Dc isolation transducerS3(T)-DT
Dc isolation transducerS3-DT
Dc isolation transducerS4X-DT
