                    ACTIVE POWER (WATT) TRANSDUCER

FEATURES:

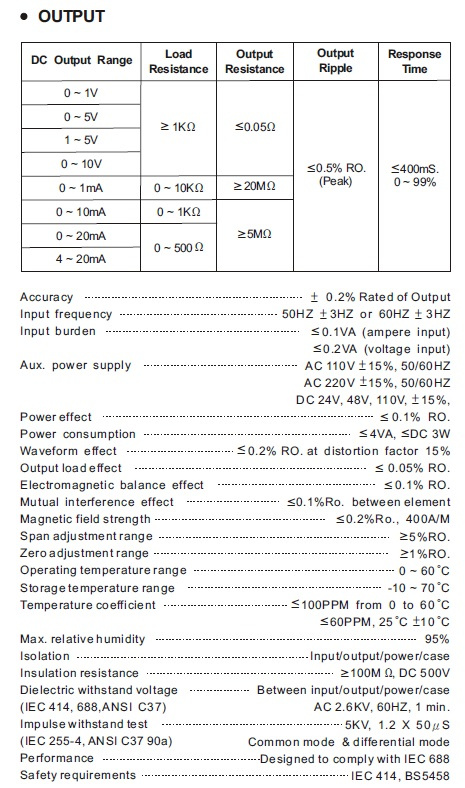

Accuracy: ± 0.2% RO.
Excellent  long  term  stability (4 ~ 20mA, 500 W)
Precision  measurement  even  for  unbalance system
Precision  measurement  even  for  distorted  wave
Measuring  reverse  watt  is  available
High  impulse  &  surge  protection (5KV)
The case can be mounted on a 35mm rail which complies with DIN 46277


DESCRIPTION:

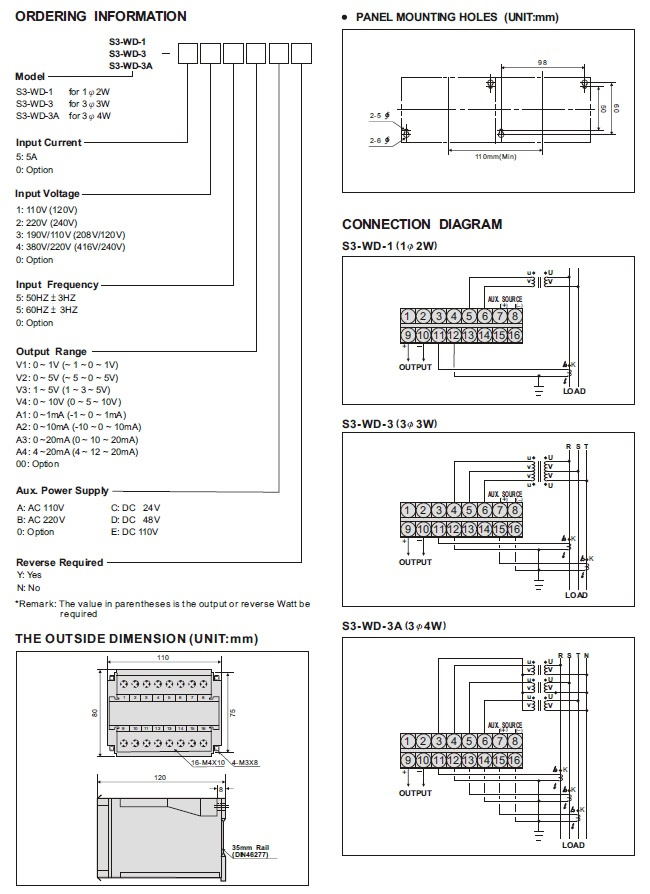

Model:
    S3-WD-1    1φ2W, active    power    (WATT)
    S3-WD-3    3φ3W, active    power    (WATT)
    S3-WD-3A    3φ4W, active  power  (WATT)
Models that can be exchanged:
   N3-WD-1    1φ2W, active    power    (WATT)
   N3-WD-3    3φ3W, active    power    (WATT)
   N3-WD-3A    3φ4W, active  power  (WATT)

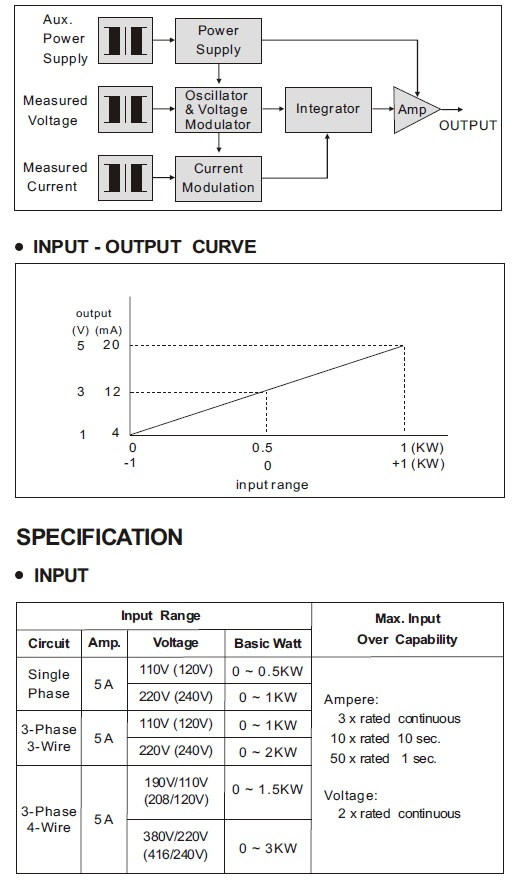

A wide range of transducers to measure all forms of active power, in both balanced and unbalanced, single or 3 phase system. They utilize the well prove "time division multiplication" method of measuring instantaneous power over a wide range of input waveforms.The  circuit  diagram  shown    measured  voltage  is  modulated  by  circuit of    an  oscillator.  Square  wave  pulses  from  a    multi-vibrator circuit, with a    mark - space  ratio varied    by  the  measured    voltage  and  amplitued  by the measured current, are fed to an integrator an output amplification circuit. The dc signal produced is then directly proportional to power input - Watts.
