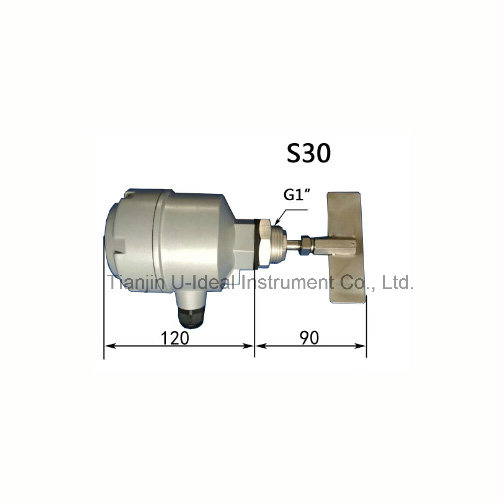

S30 Rotating Paddle Level Switch

S30 Rotating Paddle Level Switch
Price: US $ 39/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: S30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Requirement: 220VAC /110VAC/24VAC/24VDC
Contact Capacity: 250VAC/10A
Switch Type: Spdt
Electrical Rating: 4W
Vane Rotation Speed: 1rpm
Sensibility: ≥0.5g/cm3
Working Temperature: -10-80centigrade Max400
Wires: Two-Wires
Standard: Standard
Certification: GS
Type: Rotating Paddle Switch
Principle: Rotating Paddle
Application: Cement, Plastic Granulate and Wood Chips
Size: Customized

Product Description

Products Description

Rotary paddle level switch is used for solid materials(including powder, massive, granular, gel, etc.) It has outstanding features such as good sealing, strong overload capacity, lightweight and easy to install, large output contacts capacity, etc. In view of the different Specific Gravity of material can be done by adjustable tension of the spring, contact material part of its full stainless steel material. Rotary paddle level switch in the chemical, plastic, cement, medicine, feed, food and other industries widely used.

Technical parameters

  1. Power supply: 220VAC/110VAC/24VAC/24VDC
  2. Contact capacity:       250VAC/10A SPDT
  3. Power:                        4W
  4. blade rotation speed: 1RPM
  5. Torque :                      1.0kg×cm
  6. Material Specific Gravity:   ≥0.5g/cm3
  7. Working temperature: -10ºC-80ºC; Maximum temperature 400ºC
  8. Insulation resistance:     ≥100MΩ
  9. Dielectric strength:        1500V*1min
  10. IP Grade:                    IP65
  11. Blade Material:           SS304

Model Selection

Model 1S10-_ (for Specific Gravity<0.8g/cm3), also named small switch



Connecting Shaft
CStandard thread type installation
FStandard Flange type installation
ZShaft protection tube type
GHigh temperature thread type
GFHigh temperature Flange type
GZHigh temperature Shaft protection tube type

Blade shape
A85*35
B20*80   decomposable Blades
XDouble 85*35 Cross Blades
Blade shape:1220VAC
224VDC

Model 2S-3_  (Specific Gravity>0.8g/cm3), also called big switch



Connecting Shaft type
0Standard thread type installation
1Standard Flange type installation
2Shaft protection tube type
3High temperature thread type
4High temperature Flange type
 5High temperature protection tube type
6Shaft length adjustable type
8Steel cable type


Blade shape
A100*30(W x H)
B65*80(W x H)
C50*30(W x H)
DSickle shape


Power Supply
1220VAC
2110VAC
324VAC
424VDC

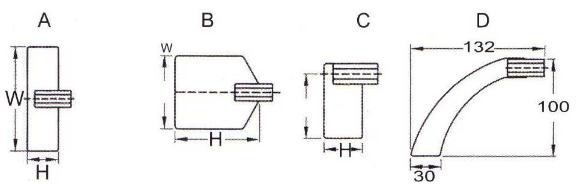

Remarks: Blade shape

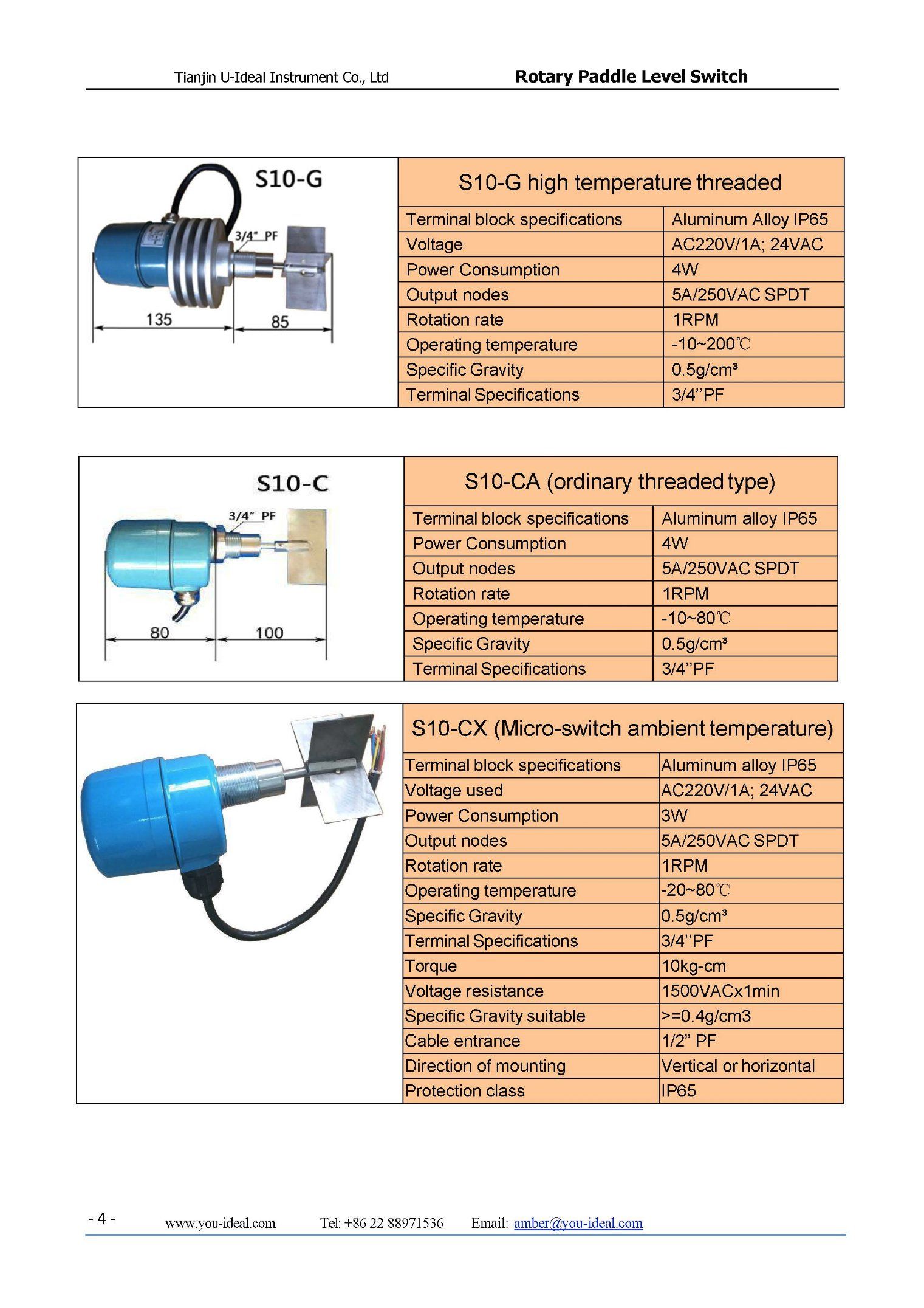

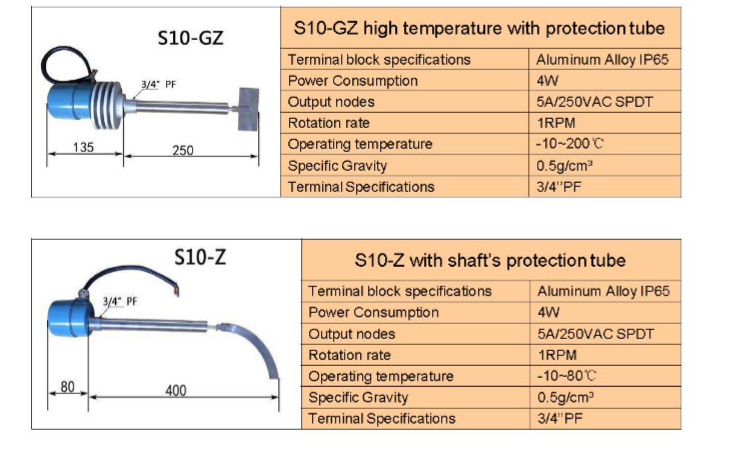

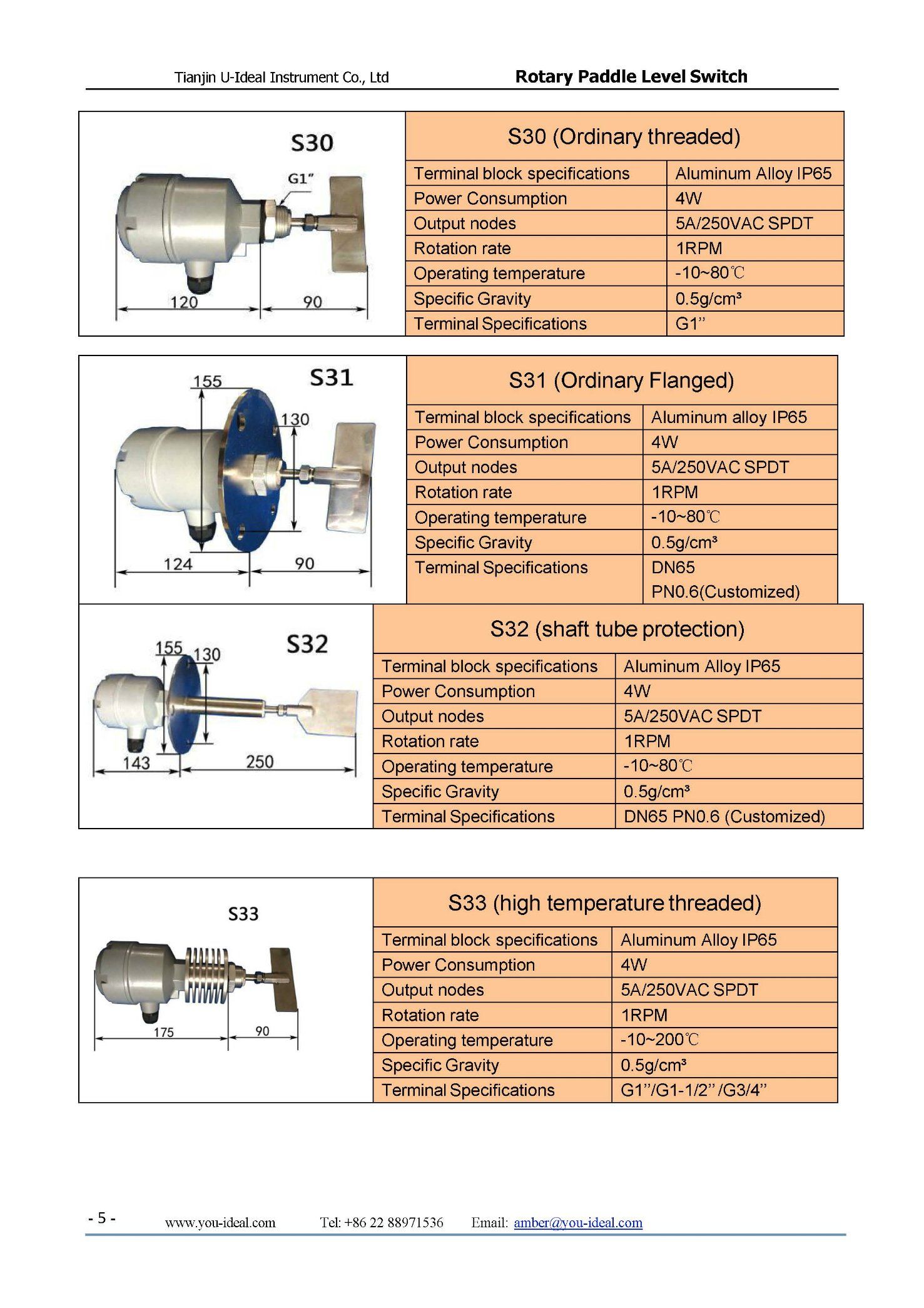

Pictures and description of different models
