| Prod Model: |
S800 ac drive |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| L/C T/T Western Union: |
5000 Set/Sets / Month |
| Standard Export Carton Packing: |
Two Weeks |
| Output Frequency: |
1~400Hz |
| Output Current: |
1.6~7.0A |
| Frequency Converter: |
Motor Controller |
| 10 Years OEM/ODM Experience: |
Manufacture in This Field for Almost 20 Years Expe |
| 70 R & D Personnel Have Many Years Exper: |
Received The National Invention Award |
| ISO 9001,ISO14001,Ohsas18001 & CE: |
10-20 Days (Urgent 5-10 Days) |
| Application: |
High-performance Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Output Type: |
Single/Three Phases |
| Brand: |
Sanch |

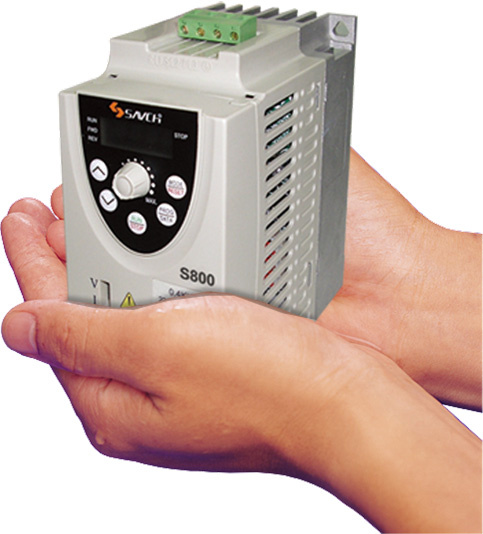

Product Description
Specifications:
1) Rated voltage: 220V / single phase
2) Power range: 0.2 ~ 1.5kW
3) Output frequency: 1.0 ~ 400Hz
Features:
1) Static vector inverter adopting Dual-core CPU.
2) Frequency control mode of main/auxiliary frequency of overlapping.
3) Automatic voltage regulate function (AVR)
4) Analog frequency setting can accept 0 ~ 10V DC 4 ~ 20mA
5) Multifarious stop methods(off stop, stop for AVI zero)
6) Multi-display: Voltage, current, preset frequency and practical frequency, rotation value
7) Built-in PLC enables 16-level speed program running
PRODUCT ADVANTANGE
- Many machine lines and output is 10000set /month
- Customized specification is accepted.
- implement strict quality testing and control procedure to make superior quality.
- Delivery: 10-20 days (urgent 5-10 days)
- Certification: ISO 9001, ISO14001, OHSAS18001 & CE
COMPANY ADVANTAGE
- Qualified inverter supplier for FUJI Electric (Japan)
- 10 years OEM/ODM Experience
- Manufacture in this field for almost 20 years experience.
- Reasonable price and punctual delivery time
- 70 R & D personnel have many years experience
- Received the National Invention Award
Major Customers
- FUJI Electric
- Jeltron System PVT
- Senterno Sas
- Sinar Surya
- Electric Otomyson
Specification
| Input Voltage Level | 220V |
| Model S800-2S*** | 0.2G | 0.4G | 0.75G | 1.5G |
| Applicable Motor Power(kw) | 0.2 | 0.4 | 0.75 | 1.5 |
| Rated output capacity(Kva) | 0.6 | 1.0 | 1.6 | 2.9 |
| Rated output current(A) | 1.6 | 2.5 | 4.2 | 7.0 |
| Maximum output voltage(v) | SINGLE-PHASE CORRESPONDING INPUT VOLTAGE |
| Range of output frequency(Hz) | 1.0~400 Hz |
| Rated input current(A) | 4.9/2.4 | 6.5/3.0 | 9.7/5.1 | 15.7/9 |
| Admissible variation range | Single-phase power supply 200-240V 50/60Hz |
| of input voltage |
| Variation range of power | +-5% |
| supply frequency |
| Control mode | V/F& SVPWM spatial vector modulation |
| (carrier 2kHz-12kHz) |
| Resolution of output frequency | 0.1 Hz |
| Torque characteristic | Torque and speed drop compensation function. |
| trigger torque can be up to 150% in 3 Hz |
| Overload toleration | 60 seconds under 150%of Rated output current |
| Accelerating and decelerating time | 0.1~600seconds(can be set independently) |
| V/F curve | Randam V/F curve setting |
| Action adjustment to avoid losing speed | Set by percent of Rated current, 20%~200% |
| Protective Function | Over-voltage, over-current, low-voltage, overl |
| oad limits, electronic thermocouple, overheat, |
| self-check, ground protection, abnormal port |
| Type of Cooling | Air-blast cooling |
| Using location | Lower than 1000m, indoor(keep from corrosive |
| gases, liquids and dust) |
| Environment temperature | -10~40(no dewing and icing) |
| Storage temperature | -20~60 |
| Humidity | Below 90%RH(no dewing) |
| Vibration | 9.80665m/s2 below 20Hz(1G) 5.88m/s2 below |
| 20~50Hz(0.6G) |
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
