| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
Ce, ISO9000 |
| Power Range: |
220V 0.4~ 1.5kw; 380V 0.75-37kw |
| Voltage Range: |
220V: 170~240V |
| Control Method: |
V/F Control, Space Vector Control. |
| Frequency Range: |
0.10~400.00Hz |
| Pid Control: |
Built-in Pid Control |
| RS485: |
Standard RS485 Communication(Modbus) |
| Prodection: |
IP20 |
| Packaging Details: |
Standard Exporting Package |
| Special: |
DIN Rail Mounted |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

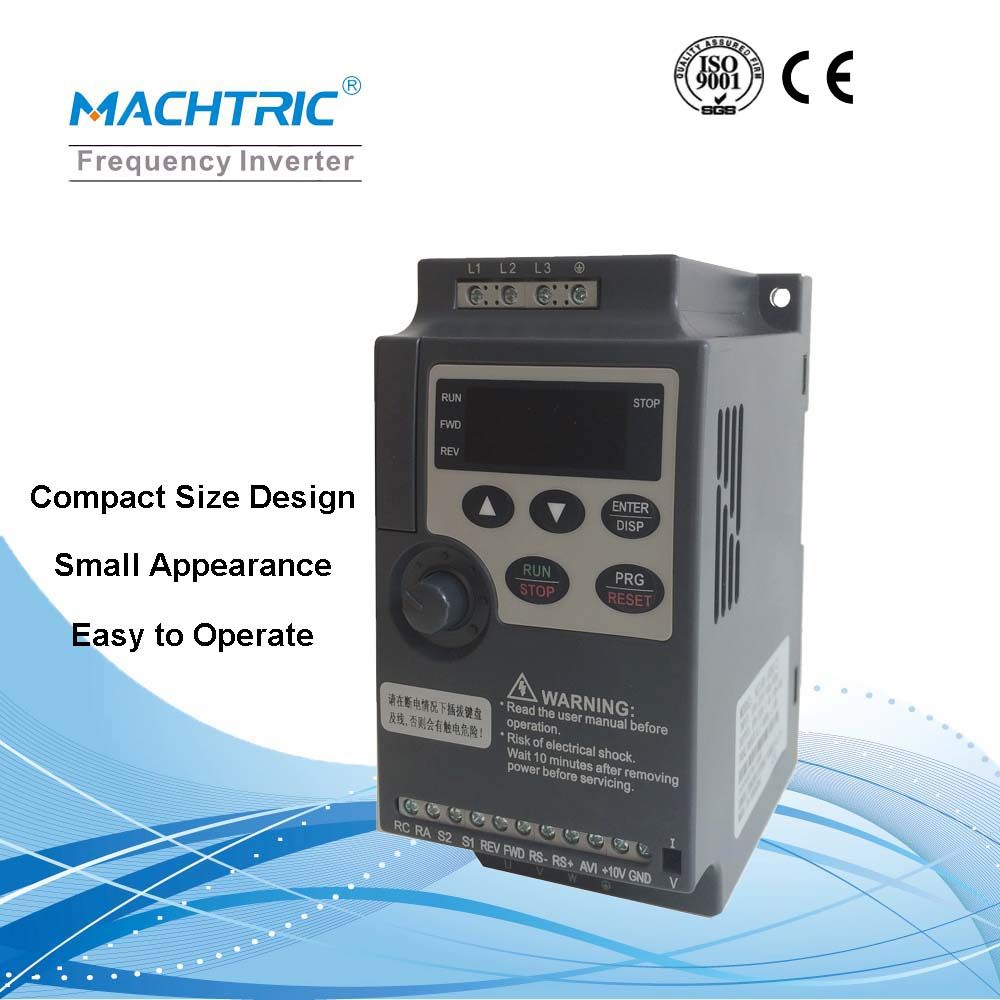

S800E 1.5Kw 380V 50/60Hz Variable Speed Drive With Mini Type
Mini size din rail mounted variable frequency inverter vfd
Small size with din rail mounted, wall mounted also suitable.
The din rail mounted frequency inverter is easy operate and high efficient;
Apply in conveyor, simple wood cutting machine... ect.
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |
Size: super mini, Super mini
Weight: different
Input Voltage: 220V
Output Voltage: 220V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Output Current: different
variable frequency inverter: Din rail mounted frequency inverter
Din rail VFD: Variable frequency drive
specification: easy operate and din rail
supply power: ac 220V 380V
frequency inverter: variable voltage variable frequency
control mode: V/F control
Color: Grey
input voltage: frequency inverter 220V 380V

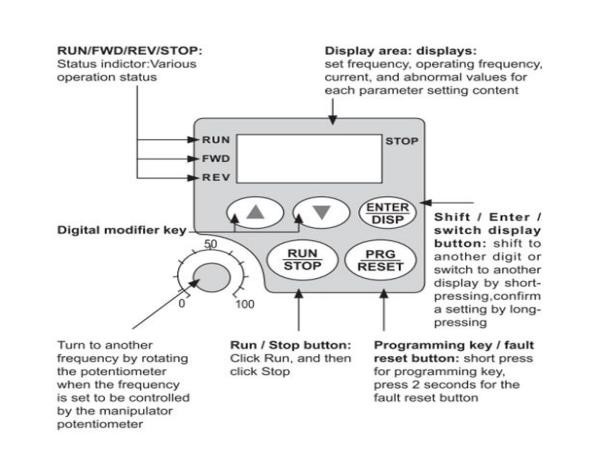

Keyboard

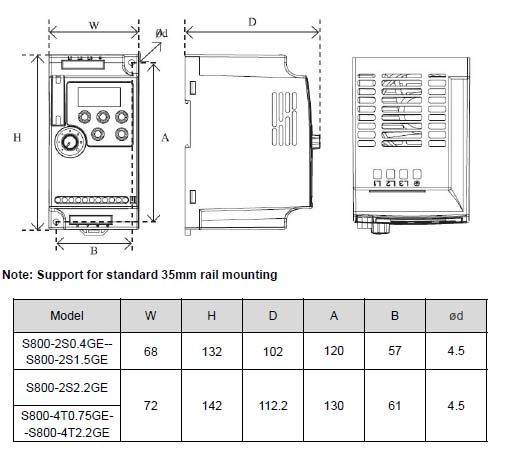

Product Size
Application| Extruder | Ball mill |
| Elevator and lift | Textile equipment |
| Paper Machinery | Screw output device |
| Drawing Equipment | Dyeing plant |
| Injiection plastic equipment | Air Conditioning systerm |
| Machine tool equipment | Boiler system |
| Chemical fiber equipment | water supply |
| oil transportation installation | Food packaging machine |
| Chemical machine | Spinning frame,ETC. |
