| Prod Model: |
S800E |
| Voltage Range: |
170-230V/330-440V |
| Frequency Range: |
0.1-400Hz |
| Power Range: |
220V 0.4-2.2kw;380V 0.75-37kw |
| Control Method: |
V/F;Space Vector Control |
| Certification: |
Ce, ISO9000 |
| Protection: |
IP20 |
| Outputfrequency Accuracy: |
0.1Hz |
| Pid: |
Built-in Pid Control |
| Cooling Mode: |
Forced Air Cooling |
| Altitude: |
Lower Than 1000m |
| Application: |
Single Phase / Tripe Phase |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |

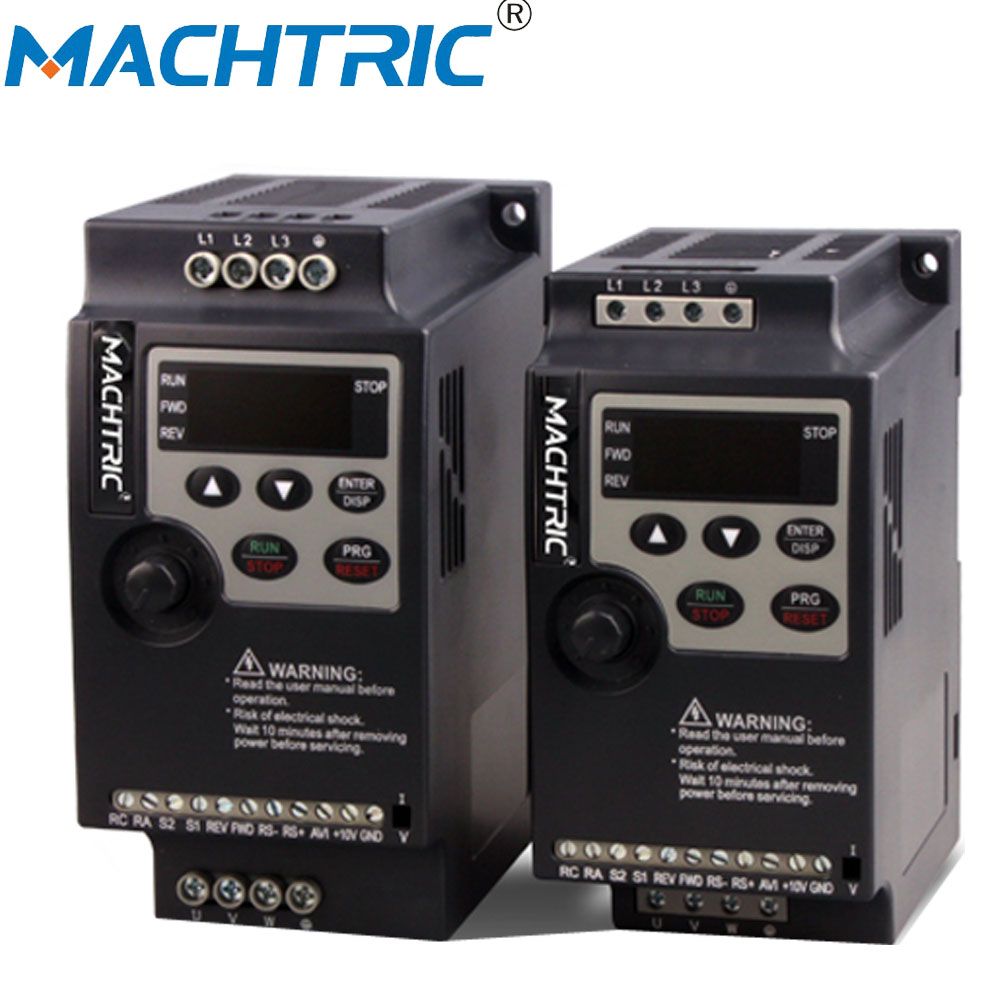

Product Description
S800E compact size design high performance ac variable frequency drive ACconverter
| Items | S800E |
Power
Supply | Rated voltage, Frequency | One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range | 220V:170~240V |
| Output | Voltage Range | 220V:0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance:Eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input:0.01Hz, analog input:0.1% of
Maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase:Auto raise torque by loading
Condition;Manual increase:Enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
Functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
Of running, zero speed, counter, external
Abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10 V, 0 to 20mA can be
Selected;
Digital input:Input using the setting dial of the
Operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
Analog voltage input(AV) and analog current
Input(AI) through the switch J2.
Note:AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
Speed can be set |
Automatic
Voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |
220V 0.75kW-2.2kW Frequency Range:| Model | Input | Power
Output
(KW) | Capacity
(KVA) | Current
Output
(A) | Load
Capacity
(60s)(A) | Motor
Equipped
(KW) |
| S800-2T0.4GE | 1PH/3PH
220V-
50/60HZ | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
| S800-2T0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
| S800-2T1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |

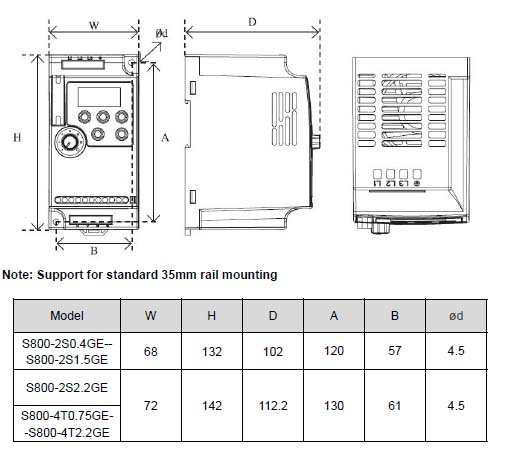

S800E size:
Application- Food Machinery- Feeder, mixer, bag filling machines, pastry forming machine
- Woodworking machinery- Polishing machine, grinding machine, carving -machine
- Textile machinery-winding machine, fabric inspection machine
- Packaging machinery-Liquid filling machine, pharmaceutical filling machine
- Blowing machine, Printing equipment-offset, Feeding machine, Sealing machines...
