| Prod Model: |
S9 |
| Capacity: |
30-2500kVA |
| Input Voltage: |
6kv/6.3kv/10kv/10.5kv/11kv |
| Output Voltage: |
0.4kv |
| Connection Group Symbol: |
Dyn11 or Yyn0 |
| Impedance Voltage: |
4%, 4.5%, 5% |
| Product Name: |
S9 Series 11kv Power Distribution Transformer |
| Frequency: |
50 or 60Hz Optional |
| Rated Voltage: |
10kv |
| Type: |
Oil Immersed Transformer |
| Application: |
Lighting |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

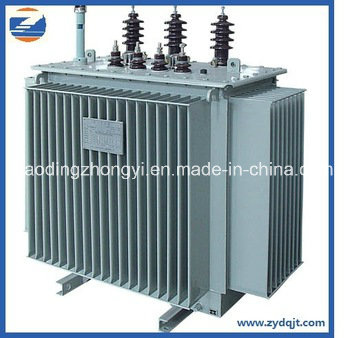

S9 series 11kv Power Distribution Transformer
Product introductionThe transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.Technical Parameter of S9 Series 11kv Power Distribution TransformerRated capacity
(KVA) | Voltage Combination | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load Current (%) |
Short-circuit Impedance(%) |
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage(KV) |
| 30 |
6
6.3
10
10.5
11 |
±5%
±2×2.5% |
0.4 |
Dyn11
Or
Yyn0
| 130 | 630/600 | 2.3 |
4.0 |
| 50 | 170 | 910/870 | 2.0 |
| 63 | 200 | 1090/1040 | 1.9 |
| 80 | 250 | 1310/1250 | 1.9 |
| 100 | 290 | 1580/1500 | 1.8 |
| 125 | 340 | 1890/1800 | 1.7 |
| 160 | 400 | 2310/2200 | 1.6 |
| 200 | 480 | 2730/2600 | 1.5 |
| 250 | 560 | 3200/3050 | 1.4 |
| 315 | 670 | 3830/3650 | 1.4 |
| 400 | 800 | 4520/4300 | 1.3 |
| 500 | 960 | 5410/5150 | 1.2 |
| 630 | 1200 | 6200 | 1.1 |
4.5 |
| 800 | 1400 | 7500 | 1.0 |
| 1000 | 1700 | 10300 | 1.0 |
| 1250 | 1950 | 12000 | 0.9 |
| 1600 | 2400 | 14500 | 0.8 |
Why Choose US?
1.Leading manufacture of various transformer and special transformer since 2008.
2.Meet the standard of ISO9001-2015 international standard.
3.With great R&D team to meet any international requirements.
4.With hundreds of engineering case apply in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.

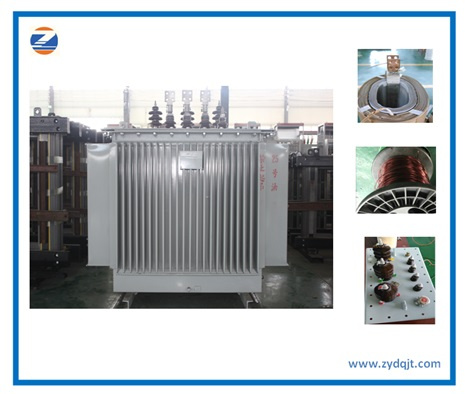

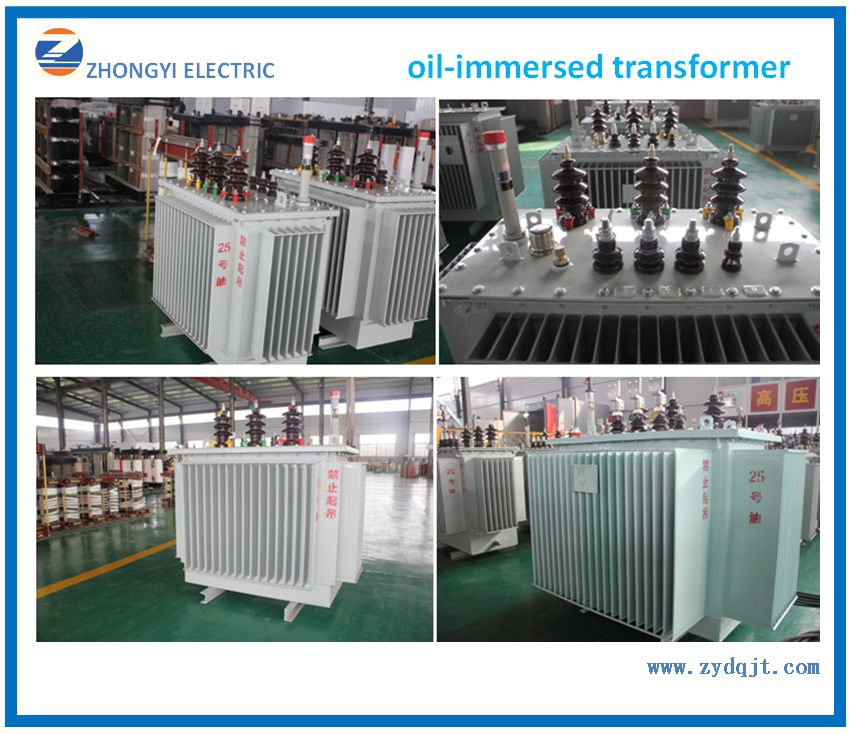

Details images:
Certifications
Packagind&shipping
Packing&shipping
Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details :
10-20 days according to order quantities
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the quantity.
Q: What about the OEM
A: Yes, OEM is accepted.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
