| Prod Model: |

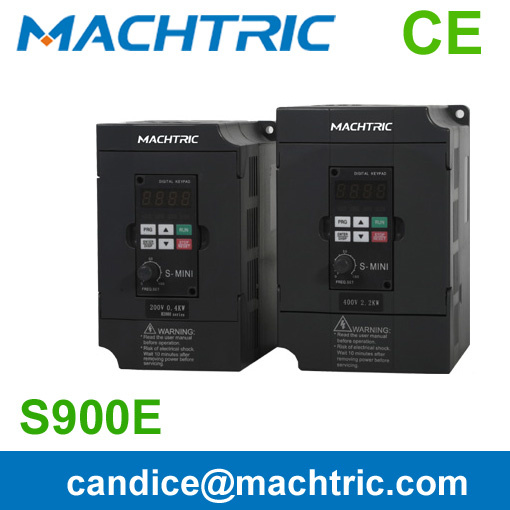

S900E frequency inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Mc |
| Model Number: |
S900 E |
| Output Power: |
0.4-2.2kw |
| Input Voltage: |
200-240V, 380-460V |
| Output Voltage: |
200-240V, 380-460V |
| Output Frequency: |
0-400Hz |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Output Type: |
Single Phase or Three Phases |
Product Description
Specifications:
Rated voltage: 170-220V Single /380-460V three
Power range: 0.4-3.7KW
Output frequency: 1.0 ~ 400Hz
Delivery: 0 to 14days
ISO9001: 2000, CE Approved
MOQ: 1 set
Features:
Comprehensive range from 0.1-400Hz
High technology of PIM Module
150% over load 60 Sec constant torque
Built-in PID control
Build-in Simple PLC function
Multi-communication RS485 interface
Low noise operation
Built in AVR
Target market of S900 E Series Inverter
Food machinery-Feeder, mixer, bag filling machines, pastry forming machine
Woodworking Machinery-Polishing machine, grinding machine, carving machine
Textile Machinery-winding machine, fabric inspection machine
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine
Other: Stone cutting machine
Blowing machine, Water-pump-housetop/a fan to fill and exhaust gas, small
Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt, common conveyor belt
Feeding equipment-Tool machine, winding machines, weaving machines equipment
Rubber and plastic industry-Sealing machine, various types of small machine
General business-Common household, air conditioning, automatic door
CE Approved Energy-saving Small Size Inverter 2.2kw, High Quality Inverter, 2.2kw Inverter, AC Drive,
AC VFD Inverter, High Quality VFD Drives, VFD Drives, AC VFD Inverter
| | Items | S900E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V: 170V~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input: 0.01Hz, analog input: 0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10V, , 0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built - in 2group of counters |
Protection/
Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10 to 40 (non-freezing) |
| Ambient Humidity | Max. 95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
