| Prod Model: |
S900GS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Apply: |
General Use |
| Certification: |
Ce ISO |
| Power440V: |
7.5~30kw |
| IP Rate: |
IP20 |
| Weight: |
Different Weight |
| Pid Control: |
Built-in Pid Control |
| Export Markets: |
South America, Eastern Europe, Southeast Asia, Afr |
| Power Of 220V: |
0.4kw ~1.5kw |
| Communication: |
RS485 |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
1/3 Phase |
| Brand: |
Machtric |
Product Description

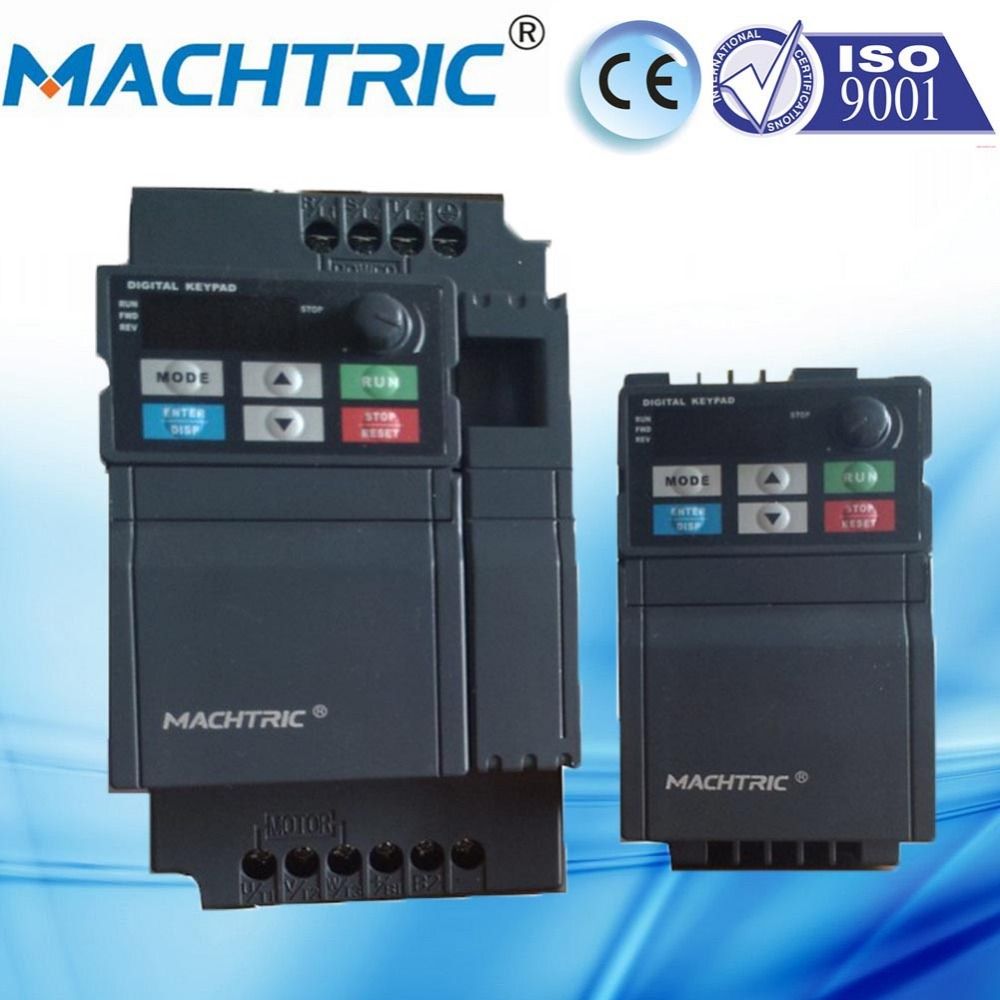

S900GS
Single phase/Three phase 220V 50/60Hz
220V: 170V~240V, 220V: 0~220V
V/F control, space vector control
Product specification
| | Items |
S900GS |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V 380V:0~380V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| ronment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
| | | | |
specification
| Model | Rate output power
(KW) | Capacity
(KVA) | Current output
(A) | Overload capacity
(A) | Application motor (KW) |
| 1PH AC220V,50/60HZ |
| S900-2S0.4GS | 0.4 | 1.0 | 2.2 | 3.75 | 0.4 |
| S900-2S0.75GS | 0.75 | 2.0 | 5.0 | 7.5 | 0.75 |
| S900-2S1.5GS | 1.5 | 2.8 | 7.0 | 10.5 | 1.5 |
| 3PH AC380V ,50/60Hz |
| S900-4T0.75GS | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| S900-4T1.5GS | 1.5 | 3.2 | 4.0 | 6.0 | 1.5 |
| S900-4T2.2GS | 2.2 | 4.0 | 5.0 | 7.5 | 2.2 |
| S900-4T3.7GS | 3.7 | 6.8 | 8.6 | 12.9 | 3.7 |
| S900-4T5.5GS | 5.5 | 10 | 12.5 | 18.75 | 5.5 |
| S900-4T7.5GS | 7.35 | 14 | 17.5 | 21 | 7.5 |
| S900-4T11GS | 11 | 19 | 24 | 36 | 11 |
| S900-4T15GS | 15 | 26 | 33 | 45 | 15 |
| S900-4T18.5GS | 18.5 | 32 | 40 | 60 | 18.5 |
| S900-4T22GS | 22 | 37 | 47 | 70.5 | 22 |
| S900-4T30GS | 30 | 52 | 65 | 97.5 | 30 |
| S900-4T37GS | 37 | 64 | 80 | 120 | 37 |
