| Prod Model: |
SA-2P-30A-120V |
| Color: |
Black |
| Certificate: |
Ce, UL, CCC, S, CSA |
| Material: |
High Arc-Resistant Phenolic Resin |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Electrical Life: |
1, 000, 000(AC3) |
| Mechanical Life: |
10, 000 |
| Frequency: |
50/60Hz |
Product Description

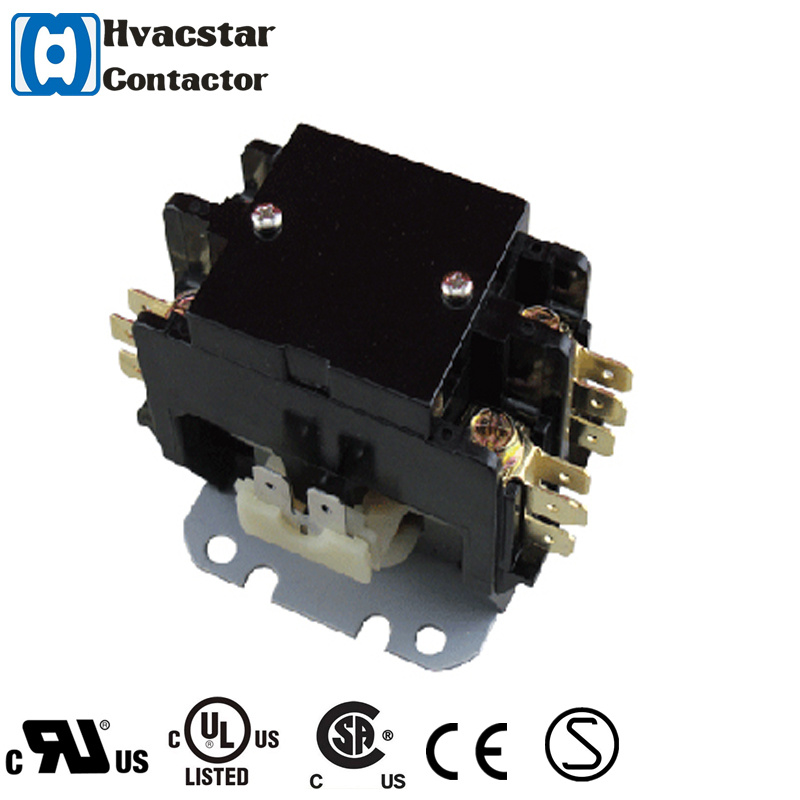

SA-2P-30A-120V SA series UL Certificated DP Contactor 2 Pole 30AMPS 120V About Us:
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors including DP Contactors, LC1 series contactors , Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the most innovative and highest quality products available to our customers.
PRODUCT APPLICATIONSA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.
RATING:Models SA-1.5P, SA-2P are rated 600 VAC, single-phase. Models SA-3P, SA-4P are rated 600VAC, three-phase, except models rated 300 LRA and 360 LRA are rated 480VAC max. See table for FLA/LRA/Resistive or Resistance air heating ratings. All devices are rated "Break All Lines."
| MODEL | FLA(A) | LRA(A) | LRA(A) | LRA(A) | LRA(A) | Resistive or Resistance air heating(*) |
| | | 480 V ac | 600 V ac | 277 V ac | 240 V ac | 277vac |
| SA-1.5P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| SA-2P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-3P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
| 50 | 240 | 200 | 240 | 300 | 50 |
| 60 | 300 | 240 | 240 | 360 | 60 |
| 75 | 300 | - | 300 | 450 | 75 |
| 90 | 360 | - | 360 | 540 | 90 |
| SA-4P | 20 | 100 | 80 | 120 | 120 | 20 |
| 25 | 125 | 100 | 150 | 150 | 25 |
| 30 | 150 | 120 | 180 | 180 | 30 |
| 40 | 200 | 160 | 240 | 240 | 40 |
Short Circuit Rating: SA-1.5P, 2P, 3P, 4P - 5,000A @ 277 V, 480 V, 600 V
Products Details | FLA | 30 |
|
| Poles | 2 |
| Resistive Amps | 40 |
| Coil Voltage | 120 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 180/150/120 |
| Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options. |
| Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits. |
| Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc. |
| Replaces: Siemens/45EG20AF,Cutler-Hammer/C25BNB230A,Fasco/C2S30B,GE/CR453CC2AAA,Gemline/GDP3021,Hartland Controls/HCCY2XT02AA303. |
Products Application
SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.
Main Production Data
• Silver Cadmium Oxide Contacts
• Ranges: 20 - 90 FLA
• Poles: 1pole, 1.5pole , 2pole , 3pole, 4pole
• Coil Voltages: 24, 110/120, 208/ 240, 277 VAC
• Terminations: #10-32 screw - 20, 25 & 30 FLA Models,
Box Lug - 40, 50, 60, 75 & 90 FLA Models
• Temperature Range: - 40°F to + 150° F / - 40°C to + 65° C
• UL Listed, CSA, S MARK , CCC Approved

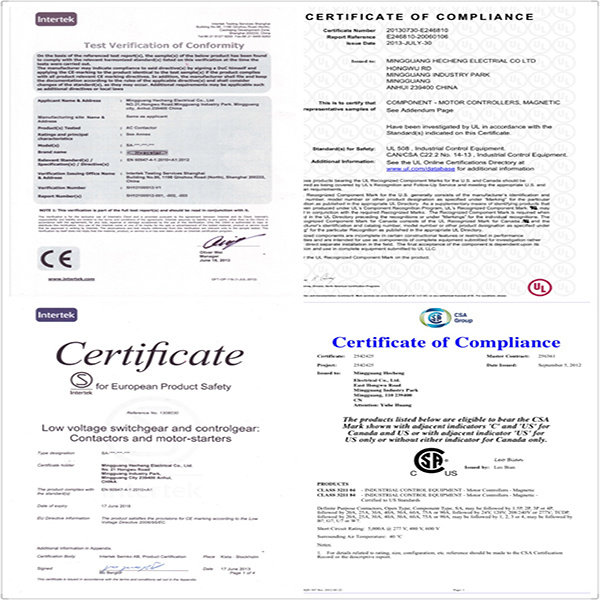

Certification

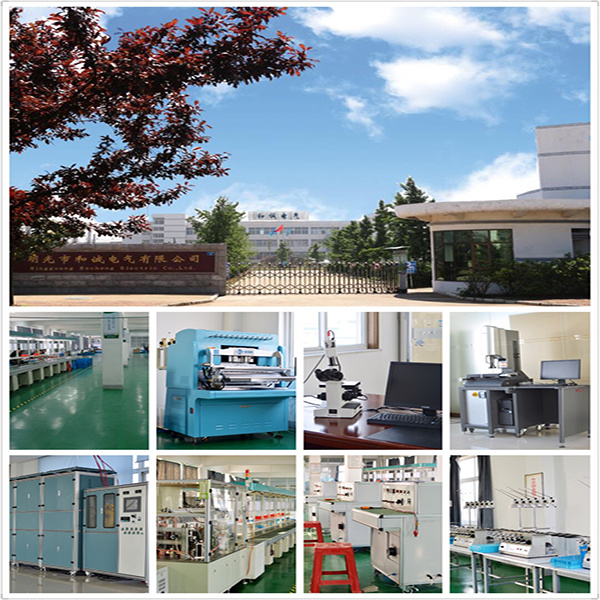

Our Factory:
