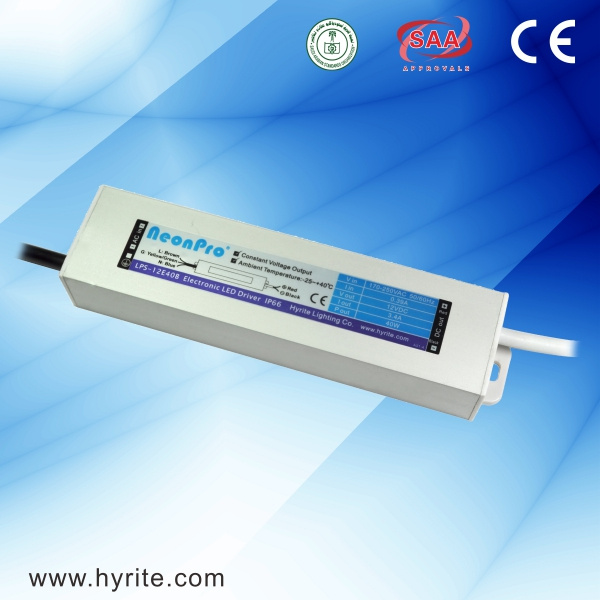

SAA Approved 12V 40W IP67 AC/DC Waterproof LED Driver

Name: SAA Approved 12V 40W IP67 AC/DC Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 747845635
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 6.61-6.96/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E40B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	40W
Input Voltage:	170-250V
Output Voltage:	12V
Model No.:	Lps-12e40b
Dimming:	No
Built-in Active Pfc:	No
Efficiency:	86%
IP Rating:	IP 66
Certificates/Standards:	CE
Dimensions(LWH):	1603826 Mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Saso SAA
In-Out:	AC to DC
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

SAA approved 12V 40W IP67 AC/DC waterproof LED Driver

Product Feature:
*170-250 VAC, 12VDC
*Constant Voltage type; Mature models
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SAA/CE/RoHS/SASO approval.

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification:
Model no.Input voltageMax. powerOutput typeDimmingBuilt-in active PFCPower factorEfficiencyAC inrush current(max.)Output voltageOutput currentOverload protectionOver voltage protectionWithstand voltageOperating temperatureInstallationIP ratingCoolingCertificates/standardsConnection input/outputDimensions(L*W*H)Weight(kg)Packing information

LPS-12E40B

170-250 VAC 50/60 Hz

40 W max

Constant voltage

Low

86%

Cold start, 40A@230VAC

12VDC ± 5%

3.4 A max

105% hiccup mode, auto-recovery

120% rated output voltage

I/P~O/P:1.5kVAC, 1 minute

-25~40 ºC

Outdoor waterproof

IP 66

Free air convection

Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

160*38*26 mm

0.41

50 Pcs/ Carton, G.W 20.5 KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
