| Prod Model: |
PT01 |
| Material: |
Polymer |
Product Description
Panel Instruction and Use Description
Emission connection ( blue wire ) Receive connection ( black wire )
1. Far detection distance
2. Near detection distance
3. Double-beam optical access
4. Single-beam optical access
5. Emission contact 2 and Receive contact 2
6. Power indicator
7. Input power contact, Emission contact 1&Receive contact1
8. N.O. and N.C. Contact selection.
The Overall Characteristic
Adopt microcomputer control technology, high integration with high stability.
International optical lens design with good focus quality, controlled angle is rational, easy to be installed.
Far transmit distance with strong, anti-interference ability.
Adopting receiving filter, decoding, amplification system of German technology. Effective solution to anti-interference of natural daylight.
Emission electric eye adopts low-power consumption design with far transmit.
Emission contact and receive contact output separately with shielding line.
When the signal light be blocked, N.O or N.C contact can be flexibly chosen.
With 12-36V AC-DC power input.
The Definition of Input and Output Terminal
Note: Emission contact and receive contact should be connected on 8pin terminal in case of single sensor beam be selected.
Specific Considerations
Drilling the mounting holes of 13mm for electric eye installations.
Select the single-beam optical access: installation height within 60cm.
Select the double-beam optical access: Installation height of one group.
Within 30cm while the other be installed within 90cm.
Emission contact and receive contact should be connected on 8pin terminal in case of single sensor beam be selected.
Adjust the installation place into vertical and horizontal position. And sundries should not be put around to avoid error action.
Installation height of receiver should be within 20cm from the background.
Don't place into moisture or direct sunshine.

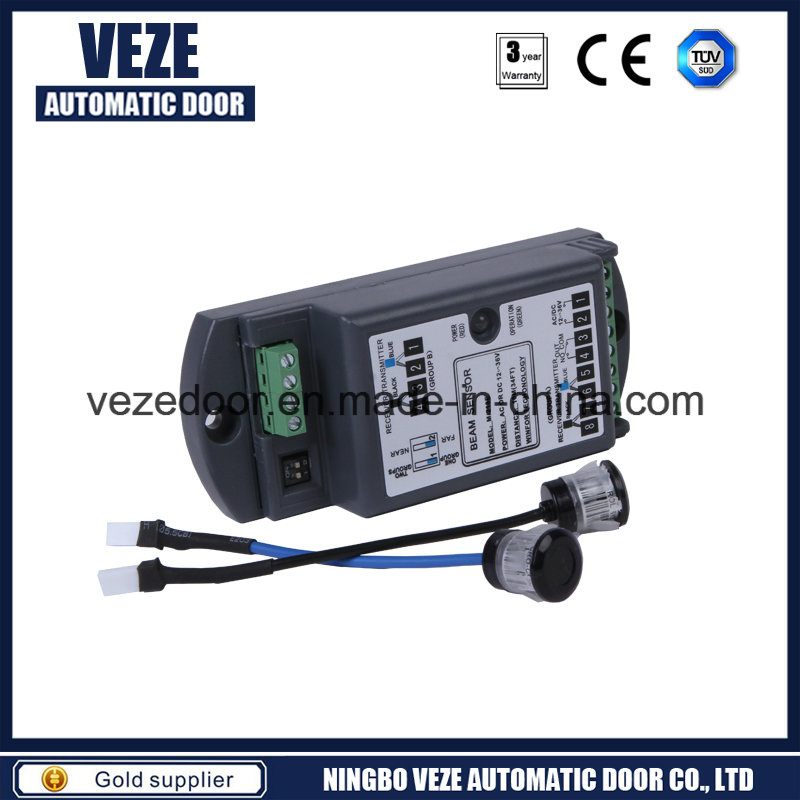

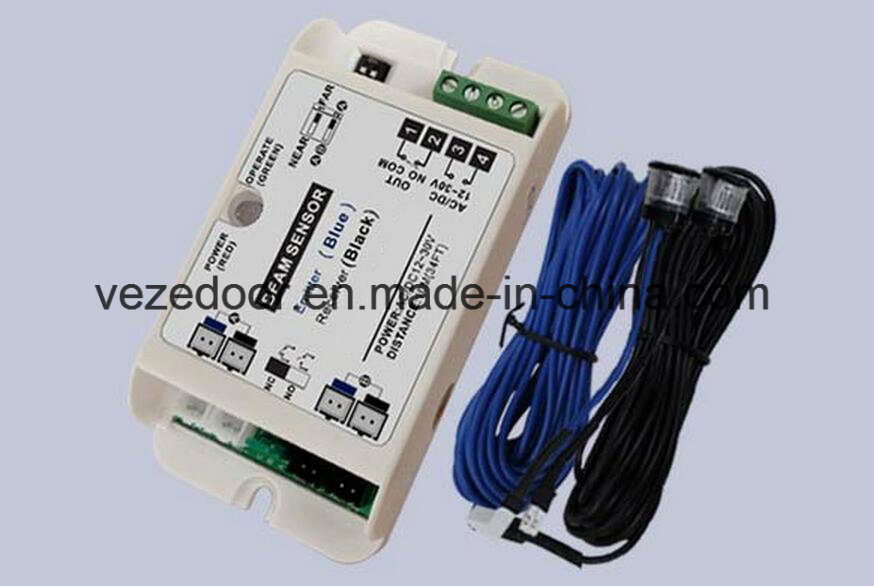

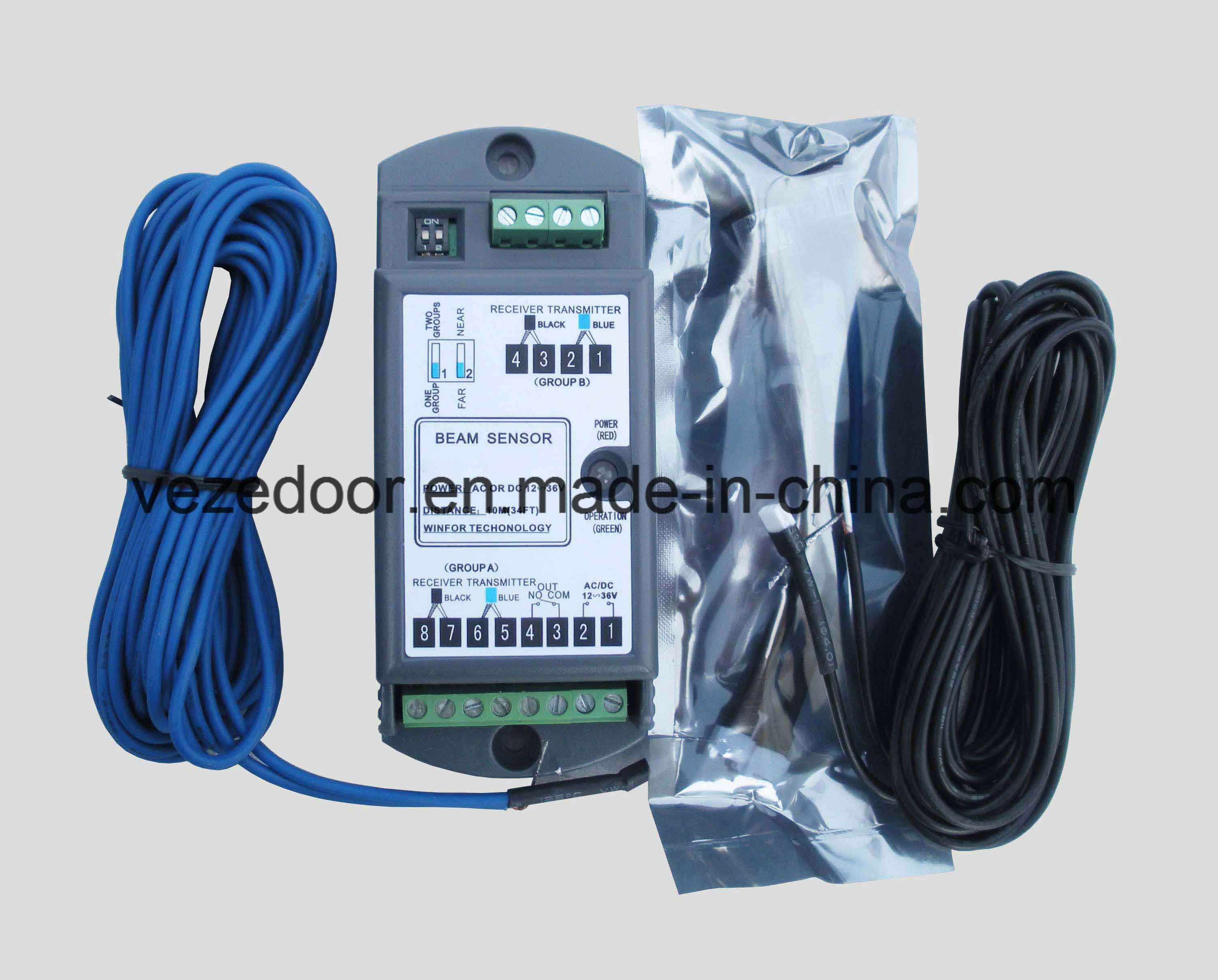

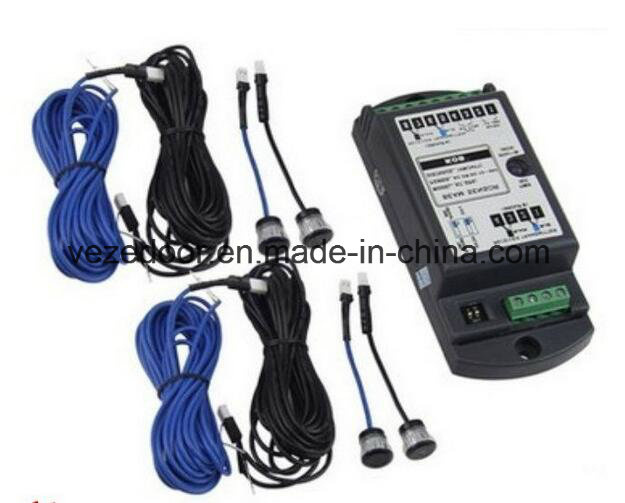

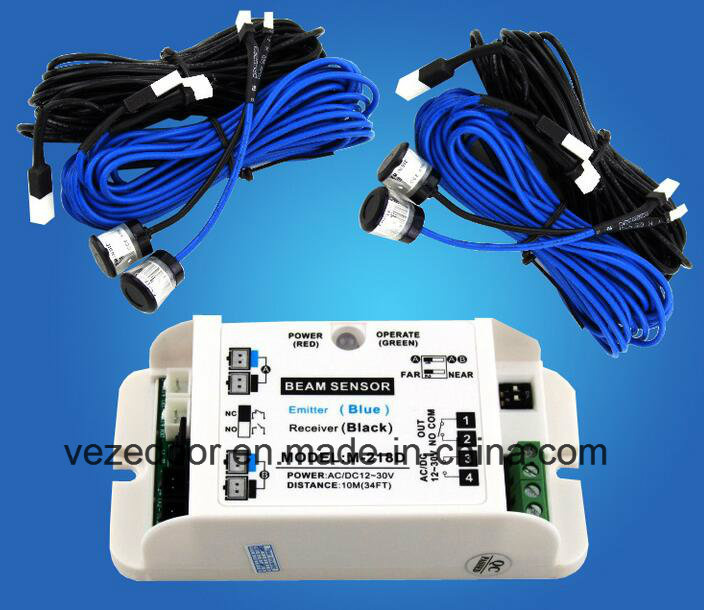

The Picture of Beam Sensor
The Main Technology Parameters
Supply power: AC/DC 12-36V
Static current: 25mA
Action current: 40mA
The maximum transmit distance: 10m
N.O or N.C contact: Done by N.O/N.C contact selection
Beam: Single beam or double beam
Working environment temperature: -42ºC~45ºC
Working environment humidity: 10~90%RH
Appearance dimensions( controller ): 123(L)×50(W)×32(H)mm
Appearance dimensions( magic eye head ): 19(L)×13(D)mm
