| Prod Model: |
TB-AQCB-02 |
| Use: |
Safety Edge |
| Size: |
45*45mm |
| Length: |
100-5000mm |
| Standards: |
GB/Ce |
| Standard: |
Standard |
| Type: |
HU1 |
Product Description

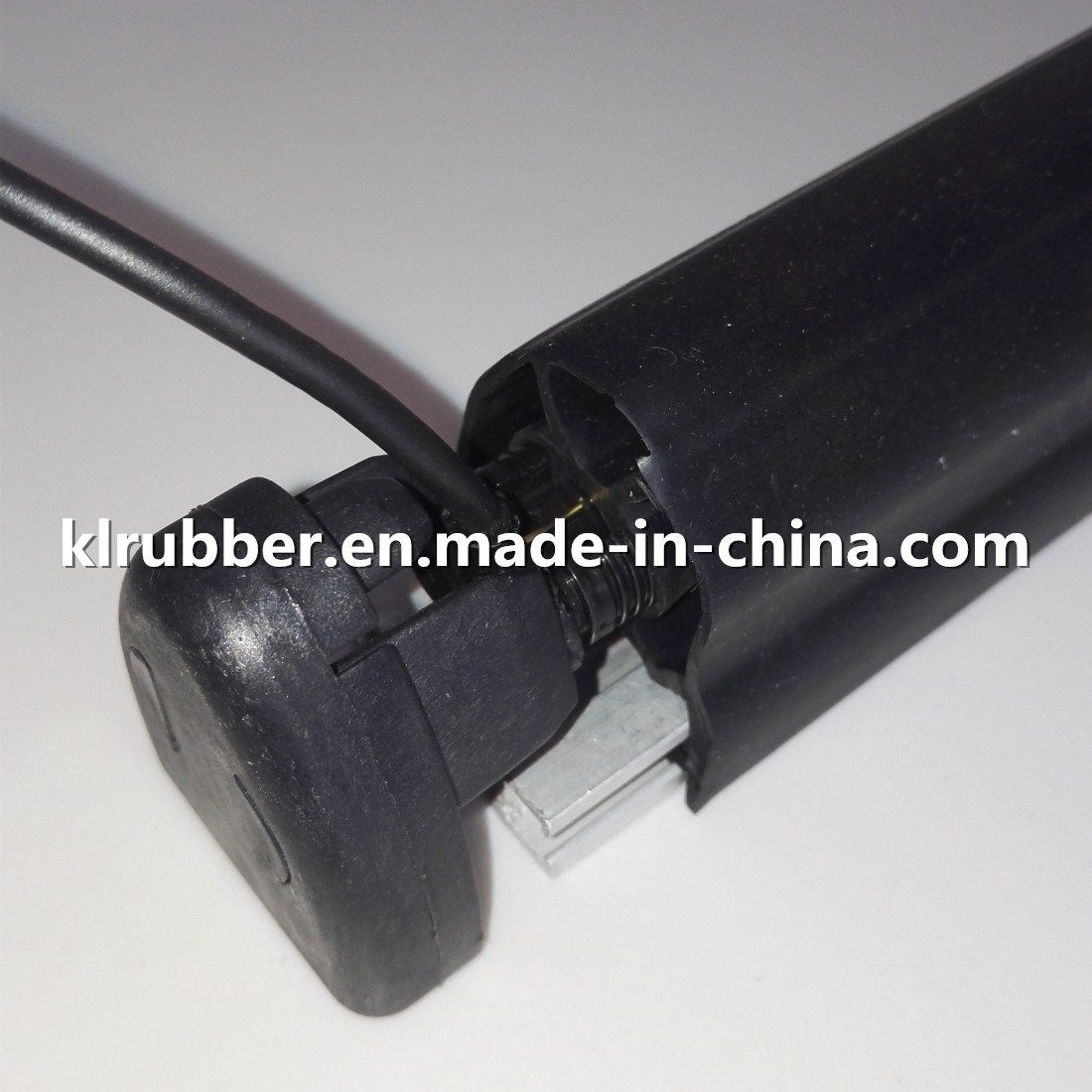

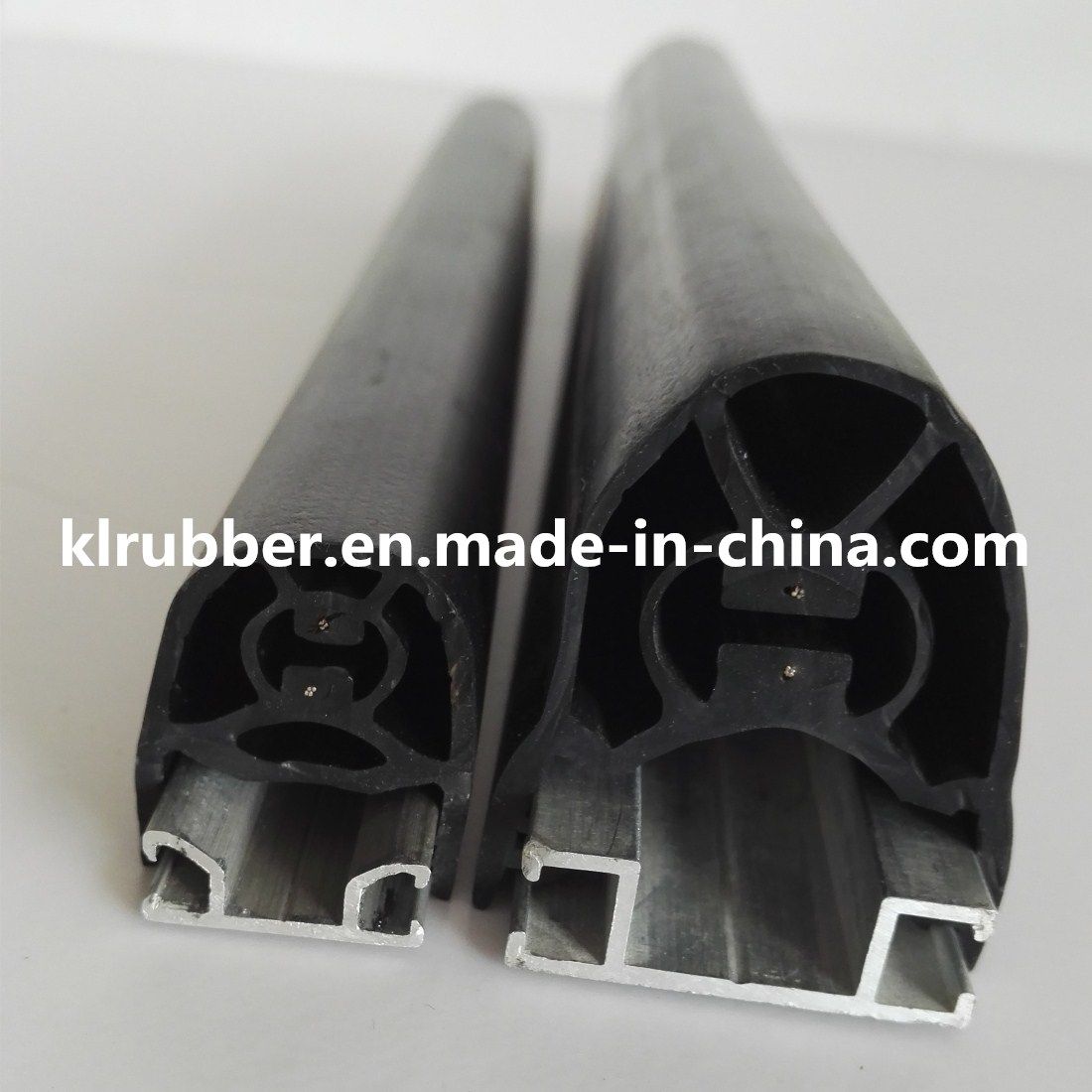

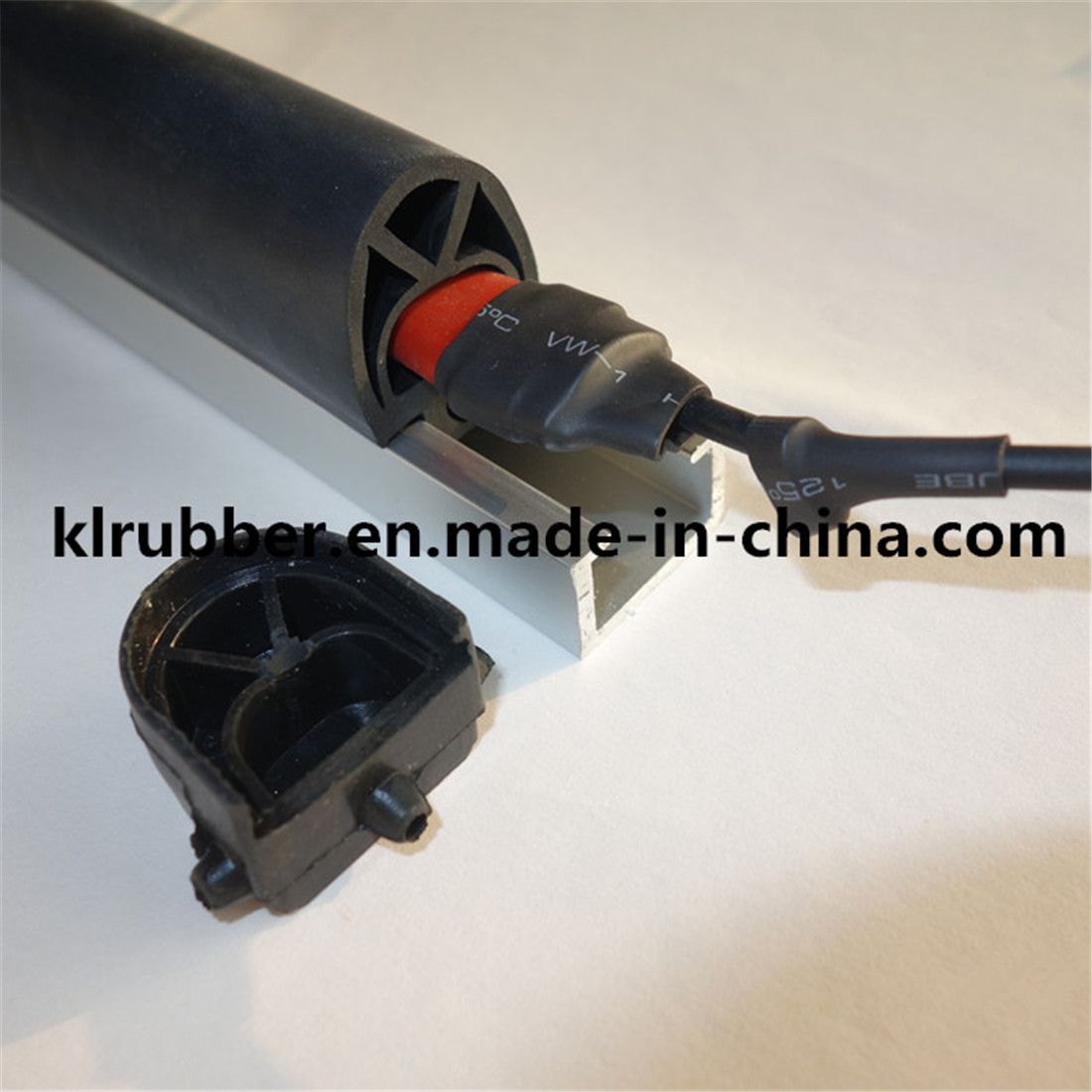

safety edge switch for Automated Guided Vehicle AGVSafety Edges Series TheoryAll safety edges internal structure has two or three switch contact surface, each switch inside containing a copper wire line, which was separated from each other under static state certain distance between them. The safety edges was assembled by a terminal resistance finally,which was monitoring the whole system. On one hand, this special design could prevent the short circuits and fittings problem, on the other hand, if the edges change,the resistance will instruct the whole system working to prevent the danger happening immediately.

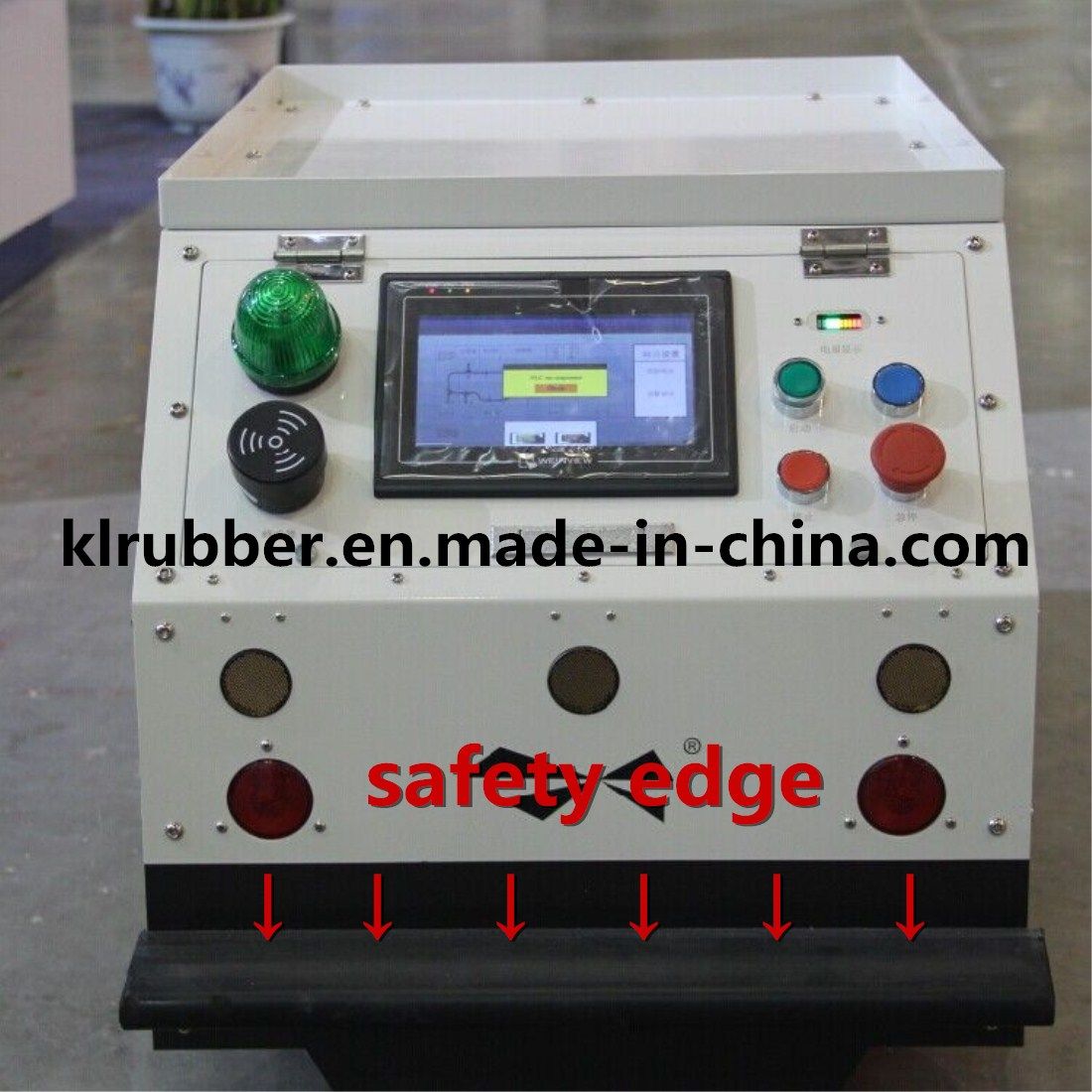

Safety Edges Series Application safety contact edge products in security solution are used for easy accident extrusion and shear on the edge of the opening and closing of a pressure sensor products, which are widely used, such as AGV car, the tyre machine,lifting stage,car sunroof or automobile skylight , passenger luggage doors, welding robot, rubber and plastic machinery, assembly, material handling, packaging machine, stamping machine, pressure machine, automobile tail door system, automotive safety field or a shear sliding door, mobile risk bulkhead, automatic sliding door, electric door, and so on.
Safety Edges Technical Parameters the product use the innovation of epdm and butadiene-acrylonitrile rubber mixed, to ensure it more flexible in the low temperature. Application temperature from -30 ºC to + 70 ºC. Resistance generally < 150-500 Ω, launch distance up to the product specification , bending Angle up to 15 degrees.
Technical deta:| Application temperature range | -30° C ~70° C |

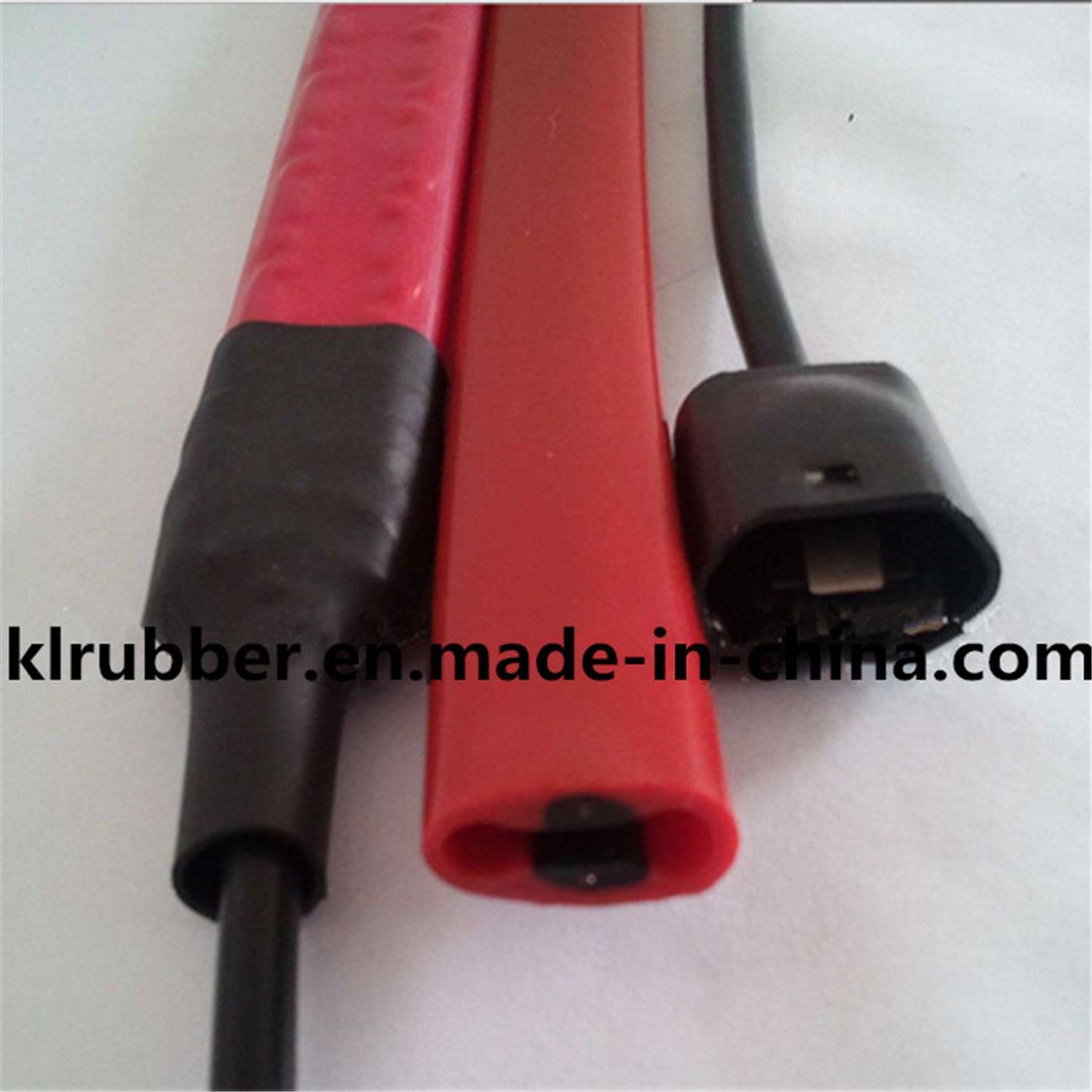

| Sensor tape material | silastic composite copper wire |
| Alternate capacity | 0.2A/42V AC/DC |
| Resistance transmission capacity | 0.5Kohm/m |
| Launch distance | 1.6mm |
| Finished product specifications | 9.0*5.2mm |
| Connecting cable Insulated wire | 2x0.34mm2. DM type |
| Insulation strength | 1500V AC |
| Bending angle maximum | 15 degree |
Q1:Are you able to create a custom mold?
A:Of course we have own factory to create molds for our customs.And within 20 workdays for mold and sample.
Q2:Can you create the designs based on our specifications,or would we need to provide designs?
A:Both are ok , if you want us to design for you, the used part should be sent to us.
Q3:How can I get a free sample?
A:Drawing for section and size;material properties for formula; all specs clear if send me your sample.Of course, you need to pay the freight.
Q4: Are you a manufacturer or trading company?
We are manufacturer, and we export our products by ourselves.
Q5: I need these samples, the product can be send by air?
Yes, of course, we can provide sample to the customer by air.But I have to remind you that the freight will be very expensive.
