| Prod Model: |
YBF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Soft Flat Cable |
| Number Of Cores: |
1-24 |
| AC Rated Voltage: |
450V/750V |
| Working Temperature: |
≤65 Celsius |
| Standard Level: |
Q/32028aq001-91 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Elevator, Crane, Lift |
| Conductor Material: |
Copper |
| Certification: |
RoHS |
| Insulation Material: |
PVC,PVC/Rubber |
| Range Of Application: |
Industrial, Crane, Hoist , Lifting etc. |
| Brand: |
Tianbao |
Product Description

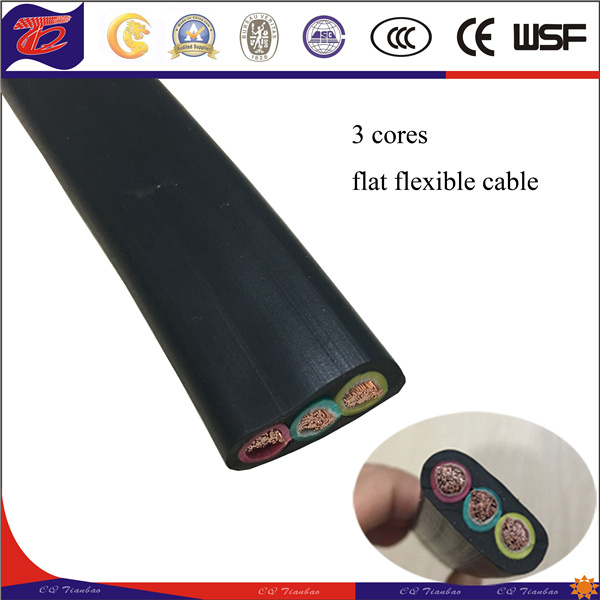

Safety Flat Insulated Electrical Cooper Cable
Types
Model | Material | Allowable
Temperature | Application Range |
| YB | Natural butyl benzene insulated
and sheathed flat type flexible cable | -20ºC~ 70ºC | Indoor places without oil pollution |
| YBF | Natural butyl benzene insulated and
neoprene sheath flat type flexible cable | -20ºC~ 70ºC | Outdoor places with oil pollution
and the cable with flame retardant |
| YBZ | Ethylene propylene insulation and
neoprene sheath flat type flexible cable | -20ºC~ 70ºC |
Parameters
Standards | Conductor structure | Reference parameter of cable |
20ºC min
insulated
resistance |
Max extermal diameter | G.W | 20ºC max dc resistance |
number x area
mm² |
number x diameter
mm |
Width x thickness
mm |
kg/km | tinned Ω/km | untinned Ω/km | Ω/km |
| 3 x 4 | 56/0.30 | 19.6x8.9 | 285 | 4.95 | 5.09 | 50 | 400 |
| 3 x 6 | 84/0.30 | 22.0x9.9 | 380 | 3.3 | 3.39 |
| 3 x 10 | 80/0.40 | 27.5x12.0 | 615 | 1.91 | 1.95 |
| 3 x 16 | 126/0.40 | 31.1x13.3 | 830 | 1.21 | 1.24 |
| 3 x 25 | 196/0.40 | 38.3x15.8 | 1230 | 0.78 | 0.795 |
| 3 x 35 | 276/0.40 | 42.8x17.6 | 1605 | 0.554 | 565 | 40 | 300 |
| 3 x 50 | 396/0.40 | 49.2x20.0 | 2205 | 0.386 | 0.393 |
| 3 x 70 | 360/0.50 | 55.6x22.5 | 2965 | 0.272 | 0.277 |
| 3x4+2x1 | 56/0.30+32/0.20 | 25x8.5 | 427 | 4.92 | 5 | 50 | 400 |
| 3x 6+2x 1 | 84/0.30+32/0.20 | 30x12 | 590 | 3.3 | 3.34 | 50 | 400 |
| 3x4+2x1.5 | 84/0.30+32/0.25 | 30x12 | 600 | 3.3 | 3.38 | 50 | 400 |
| 6x2.5+6x1.5 | 49/0.25+30/0.25 | 35x15 | 900 | 7.98 | 8.05 | 50 | 400 |
| 3x4+4x2.5 | 56/0.30+49/0.25 | 32x9 | 520 | 4.95 | 5.03 | 50 | 400 |
| 3x25+1x10 | 196/0.40+84/0.40 | 53x18 | 1800 | 0.78 | 0.81 | 50 | 400 |
| 3x16+1x10 | 126/0.40+84/0.30 | 43x15 | 1200 | 1.21 | 1.27 | 50 | 400 |
| 3x35+2x10 | 276/0.40+84/0.40 | 61x21 | 2500 | 0.554 | 0.56 | 40 | 300 |
| 3x50+1x10 | 396/0.40+84/0.40 | 65x24 | 3200 | 0.386 | 0.392 | 40 | 300 |
| 4x2.5 | 49/0.25 | 22.5x8.2 | 285 | 7.98 | 8.21 | 50 | 400 |
| 4x4 | 56/0.30 | 26.2x9.1 | 396 | 4.95 | 5.09 | 50 | 400 |
| 4x6 | 84/0.30 | 29.2x9.9 | 505 | 3.3 | 3.39 | 50 | 400 |
| 4x10 | 84/0.30 | 36.5x12 | 835 | 19.1 | 1.95 | 50 | 400 |
| 4x25 | 196/0.40 | 51.1x15.8 | 1665 | 0.78 | 0.795 | 50 | 400 |
| 4x35 | 276/0.40 | 57.0x17.6 | 2170 | 0.54 | 0.565 | 40 | 300 |
| 7x2.5 | 49/0.25 | 37.2x8.2 | 490 | 7.98 | 8.21 | 50 | 300 |
| 8x1.5 | 30/0.25 | 33.4x7.0 | 380 | 13.3 | 13.7 | 50 | 300 |
| 8x2.5 | 49/0.25 | 41.6x8.2 | 555 | 7.98 | 8.21 | 50 | 300 |
| 10x1.5 | 30/0.25 | 40.3x7.0 | 465 | 13.3 | 13.7 | 50 | 400 |
| 10x2.5 | 49/0.25 | 50.4x8.2 | 680 | 7.98 | 8.21 | 50 | 400 |
| 12x1.5 | 30/0.25 | 48.3x70 | 565 | 13.3 | 13.7 | 50 | 400 |
| 12x2.5 | 49/0.25 | 60.5x8.2 | 820 | 7.98 | 8.21 | 50 | 400
|
Application
Industrial, Crane, hoist , lifting etc.
