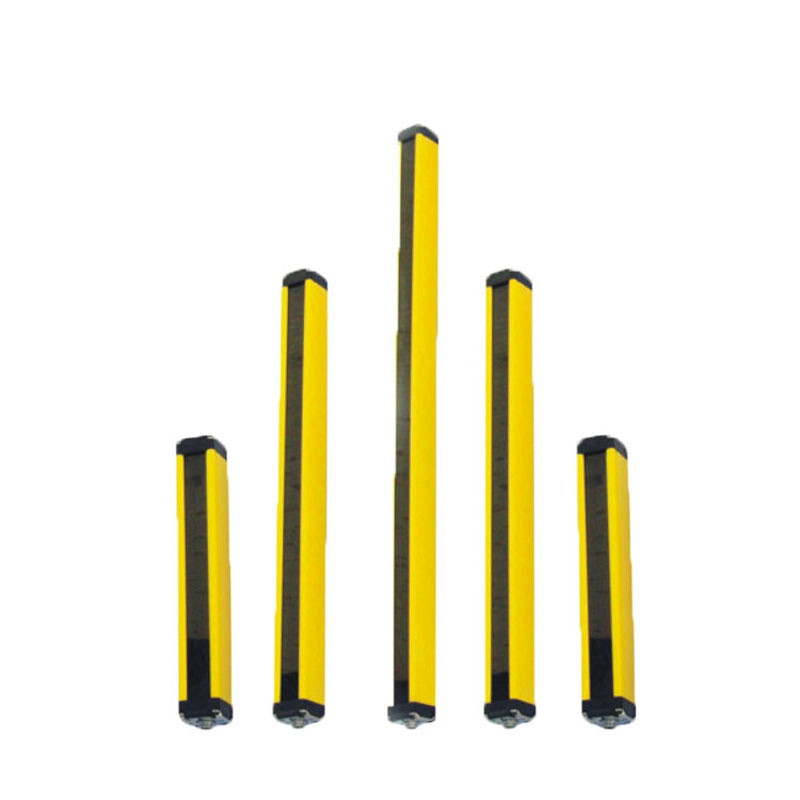

Safety Light Curtains Photoelectric Switch Gad20

Name: Safety Light Curtains Photoelectric Switch Gad20
Brand: all-electronics-online.com
SKU: 834492835
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GAD20
Optical Axis Distance:	10mm
Working Voltage:	DC10-30V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Type:	Photoelectric Switch
Production Process:	Flush or Non-Flush

Product Description

Photoelectric Sensors detect photo-optical workpieces. DESON provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers.

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model	Optical axis distance	Detection distance	Protection height	Optical axis number	Type of output
GAD20△-4	20mm	△1:0-3m △2:0-6m △3:0-12m	60mm	4	1=None(Controler output) 2=S(NPN/PNP output)
GAD20△-6	20mm		100mm	6
GAD20△-8	20mm		140mm	8
GAD20△-10	20mm		180mm	10
GAD20△-12	20mm		220mm	12
GAD20△-14	20mm		260mm	14
GAD20△-16	20mm		300mm	16
GAD20△-18	20mm		340mm	18
GAD20△-20△	20mm		380mm	20
GAD20△-22	20mm		420mm	22
GAD20△-24	20mm		460mm	24
GAD20△-26	20mm		500mm	26
GAD20△-28	20mm		540mm	28
GAD20△-30	20mm		580mm	30
GAD20△-32	20mm		620mm	32
GAD20△-34	20mm		660mm	34
GAD20△-36	20mm		700mm	36
GAD20△-38	20mm		740mm	38
GAD20△-40	20mm		780mm	40
GAD20△-42	20mm		820mm	42
GAD20△-44	20mm		860mm	44
GAD20△-46	20mm		900mm	46
GAD20△-48	20mm		940mm	48
GAD20△-50	20mm		980mm	50
GAD20△-52	20mm		1020mm	52
GAD20△-54	20mm		1060mm	54
GAD20△-56	20mm		1100mm	56
GAD20△-58	20mm		1140mm	58
GAD20△-60	20mm		1180mm	60
GAD20△-62	20mm		1220mm	62
GAD20△-64	20mm		1260mm	64
GAD20△-66	20mm		1300mm	66
GAD20△-68	20mm		1340mm	68
GAD20△-70	20mm		1380mm	70
GAD20△-72	20mm		1420mm	72

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
