Safety Mini Push Button Switch
| Price: |
US $ 0.36/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
V-16Z0-C400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Mini Push Button Switch |
| Current: |
16A |
| Operating Force: |
1n-4n |
| Manufacturer: |
Yes |
| Type: |
Normal Close |
| Usage: |
Control Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Yz |
| Certification: |
CQC CB TUV |
Product Description

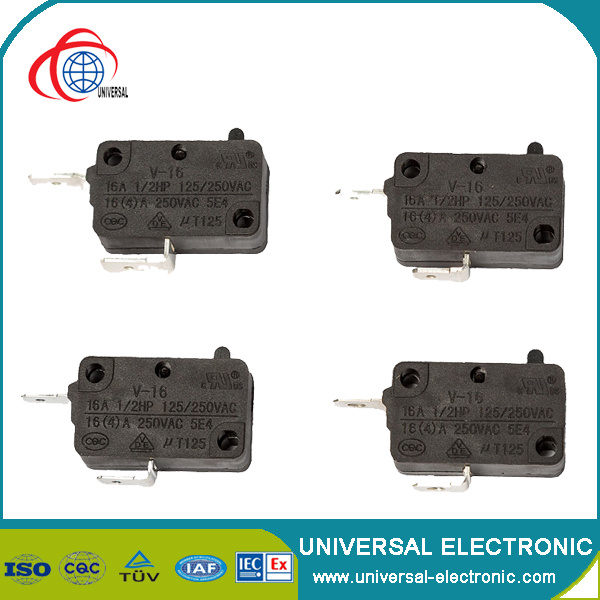

Safety Mini Push Button Switch

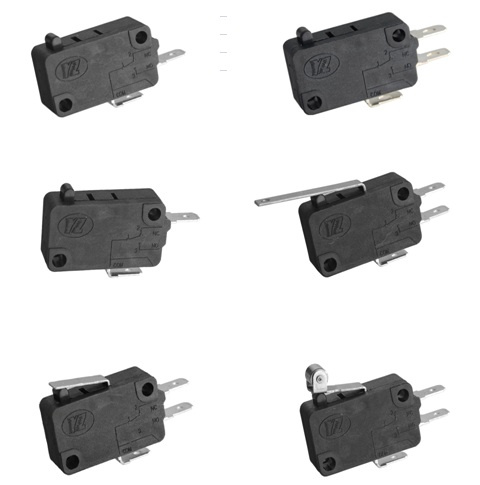

Specifications:- Actuator forms: Arc Lever
- Ratings: 4(16)A / 250(125)VAC
- Connect forms: SPDT
- Terminal types: 4.8*0.5 mm
- Ambient air temperature: 125°C
Characteristics:- (1)A variety of levers;
- (2)Long life, high reliability;
- (3)A variety of contact terminals;
- (4)Nice appearance, tight configuration;
- (5)Adopt thermosetting plastic or thermoplastic;
- (6)Small contact clearance, quick action, high sensitivity and small operating travel;
- (7)Variety of models with low operating force to high operating force are available.
Applications:Mainly used in home appliances, electronic equipment, automatic machine, car electron, apparatus, electric tool etc. Parameters: | Item | Value |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 30 cycles/min |
| Insulation Resistance | >=100 MΩ (500VDC) |
| Contact resistance | <=30mΩ(Initial value) |
| Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
| Between current-carrying metal,and ground(case),and between each terminal and non-carrying metal parts | AC3750V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Destruction: OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=100000 cycles |
| Degree of protection | IEC IP67 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125 Degree 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35 Degree) |
| Weight | Approx.5.95g(No lever) |
Model Naming and Meaning:1.Degree of
Temperature | No Mark:T125

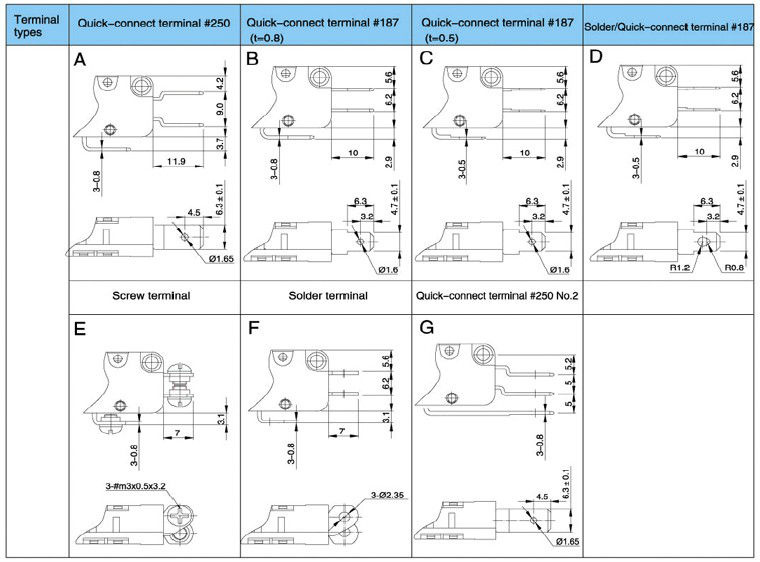

| 5.Terminal Types | A:250 Quick-connect Terminal
B:187 Quick-connect terminal(Thick:0.8)
C: 187 Quick-connect terminal(Thick:0.5)
D:Solder/187 common terminal
E:Screw terminal
F:Solder terminal
G:250 Quick terminal No.2
Y:Not standard terminal | |
2.Ratings
| 16:16(4)A250VAC/16A125VAC
1/2HP 125/250VAC
10:10(3)A250VAC/10A125VAC
6:6(2)A250VAC/6A125VAC
1:1(1)A250VAC/1A125VAC | |
6.(max)
Operating Force | 100:1N
150:1N
200:2N
250:3N
300:3N
400:4N | |
| 3.Connect Forms | Z:SPDT
K:SPST-NC
B:SPST-NO | |
| 7.Plunger specs | No mark:Standard Plunger
A: Middle Plunger
B: Long Plunger
C: Abnormality Plunger
Notice:If adopt other not standard plunger,the indicate with the new spec(confirmed by our company) | |
| 4.Acuator forms | 0: No lever
A 1/1:Short lever
A 2/2:Long lever
A 3/3:Middle lever
A 4/4:Short Roller lever
A 5/5:Long Roller lever
A 6/6: Arc lever
A / :Not standard lever
Note:
1) A indicate the lever near to the
Plunger,no A indicate the lever far
Away from the plunger.
2) If lever is amounted besides,add letter"B" after the lever code.
3) Indicate not standard lever | |
8.Additional Specis Numbers
Apply to:
| 1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement;
3) When the case is mot black, for example, grey shows as G;
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant | |

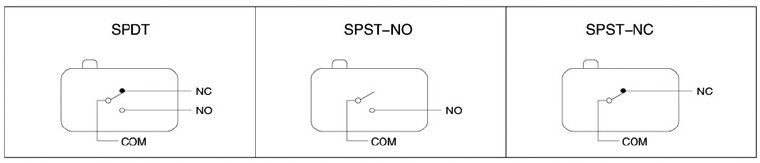

Connect Forms:
Connect Terminal Dimensions:
Certification:
Production Line:
Packaging:
Shipping:Shipping way: By sea,By air, DHL, FEDEX, UPS, TNT, EMS, CHINA POST AND SO ON. Contact:Una ChenXiamen Universal Electronic Co., Ltd. Website: www.xmyuzhou.com
