Safety Sf6 Gas Recovery Machine Unit Directly Fill to Sf6 Cylinder

Safety Sf6 Gas Recovery Machine Unit Directly Fill to Sf6 Cylinder
Price: US $ 3000-80000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ZPM
Breaking Capacity: High Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: SF6
Installation: Open Frame
Poles Number: 3
Certification: CCC

Product Description

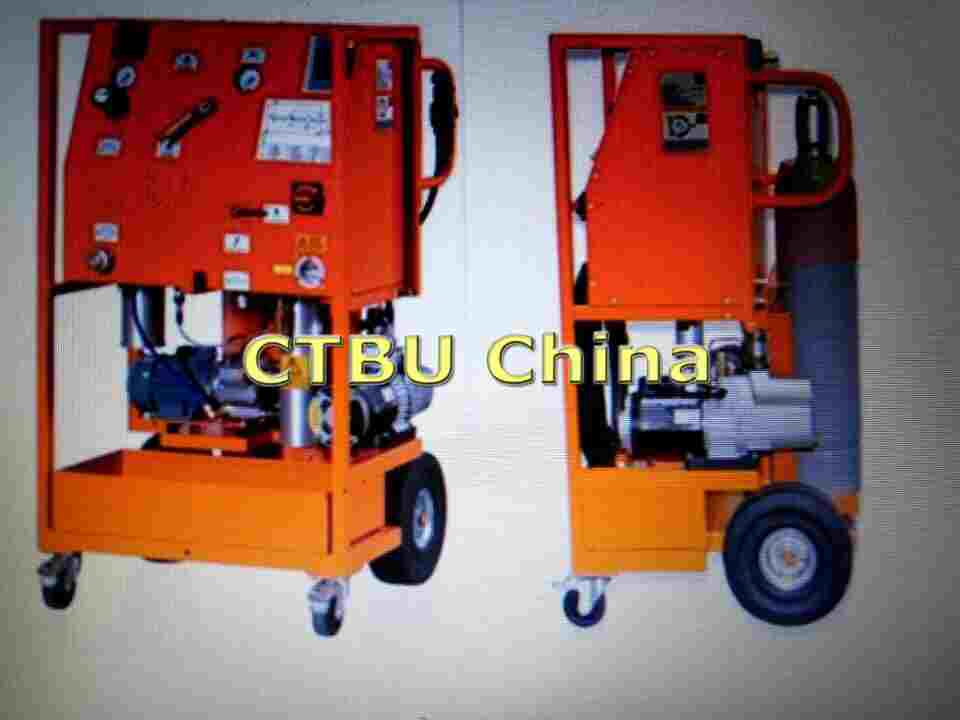

Model ZPM vacuum-pumping and gas filling  SF6 gas extraction device

Introduction
This is a special purpose device,which can be used to reclaim and purify sf6 gas from the sf6 gas insulated electric equipment by persons who manufacture,user or research into the equipment.This device also has the functions of vacuum-pumping and gas filling.

1.Model and Name

Device name:SF6 gas extraction device
Model: ZPM

2.Function
l vacuum pumping the sf6 switch and testing the limited vacuum.
l Back-filling the SF6 gas into the switch.
l Reclamation of the SF6 gas from the switch.
l Purification and drying treatment of the reclaimed SF6 GAS.
l Storage of the SF6 gas in pressure tank.
3.Main part
l vacuum pump
Model:2x-15A 55m3/H 0.06Pa or customized
l compressor
Model:CA-0300 12m3/H 25BAR or customized
l filter-driers
Model:EMERSON F-03 or customized
It is used to filter and dry the gas.There is a F-03 absorption activating and heating system.
l cooling system
Heat-exchanger,refrigerating compressor,air cooling unit.
l pressure tank
20kg+120L 3.8Mpa or customized
20KG+120Liter safety valve pressure 3.8MPa or customized
l valve
l ball-valve
l control system
l Using the control system,you can operate the device and monitor all the instruments.
l rubber hose
4.technical parameters
l Rate of vacuum:55M3/H limited vacuum:10Pa or customized
l rate of back-filling:12M3/H or customized
l rate of reclamation:15M3/H or customized
l SF6 reclamation percentage:95-98%end pressure:0.01MPa
l working environmental temperature:
  Upper limit:+45°C,lower limit:-10°C
l pressure tank:120KG 3.8MPa or customized
l first pressure of reclamation:8bar
l weight of the device:880KG
l power:three-phase 380V±10%,50HZ or customized
l Power:10kw or customized

Operating order
1Vacuum pumping of switches(start them in proper order):SF6 switch
 valve,V3,V4,vacuum pump(start and stop the V9 valve at a time)
Stop the machine(stop them in proper order):SF6 switch valve,V3,V4,vacuum pump V9
2reclaiming(start them in proper order):refrigerating compressor15-30Min,SF6switch valve,V3,V1,compressor,V6,
Stop the machine(stop them in proper order):SF6switch valve,V3,V1,compressor,V6,refrigerating compressor
3Filling gas with pressure(start them in proper order):SF6switch valve,V5,V2,V3,compressor
Stop the machine(stop them in proper order):V5,compressor,SF6switch valve,V3,V2,
4Tank filling gas(start them in proper order):SF6switch valve,V5,V1,V3(the flow of controlling gas pot valve should gas be in proper)(decompress filling gasV6,V2,V3)
Stop the machine(stop them in proper order):V5,V1,V3,SF6switch valve,
5Vacuum pumping of the machine(start them in proper order)vacuum pump,V1,V4,V6,V2,
Stop the machine(stop them in proper order):V6,V4,V2,VI,vacuum pump
6Activation disposal of filter adsorbent(start them in proper order):keep the power heater working for about an hour,vacuum pump,V4,V1,
Stop the machine(stop them in proper order):power heater,vacuum,V4,V1
attention:while the unit is not being used,all the valves should be closed.The pressure tank can not vacuum pump when there is gas pressure.
