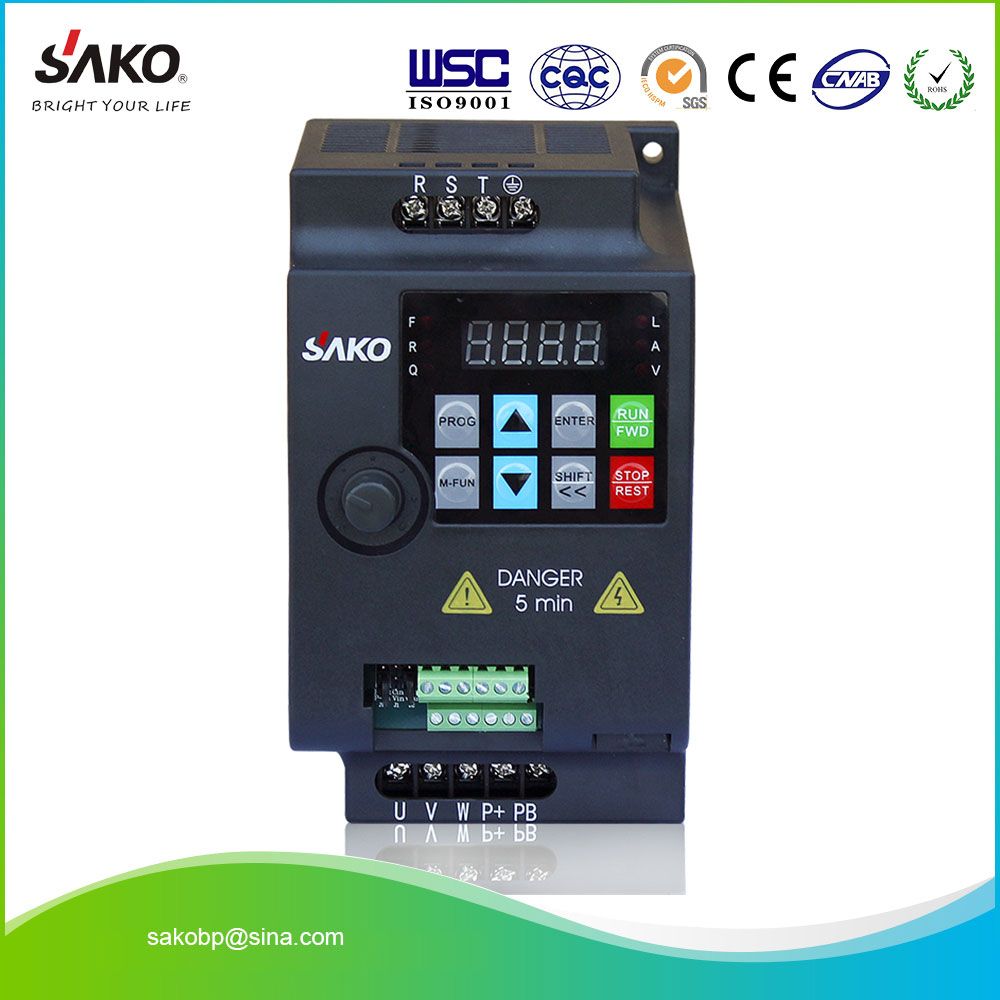

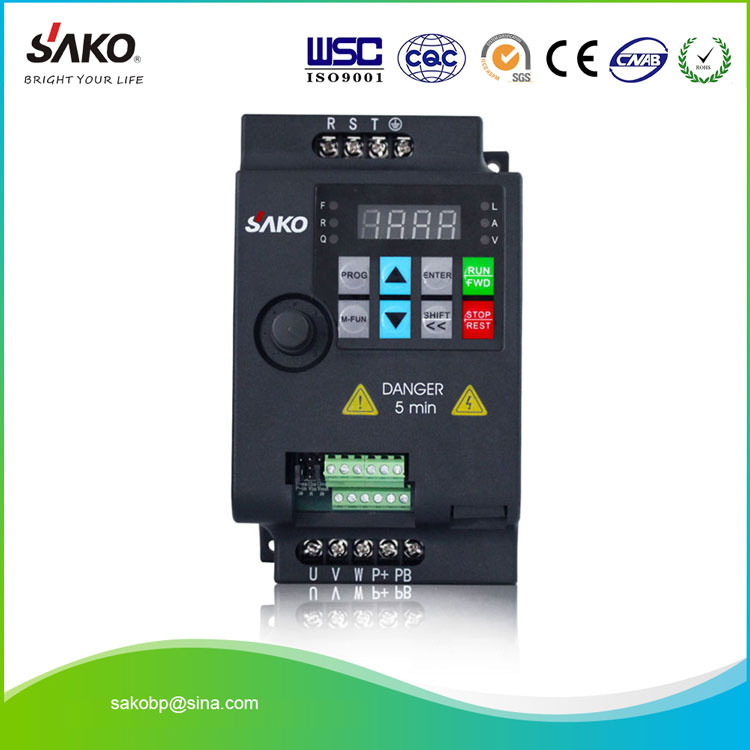

Sako 230V or 380V 2.2kw 3HP Mini VFD Variable Frequency Drive Inverter for Motor Speed Control

Name: Sako 230V or 380V 2.2kw 3HP Mini VFD Variable Frequency Drive Inverter for Motor Speed Control
Brand: all-electronics-online.com
SKU: 833875905
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 50-95/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SK680-2D2G-1/4
Output Current:	10A or 5A
Output Frequency:	0Hz~1000Hz
Output Voltage:	0-230V AC 3 Phase or 0-380V AC 3 Phase
Input Voltage:	230V AC 1 Phase or 380V AC 3 Phase
Package Weight:	1.5kgs
Product Size:	14285120mm
Rated Power:	2.2kw
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Voltage
Brand:	Sako

Product Description

Technical Features

Rated Power Range: 0.75KW~2.2KW/380V; 0.75KW~2.2KW/220V
Output Frequency Range: 0~400Hz
Control Mode: V/F Control
Overload Capability: G type, 60s with 150% of rated current, 5s with 180% of rated current; For 220% rated current, instantaneous protection.
PID control function
Multi-stage Speed Function: multi-stages speed could be set via PLC or connection port
Supporting multiple frequency setup methods: digital, PID and analog setup;
Speed Trace Function: smoothly restart the running motor
Automatic voltage regulation function(AVR)
Automatically keep the output voltage stable when input voltage fluctuating
Fault Protection: protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

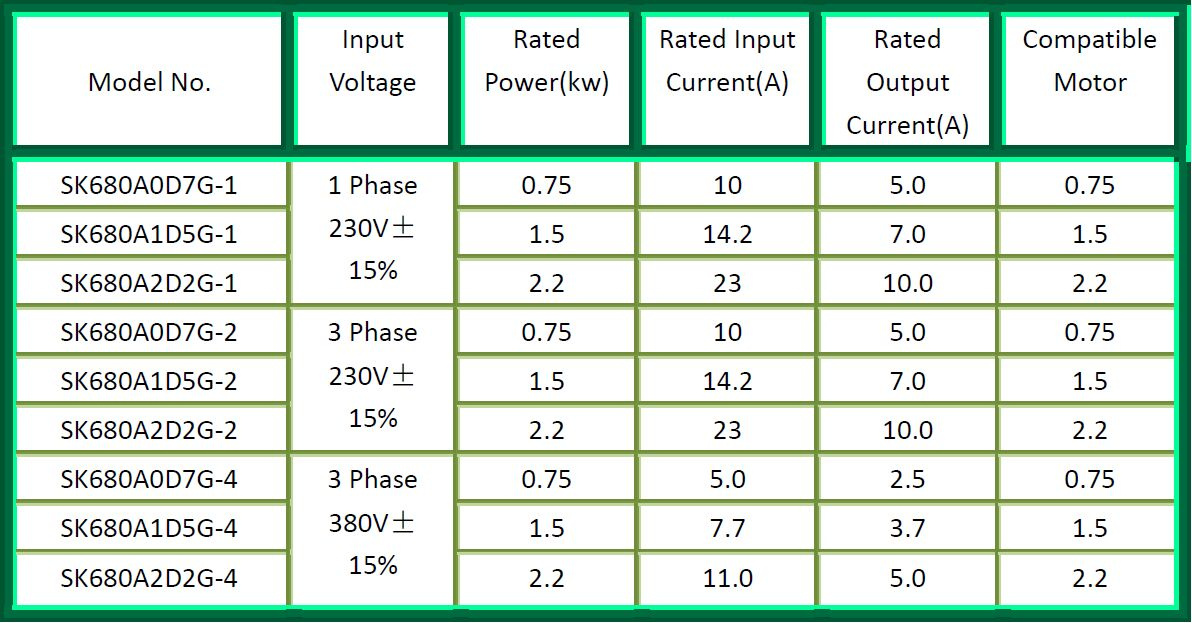

Technical Specification

SK600 series are high performance vector inverters. Our products are based on control system of high performance 32 bit digital signal processor (DSP), of which the control software integrates advanced current vector control technology and flux vector control technology. It realizes the speed control of AC motors, rated torque output by low frequency and stable operation.

SK600 series inverters are equipped with a variety of built-in control mode, protection and alarm function, which makes the operation data visual and has excellent control performance. Inverters can be used for driving a three-phase asynchronous motor and provide excellent driving function, meeting various transmission applications.

SK600 series inverters are with high integration, reasonable structure, complete protection function and high reliability; In the aspect of the hardware configuration, we use the leading domestic and foreign brands, to ensure the reliability of the product; In the aspect of software, our products fully meet customer maneuverability, meet more wide application demand and achieve the domestic leading level of similar products.
