Sale Cheap Digital Pressure Sensor
| Price: |
US $ 40-150/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
401A |
| Pressure Range: |
0-±0.2kpa~±100kpa;0-0.2kpa~400MPa |
| Accuracy Grade: |
0.1%Fs 0.2%Fs 0.5%Fs |
| Type: |
Diffused Silicon Pressure Transmitter |
| Thread Type: |
G1/2,M20*1.5,1/2NPT |
| Measuring Medium: |
Gas / Liquid / Steam |
| IP Rating: |
IP67 IP68 |
| Certification: |
ISO Ce RoHS Ex |
Product Description
Product Description

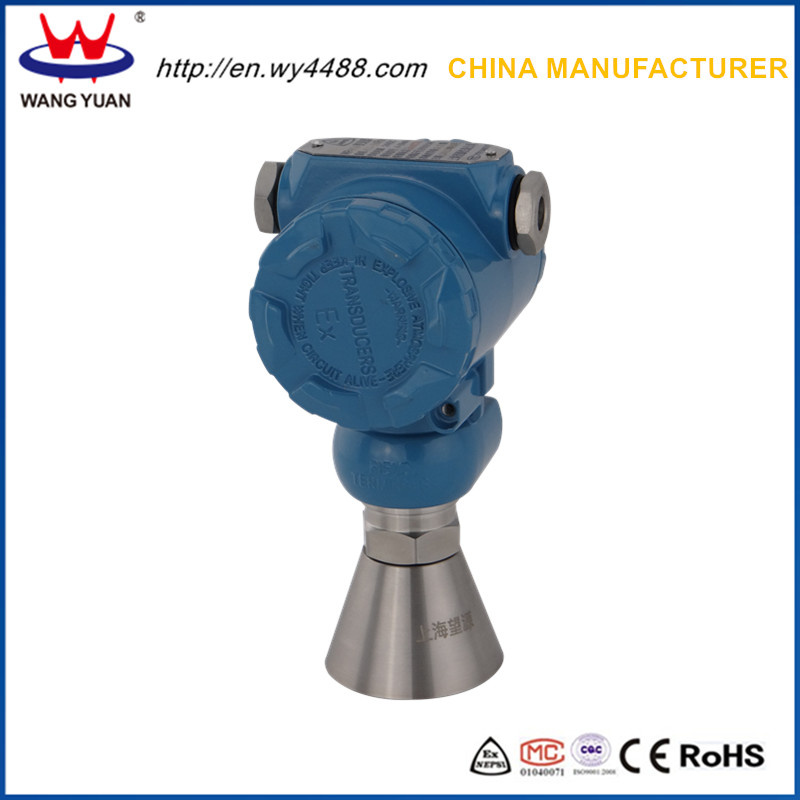

Sale cheap digital pressure sensor
Model: WP401A
Description
1. WP401A Sale cheap digital pressure sensor adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology.
2. The pressure transmitter is designed to work well under various conditions.
3. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transducer.
4. Various output signal 4-20mA (2-wire), strong anti-jamming, it is suitable for long distance transmission.
Features
Imported sensor component
Measure pressure of Corrosive medium
World-class pressure transmitter technology
Compact dimension design, strong
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
100% Linear meter is configurable
3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type :
Intrinsically safe comply with requirement of GB3836·4-83;
Flameproof comply with requirements of GB3836·2-83.
Specification
Name | Sale cheap digital pressure sensor |
Pressure range | 0-±0.2~±100kPa, 0 - 0.2kPa~400MPa |
Accuracy | 0.1%FS; 0.2%FS; 0.5 %FS |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Minus pressure (N). |
Process connection | G1/2,M20*1.5,1/4NPT,1/2NPT, Customized |
Electrical connector | Hirschmann(DIN), Cable, Bendix connector(5PIN,4PIN) |
Output signal | 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V); 0-20mA(0-10V) |
Power supply | 24V DC |
Compensation range | -10~70ºC |
Operation temperature | -40~85ºC |
Material | Housing: SUS304 |
Wetted part: SUS304/ SUS316L/ Teflon |
Media | gas, air, liquids, weak corrosive gas |
Indicator (local display ) | 3 1/2 LCD, 3 1/2 LED indicator, |
Maximum pressure | Measurement upper limit | Overload | Long term stability |
<50kPa | 2~5 times | <0.5%FS/year |
≥50kPa | 1.5~3 times | <0.2%FS/year |
Note: When range <1kPa, only no corrosion or weak corrosive gas can be measured. |
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.
In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
