| Prod Model: |
S900 variable speed drive |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Grade: |
220V;440V |
| Output Rated Current: |
1.6~8.2A |
| Input Current: |
4.9~9A |
| Output Frequency Range: |
0.1~400Hz |
| Control Mode: |
V/F Curve |
| Outside Package: |
Standard Exported Package |
| Inner Package: |
Stretch Film |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Sanch |
Product Description

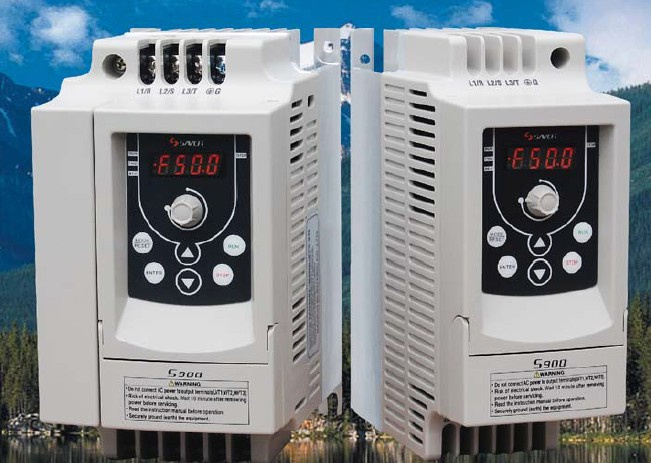

Sanch S900 Frequency inverter
china type inverter Position
S900 is developed from S800, whose advantages, such as compact size but multi-function, fast calculation speed, large torque in low speed, low noise and low heat, makes them be our hot sell. And it is the series that we have been doing ODM for a international famous electric company from Japan from 2012.
| Input voltage level | | |
| Type S900-2S/4T G | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 |
| Output | Max applicable motor output power(kW) | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 |
| Max applicable motor output power(HP) | 0.25 | 0.5 | 1 | 2 | 3 | 0.5 | 1 | 2 | 3 | 5 |
| Output rated capacity(kVA) | 0.6 | 1 | 1.9 | 2.5 | 4.2 | 1.2 | 2.3 | 3.2 | 4.2 | 6.3 |
| Output rated current (A) | 1.6 | 2.5 | 4.2 | 7.5 | 11 | 1.5 | 2.5 | 4.2 | 5.5 | 8.2 |
| Output frequency range | 0.1 to 400Hz |
| Overload capacity | 150% of rated output current and running for 60s |
| Input | Phase,voltage,frequency | Single phase 200~240V,50/60Hz | Three phase 380~460V,50/60Hz |
| Allowable changing range for Voltage and Frequency | Voltage: ±10%, Frequency: ±5% |
Variable Frequency Drives Variable Speed Drives Frequency Converters AC converters
Frequency Inverters AC Drivers AC Drives AC Motor Drives VFD VSD Transistorized Drives
Notes:
1.NPN and PNP mode
Set as NPN mode in factory, short circuit jumper is connected to 1st and 2nd pin in J2 PIN, the common terminal of external terminal input signal is DCM. When short circuit jumper is connected to 2nd and 3rd pin of J2 PIN, it is PNP mode, the common terminal of external terminal input signal is +24V.
2.AVI/ACI terminal application
(DC0~+10V) and (DC4~20mA) analog quantity input share the same AVI/ACI terminal. Set as AVI analog voltage input in factory, short circuit jumper is connected to 1st and 2nd pin in J5 PIN. When ACI analog current input should be used, please connect short circuit jumper to 2nd and 3rd pin of J5 PIN.
Company Information
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business .
With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers.
At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers.
We try to provide wisdom, individual product solution.
| FAQ | |
| Q | A |
| payment term? | We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH |
| delivery time ? | About 1 week. |
| standard of package? | Export standard package or special package according to customer requirement |
| Do you accept OEM business | We accept OEM with your autherization. |
| What`s your support | 12 warranty ; Technical support ;Sample testing support at the scene |
We looking forward to cooperate with you !
