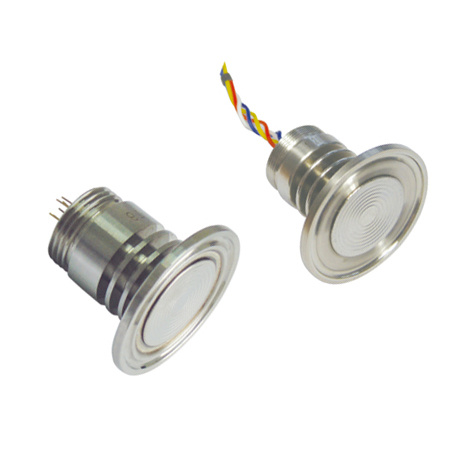

Sanitary Piezoresistive Silicon Pressure Sensor (PC12K)

Name: Sanitary Piezoresistive Silicon Pressure Sensor (PC12K)
Brand: all-electronics-online.com
SKU: 665701682
Availability: InStock
Rating: 4.8 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC12K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	-100kpa...0~35kpa...10MPa
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Zero Output:	±2mv
Span Output:	≥40mv (≤35kpa); ≥60mv (Other Ranges)
Accuracy:	±0.25%F.S. (Typical)
Excitation:	1.5mA
Operating Temp.:	-40ºC-125ºC
Input Impedance:	2KΩ-5KΩ
Oil Filling:	M20
Housing And Diaphragm:	316L

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS technology
Clamp diameter: 50.4mm, 64mm

PC12K sanitary pressure sensor is designed for sanitary industry application. A high sensitivity silicon pressure chip is employed in the transducer. The housing is filled with olive oil/M20 for pressure transmission.

Caution
1. Please do not touch the diaphragm by finger and other hard objects, or it may be damaged.

2. The sensor filled with olive oil is for sanitary application. It cannot work when the temperature is lower than 0ºC, because the olive oil will freeze lower than 0ºC.

Pressure range
Pressure range	-100kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa (bar and psi unit available)
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	300%F.S.(≤70KPa) \| 200%F.S.(<10MPa)
Output signal
Zero output	±2mV
Span output	≥40mV (≤35kPa); ≥60mV (Other ranges)
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.25%F.S. (Typical)
Excitation	1.5mA
Compensated temp.	0ºC-60ºC (≤35kPa); -10ºC-70ºC (Other ranges)
Operating temp.	-40ºC-125ºC
Storage temp.	-40ºC-125ºC
Zero temp. coefficient	0.02%F.S./ ºC (≥100kPa) \| 0.04%F.S. / ºC(<100kPa)
Span temp. coefficient	0.02%F.S. / ºC(≥100kPa) \| 0.04%F.S. / ºC(<100kPa)
Insulation resistance	>200Mohm/250VDC
Input impedance	2kΩ-5kΩ
Vibration	20g (20-5000Hz)
Oil filling	M20
O-ring	NBR, Viton
Housing and diaphragm	Stainless steel 316L
Wire connection	4 wire (typical) \| 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing
Pin connection	Kovar pin (0.6um Gold platted)
Weight	200g(approx..)

Nanjing Wotian Technology Co., Ltd. Was established in 2005, specializing in the production of pressure sensors. It is the leading domestic manufacturer of pressure sensors, with existing staff 260. The annual production of pressure sensors is more than 100 million. The products have been exported to more than 60 countries and regions. Wotian has established companies in Germany, United States and South Korea. The company has factories in Nanjing and Anshan, and is headquartered in the scenic Jiulong Lake International Headquarters Base in Nanjing. The foreign trade team is located in Shenyang, the center of Northeast Heavy Industry Base.

"Create value for customers" is always the goal pursued by the company. As a well-known brand in domestic pressure sensor industry, Wotian has always been taking rejuvenating China's pressure sensor business as its mission, working diligently and step by step, striving to produce superlative pressure sensors and provide customers with the ultimate cost-effective pressure sensors.

The idea of "continuous improvement" has been deeply rooted among Wotian people who take "lean thinking" as the fundamental theory of production management. Wotian people believe in dream, integrity, honesty and goodness. Wotian has always been "responsible for trust", behaving as a conscientious enterprise contributing to social progress and people's well-being.
